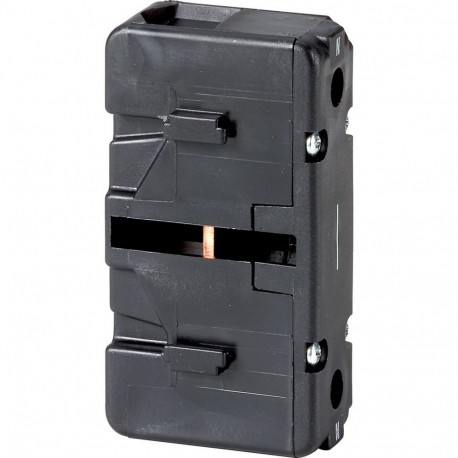

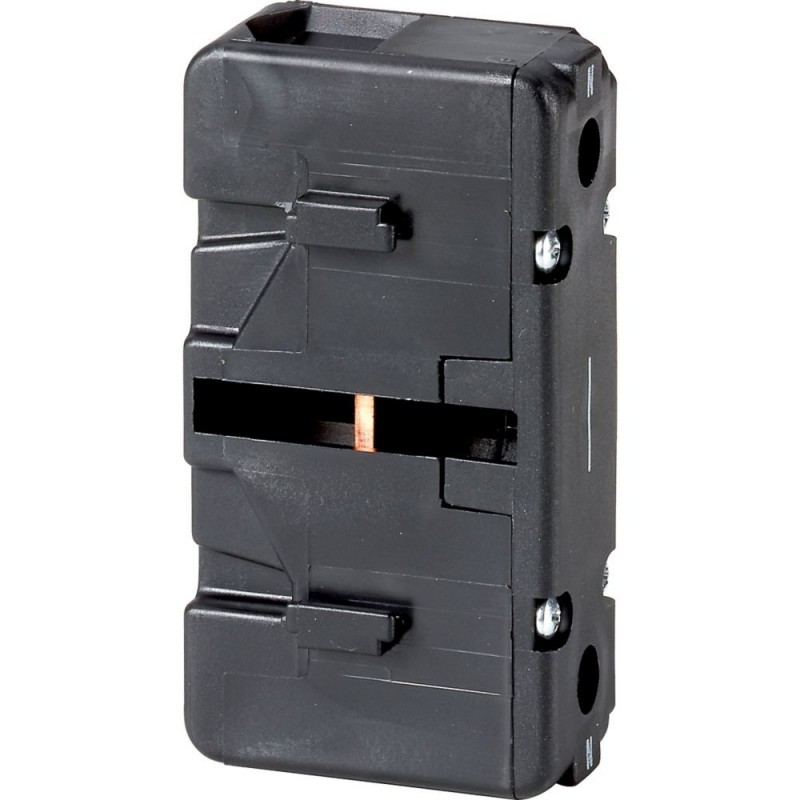

QMEARTH80/100 1319869 Y8-1319869 EATON ELECTRIC Borne PE
, QM80/100 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

QMEARTH80/100 1319869 Y8-1319869 EATON ELECTRIC Borne PE
, QM80/100

QMEARTH80/100

1319869

Y8-1319869

EATON-MOELLER

Borne PE
, QM80/100

QMEARTH80/100

Eaton QM Protective conductor terminal, QM80/100

Borne à conducteur de protection QM 80, QM 100

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

DUMECO Interrupteurs-sectionneurs

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $14.50
Prix unitaire: $14.50
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton QM Accessory Protective conductor terminal
Catalog Number
1319869
Model Code
QMEARTH80/100
EAN
8711426500488
Product Length/Depth
160 mm
Product Height
10 mm
Product Width
100 mm
Product Weight
0.1 kg
Compliances
CE

Spécifications du produit

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
8 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
Mounting method
Side mounting

ETIM for 1319869 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
QMEARTH80/100 Y8-1319869 1319869 ES_1319806.pdf 2 Mbytes QMEARTH80/100 Y8-1319869 1319869 ES_1319806.pdf
