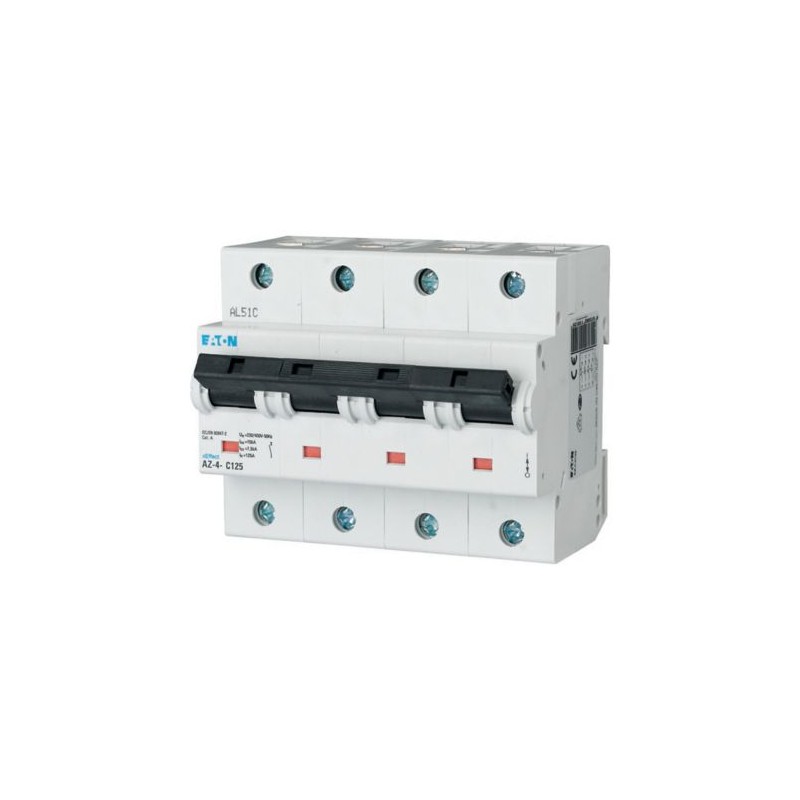

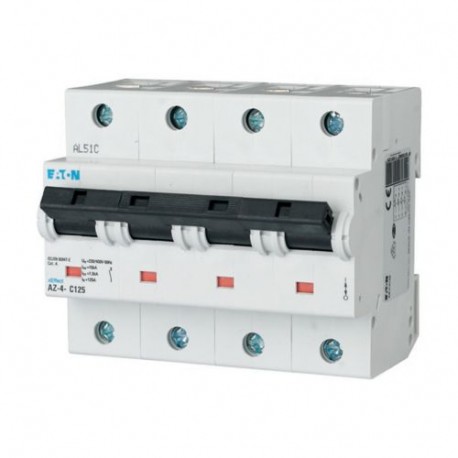

AZ-4-C80 211802 Y7-211802 EATON ELECTRIC Disjoncteur modulaire, 80A, 4p, courbe C
AZ-4-C80
211802
Y7-211802
EATON-MOELLER
Disjoncteur modulaire, 80A, 4p, courbe C
AZ-4-C80
Eaton Moeller series xEffect - AZ MCB. Miniature circuit breaker (MCB) AZ, 4 pole, Tripping characteristic: C, Rated current In: 80 A
Disjoncteur miniature (MCB) AZ, 4 pôles, Caractéristique de déclenchement : C, Courant nominal d’entrée : 80 A, Appareillage de commutation pour applications industrielles et commerciales avancées
Appareils de protection des installations, des équipements et des personnes > Disjoncteur
Appareillage Modulaire - Industriel
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller series xEffect - AZ MCB
Catalog Number
211802
Model Code
AZ-4-C80
EAN
4015082118020
Product Length/Depth
90 mm
Product Height
75 mm
Product Width
108 mm
Product Weight
0.919 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947-2
EN45545-2
IEC 61373
EN45545-2
IEC 61373
Delivery program
Application
Number of poles
Four-pole
Number of poles (total)
4
Number of poles (protected)
4
Tripping characteristic
C
Release characteristic
C
Amperage Rating
80 A
Type
- AZ
- Miniature circuit breaker
Technical data - electrical
Voltage type
AC
Voltage rating
230 V AC / 400 V AC
Voltage rating at DC
60 V DC (per pole)
Rated operational voltage (Ue) - max
400 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating - min
50 Hz
Frequency rating - max
60 Hz
Rated switching capacity (IEC/EN 60947-2)
20 kA
Operational switching capacity
20 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
0 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
0 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
20 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
20 kA
Admissible back-up fuse - max
200 A gL/gG
Selectivity class
3
Overvoltage category
III
Pollution degree
2
Lifespan, electrical
10000 operations
Direction of incoming supply
As required
Technical data - mechanical
Frame
45 mm
Enclosure width
90 mm
Width in number of modular spacings
6
Built-in depth
75 mm
Mounting width per pole
27 mm
Mounting width
27 mm
Mounting Method
Top-hat rail IEC/EN 60715
Degree of protection
IP20
IP40 (when fitted)
IP40 (when fitted)
Terminals (top and bottom)
Lift terminals
Connectable conductor cross section (solid-core) - min
2.5 mm²
Connectable conductor cross section (solid-core) - max
50 mm²
Connectable conductor cross section (multi-wired) - min
2.5 mm²
Connectable conductor cross section (multi-wired) - max
50 mm²
Terminal capacity (control cable)
2.5 mm² - 50 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
80 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
28.6 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Current limiting class
3
Features
Concurrently switching N-neutral
Additional equipment possible
Additional equipment possible
Special features
Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Used with
AZ
Miniature circuit breaker
Miniature circuit breaker
| Caractéristique | Valeur |
|---|---|
| Profondeur d'encastrement (EF000218) | 75 mm |
| Caractéristique de déclenchement (EF000889) | C |
| Nombre de pôles (total) (EF008618) | 4 |
| Nombre de pôles protégés (EF005548) | 4 |
| Courant nominal assigné (EF000227) | 80 A |
| Tension assignée (EF000228) | 400 V |
| Tension d'isolation assignée Ui (EF001366) | 440 V |
| Tension nominale de tenue aux chocs Uimp (EF011980) | 4 kV |
| Pouvoir de coupure assigné Icn selon EN 60898 à 230 V (EF009556) | 0 kA |
| Type de tension (EF000187) | CA |
| Pouvoir de coupure assigné Icn selon EN 60898 à 400 V (EF009555) | 0 kA |
| Pouvoir de coupure assigné Icu selon IEC 60947-2 à 230 V (EF009557) | 20 kA |
| Pouvoir de coupure assigné Icu selon IEC 60947-2 à 400 V (EF009558) | 20 kA |
| Fréquence (EF000416) | 50 Hz |
| Classe de limitation d'énergie (EF002568) | 3 |
| Montage encastré (EF007517) | Non |
| Conducteur neutre branché simultanément (EF005997) | Oui |
| Catégorie de surtension (EF002569) | 3 |
| Degré de pollution (EF002570) | 2 |
| Dispositifs auxiliaires possibles (EF008148) | Oui |
| Largeur dans les unités de partition (EF002950) | 6 |
| Classe de protection (IP) (EF005474) | IP20 |
| Température ambiante en fonctionnement (EF007515) | -25 °C |
| Section de conducteur connectable multifilaire (EF007343) | 2.5 mm² |
| Section de conducteur connectable monofilaire (EF007337) | 2.5 mm² |
| Antidéflagration (EF004663) | Non |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AZ-4-C80 Y7-211802 211802 ES_211798.pdf | 71 Kbytes |
|
