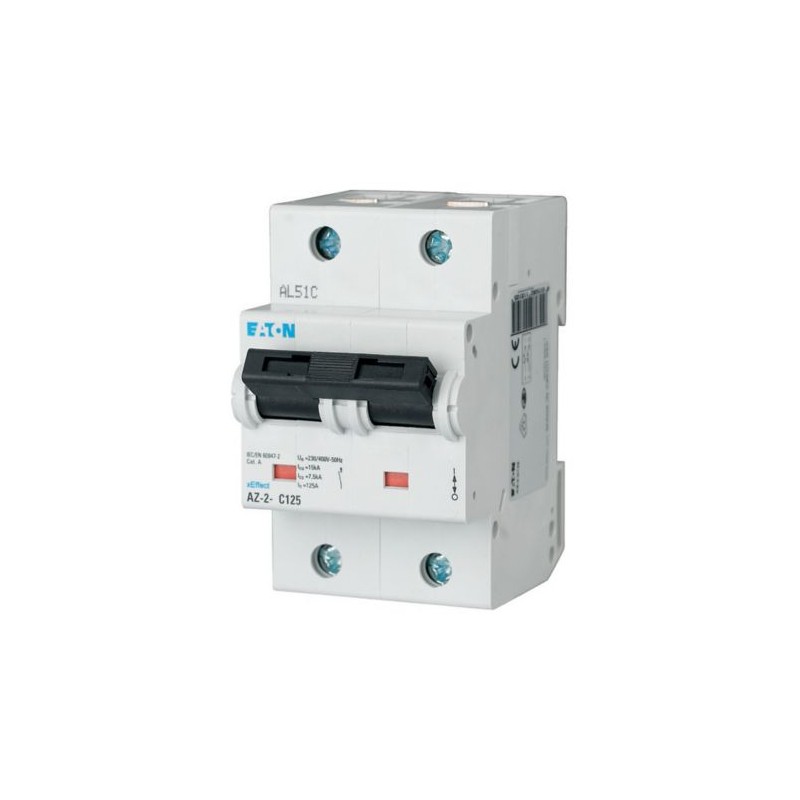

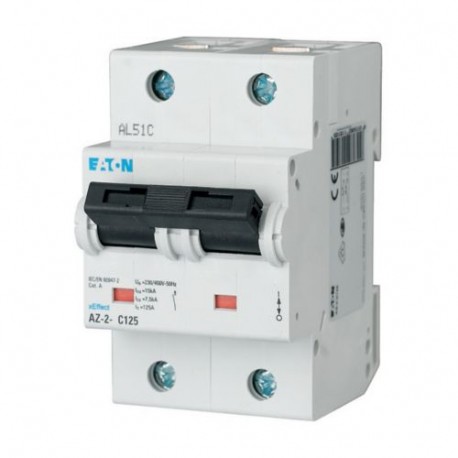

AZ-2-D100 211827 Y7-211827 EATON ELECTRIC Disjoncteur modulaire, 100A, 2p, courbe D Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

AZ-2-D100 211827 Y7-211827 EATON ELECTRIC Disjoncteur modulaire, 100A, 2p, courbe D

AZ-2-D100

211827

Y7-211827

EATON-MOELLER

Disjoncteur modulaire, 100A, 2p, courbe D

AZ-2-D100

Eaton Moeller series xEffect - AZ MCB. Miniature circuit breaker (MCB), 100A, 2p, D-Char

Plus de détails


Appareils de protection des installations, des équipements et des personnes > Disjoncteur

Appareillage Modulaire - Industriel

* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $230.29
Prix unitaire: $230.29

Quantité Prix
1+$230.29
2+$217.47
*Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

En savoir plus



Spécifications générales

Product Name
Eaton Moeller series xEffect - AZ MCB
Catalog Number
211827
Model Code
AZ-2-D100
EAN
4015082118273
Product Length/Depth
90 mm
Product Height
75 mm
Product Width
54 mm
Product Weight
0.462 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947-2
EN45545-2
IEC 61373

Delivery program

Application
Number of poles
Two-pole
Number of poles (total)
2
Number of poles (protected)
2
Tripping characteristic
D
Release characteristic
D
Amperage Rating
100 A
Type
  • AZ
  • Miniature circuit breaker

Technical data - electrical

Voltage type
AC
Voltage rating
230 V AC / 400 V AC
Voltage rating at DC
60 V DC (per pole)
Rated operational voltage (Ue) - max
400 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating - min
50 Hz
Frequency rating - max
60 Hz
Rated switching capacity (IEC/EN 60947-2)
15 kA
Operational switching capacity
20 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
0 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
0 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
15 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
15 kA
Admissible back-up fuse - max
200 A gL/gG
Selectivity class
3
Overvoltage category
III
Pollution degree
2
Lifespan, electrical
10000 operations
Direction of incoming supply
As required

Technical data - mechanical

Frame
45 mm
Enclosure width
90 mm
Width in number of modular spacings
3
Built-in depth
75 mm
Mounting width per pole
27 mm
Mounting width
27 mm
Mounting Method
Top-hat rail IEC/EN 60715
Degree of protection
IP40 (when fitted)
IP20
Terminals (top and bottom)
Lift terminals
Connectable conductor cross section (solid-core) - min
2.5 mm²
Connectable conductor cross section (solid-core) - max
50 mm²
Connectable conductor cross section (multi-wired) - min
2.5 mm²
Connectable conductor cross section (multi-wired) - max
50 mm²
Terminal capacity (control cable)
2.5 mm² - 50 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274

Design verification as per IEC/EN 61439 - technical data

Rated operational current for specified heat dissipation (In)
100 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
18.3 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Additional information

Current limiting class
3
Features
Additional equipment possible
Special features
Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

ETIM for 211827 Appareils de protection des installations, des équipements et des personnes (EC000042)
Caractéristique Valeur
Profondeur d'encastrement (EF000218) 75 mm
Caractéristique de déclenchement (EF000889) D
Nombre de pôles (total) (EF008618) 2
Nombre de pôles protégés (EF005548) 2
Courant nominal assigné (EF000227) 100 A
Tension assignée (EF000228) 400 V
Tension d'isolation assignée Ui (EF001366) 440 V
Tension nominale de tenue aux chocs Uimp (EF011980) 4 kV
Pouvoir de coupure assigné Icn selon EN 60898 à 230 V (EF009556) 0 kA
Type de tension (EF000187) AC
Pouvoir de coupure assigné Icn selon EN 60898 à 400 V (EF009555) 0 kA
Pouvoir de coupure assigné Icu selon IEC 60947-2 à 230 V (EF009557) 15 kA
Pouvoir de coupure assigné Icu selon IEC 60947-2 à 400 V (EF009558) 15 kA
Fréquence (EF000416) 50 Hz
Puissance dissipée (EF005387) None W
Classe de limitation d'énergie (EF002568) 3
Montage encastré (EF007517) false
Conducteur neutre branché simultanément (EF005997) false
Catégorie de surtension (EF002569) 3
Degré de pollution (EF002570) 2
Dispositifs auxiliaires possibles (EF008148) true
Largeur dans les unités de partition (EF002950) 3
Classe de protection (IP) (EF005474) IP20
Température ambiante en fonctionnement (EF007515) -25 °C
Section de conducteur connectable multifilaire (EF007343) 2.5 mm²
Section de conducteur connectable monofilaire (EF007337) 2.5 mm²
Antidéflagration (EF004663) false
