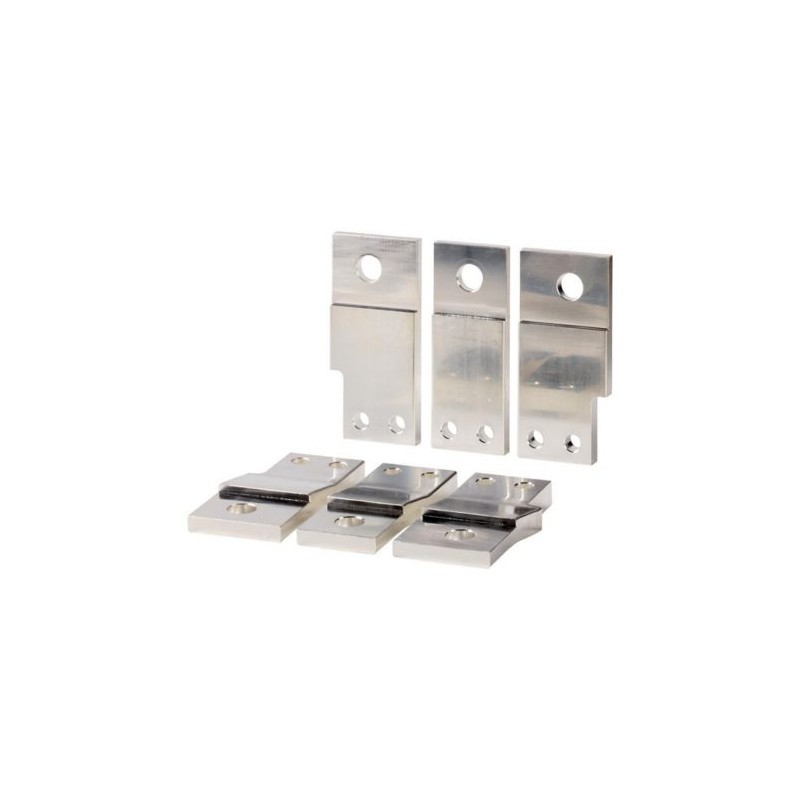

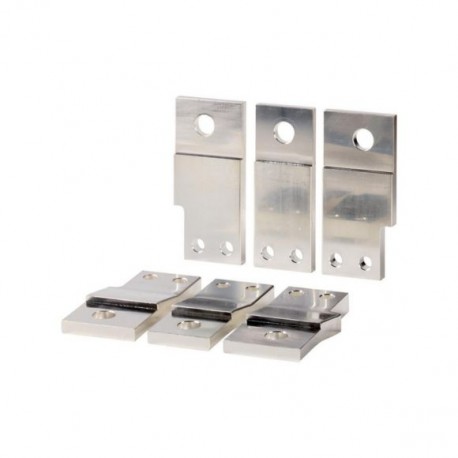

NZM4-XAS12-1000 285612 Y7-285612 EATON ELECTRIC Adaptateurs, 630A/800A/1000A, NZM4/NZM12 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

NZM4-XAS12-1000 285612 Y7-285612 EATON ELECTRIC Adaptateurs, 630A/800A/1000A, NZM4/NZM12

NZM4-XAS12-1000

285612

Y7-285612

EATON-MOELLER

Adaptateurs, 630A/800A/1000A, NZM4/NZM12

NZM4-XAS12-1000

Eaton Moeller series NZM - Molded Case Circuit Breaker. Adapter set, 630A/800A/1000A, NZM4/NZM12

Plus de détails


Appareillage industriel basse tension > Élargisseur de connexion de phases

Commutateurs automatiques à boîtier moulé NZM

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $504.11
Prix unitaire: $504.11
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller series NZM connection type
Catalog Number
285612
Model Code
NZM4-XAS12-1000
EAN
4015082856120
Product Length/Depth
578.5 mm
Product Height
186.5 mm
Product Width
210 mm
Product Weight
6.394 kg
Compliances
IEC
RoHS conform

Spécifications du produit

Type
AccessoryConnection adapter setTerminal
Amperage Rating
≦ 1000 A
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Used with
NZM4
Suitable for
Three-pole
Number of poles
Three-pole

Datasheet - PDF

▲
Titre: Taille: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZM4-XAS12-1000 Y7-285612 285612 ES_266473.pdf 2 Mbytes NZM4-XAS12-1000 Y7-285612 285612 ES_266473.pdf
