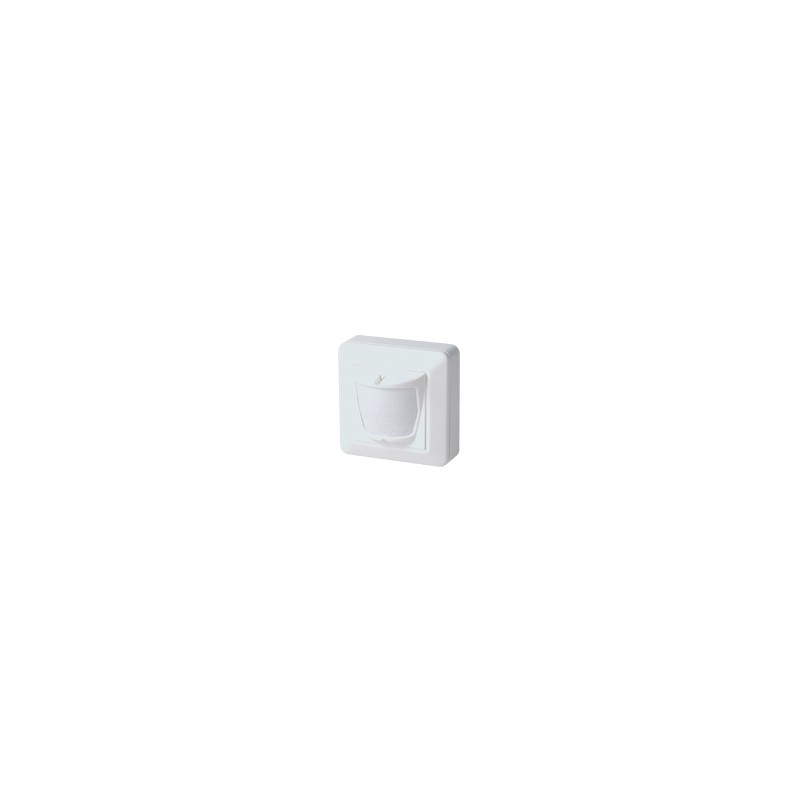

PIR Sensor
Type G 8510 1127
Du line®
Fieldbus Installationbus
• Passive infrared detector (PIR)
• Detects movement by e.g. a person
• Indoor applications
• Dupline® output
• Operating distance: 0 - 10 m
• Operating angle: 90° (10m)
• Walk test: LED indication on I/O 5
• Switch for NO/NC, transmitting channel output
• Channel coding by GAP 1605
• Supplied by Dupline®
Product Description Ordering Key
G 8510 1127
Non-powered Dupline® pas- sive infrared detector with built-in transmitter. For
detection of movement by e.g. a person. Used for burglar alarm, light control etc.
Dupline®
Type
Type Selection
Supply Ordering no.
1 channel, PIR detector
By Dupline® G 8510 1127
Input Specifications
Inputs
I/O number 1 PIR
Lens Dual detecting zones
Segments 24
Levels 3
Angle 90° Operating distance ≤10 m
(see radiation diagram) Wave length 7 to 14 µm
Input detection speed 0.5 to 5 pulses/s
Default channel status
Switch OFF (Position P) NO Switch ON (Position A) NC
I/O number 2 Status signal
(Allways active when a channel is coded to I/O 2)
General Specifications
Power ON delay Typ. 1 min. It is therefore advisable to keep the unit connected to Dupline®
Walk test indication LED, red
Environment
Degree of protection IP 40
For indoor applications
Operating temperature -10 to +50°C (+14 to +122°F) Storage temperature -30 to +70°C (-22 to +158°F)
Connection Screw terminals
Max. wires in terminals 4 x 0.75 mm2
Terminal D+ Signal
Terminal D- Common
Material
Housing Colour Off-white
Lens Polyethylene
Dimensions (W x H x D) 84 x 84 x 48 mm
Weight Approx. 150 g
Wiring Diagram
Supply Specifications
Power supply Supplied by Dupline®
Rated operational current
LED OFF < 1.5 mA Rated operational current
LED ON < 3 mA
D+ D-
Specifications are subject to change without notice (26.11.2007) 1
Dupline® is a registered trademark. A product of the CARLO GAVAZZI Group
