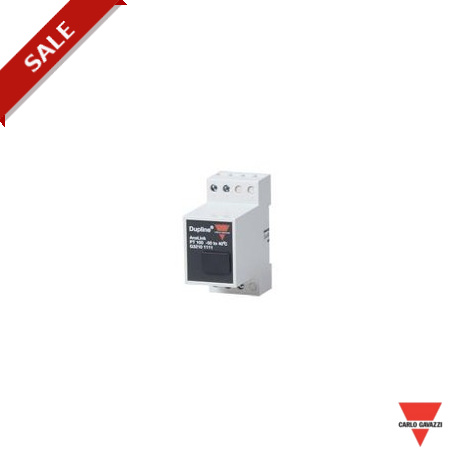

G32101113 CARLO GAVAZZI Paramètres sélectionnés TYPE DE MODULE Module d'entrée BOÎTIER rail DIN ALIMENTATION..

Transmitter for Analog Pt-100
Temperature Signal
Types G 3210 1111, G 3210 1112, G 3210 1113
Du line®
Fieldbus Installationbus
• AnaLink transmitter for 3-wire Pt-100 input
• Built-in cable compensation
• Built-in signal linearization
• Temperature range:
G 3210 1111: -50 to +40°C (-58 to +104°F)
G 3210 1112: +30 to +120°C (+86 to +248°F) G 3210 1113: -10 to +100°C (+14 to 212°F)
• Uses only one channel
• Supplied by Dupline®
• Channel coding by GAP 1605
• H2-housing
• For mounting on DIN-rail in accordance with EN 50 022
Product Description Ordering Key
G 3210 1111
AnaLink transmitter for con- nection of external 3-wire Pt-
100 temperature transducer. The module measures the temperature and transmits the value to the controller G
3890 0030, in which the tem- peratures from all transmit-
ters are logged and printed out and/or read from a PC.
The module is supplied by the Dupline® signal which means easy installation and flexibility for future expansion.
Type: Dupline® H2 Housing Temperature range
Type Selection
Supply: Ordering no. Ordering no. Ordering no.
Range: -50 to +40°C Range: +30 to +120°C Range: -10 to +100°C
By Dupline® G 3210 1111 G 3210 1112 G 3210 1113
Input Specifications
Signal input 3-wire Pt-100
Temperature range G 3210 1111: -50 to +40°C G 3210 1112: +30 to +120°C G 3210 1113: -10 to +100°C
Resolution 8 bits (~0.35°C/LSB)
(G3210 1113: (0.43°C/LSB)) Inaccuracy ≤ 0.5°C (G32101113: ± 0.6°C)
(ambient temperature
G 3210 111.: 25°C) Temperature drift ≤ 0.02°C/°K
(Δ ambient temperature
G 3210 111.) Cable length ≤ 5 m
Response time 256 pulse trains
(~18 s @ 64 ch.)
Supply Specifications
General Specifications
Channel programming By GAP 1605
Channel assignment 1 channel
freely programmable
Environment
Degree of protection IP 20
Pollution degree 3 (IEC 60664)
Operating temperature 0 to +50°C (+32 to +122°F) Storage temperature -50 to +85°C (-58 to +185°F)
Humidity (non-condensing) 20 to 80% RH
Mechanical resistance
Shock 15 G (11 ms) Vibration 2 G (6 to 55 Hz)
Dimensions
Material
(See Technical Information) H2-housing
Weight 90 g
Current consumption ≤ 1.8 mA (from Dupline®)
Power dissipation ≤ 10 mW
Specifications are subject to change without notice (30.11.2006) 1
Dupline® is a registered trademark. A product of the CARLO GAVAZZI Group
