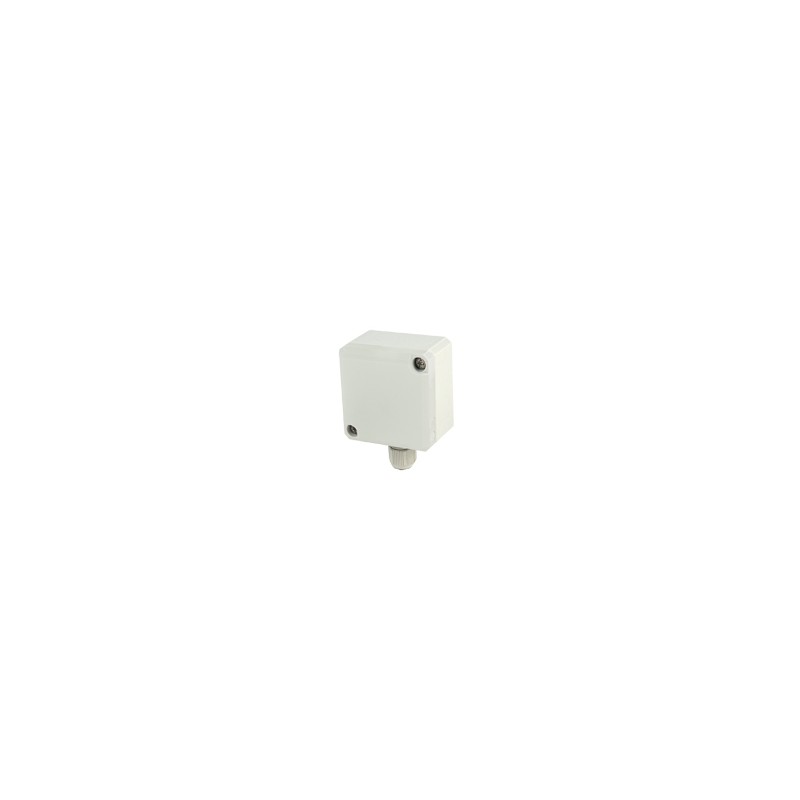

Light Intensity Sensor
Type G 8911 1120
Du line®
Fieldbus Installationbus
• AnaLink transmitter with built-in light intensity sensor
• Measuring range:
A: 5-5000 LUX, B: 3000-300.000 LUX
• Uses only 1 channel
• Channel coding by GAP 1605
• Easily mountable
• Supplied by Dupline®
Product Description
Ordering Key
G 8911 1120
The analog light transmitter G89111120 makes it possible to convert analog light values to be transmitted on the Dupline® bus.
The design of the LUX sen- sor makes it possible to mount the sensor discreetly, e.g. on walls.
No external power supply is required, since the sensor is supplied from the Dupline® signal wires.
Type: Dupline® LUX- housing Transmitter
No. of Channels
No. of Inputs
Type Selection
Supply Ordering no.
By Dupline® G 8911 1120
Supply Specifications
Power Supply Supplied by Dupline®
Rated operational current < 4 mA
General Specifications
Channel programming GAP 1605
Channel assignment 1 channel, freely programmable
Environment
Degree of protection IP 44
Operating temperature -10 to +60°C (14 to +140°F)
Connection
Screw terminal Pin 1: Dupline®
Pin 2: GND
Sensor Specifications
Light measuring range 5 LUX to 300 kLUX Characteristic deviation -20% to + 20% Measuring errror over temp. range -30% to + 30% Response time 6s to 34s
Housing
Material ENSTO Cubo D 050504
Housing Lexan (Polycarbonate) Plug Nylon
Color Translucent / Offwhite
Dimensions (W x H x D) 55 x 53 x 36 mm
Settings Range A: 5-5000 LUX
Range B: 3000-300.000 LUX
Range is changed by switch
Specifications are subject to change without notice (14.05.2008) 1
Dupline® is a registered trademark. A product of the CARLO GAVAZZI Group
