Programming Unit
Type GAP 1605
Du line®
Fieldbus Installationbus
• Portable programming unit
• Individual coding of every input or output
• Group coding of an entire module
• Reading of codes
• Editing of channel codes
• On/off-line coding of Dupline® modules type G ....
• LED display 4 x 8 LEDs
• 5-key tactile keyboard
• Battery powered
• Easy-to-handle plug-type connection
• Switch for turning power on/off
Product Description Ordering Key

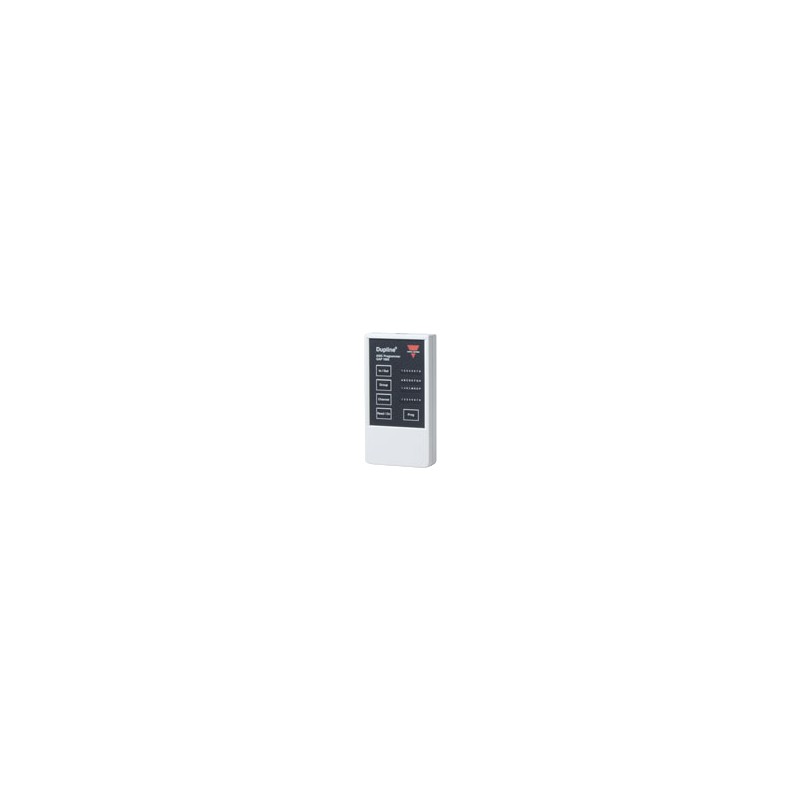

GAP 1605
Programming unit for Dupline® modules G..(..) .... Provides means of reading and pro- gramming of channel codes. Coding of I/O's as either 2, 4
and 8 successive channels or individually for each I/O. Unused inputs/outputs can be defined as non-coded.
Type:
Dupline® Programmer
Type no.
Type Selection Supply Specifications
Supply Ordering no.
Internal battery GAP 1605
Power supply 9 V Alkaline
400 mAH Battery type IEC 6F22
Rated operational power
Stand-by < 25 µA Operating < 22 mA Battery lifetime Typ. 1 year
Product Specifications
General Specifications
Output
Connection 6/6 modular socket
Display 4 x 8 dots
Type LED Size 1.8 mm
Keyboard Tactile keys
No. of keys 5
Cable GAP 1605 to Dupline® system
Connectors 2 x 6/6 modular plugs
Length 75 cm
Environment
Degree of protection IP 40
Pollution degree 3 (IEC 60664)
Operating temperature 0° to +50°C (+32° to +122°F) Storage temperature -20° to +60°C (-4° to +140°F)
Humidity (non-condensing) 20 to 80% RH
Mechanical resistance
Shock 15 G (11 ms) Vibration 2 G (6 to 55 Hz)
Material ABS, grey
Weight 225 g
Specifications are subject to change without notice (04.03.2009) 1
Dupline® is a registered trademark. A product of the CARLO GAVAZZI Group
