Photoelectrics, Fibre Optic Sensor
Glass Fibres
Type PD 60 CNV 20 BP ..
• Range: Fibre dependent
- Diffuse Reflective typ. 80 mm
- Through Beam typ. 200 mm
• Manual distance set-up by keyboard +/-
• Sensitivity bar graph LEDs
• Microprocessor controlled and EEPROM parameter storage
• Operational voltage 10 - 30 VDC
• Output 100 mA, NPN and PNP
• Light or dark switching selectable
• IP65 protection
Product Description
Ordering Key
PD 60 CNV 20 BP M5

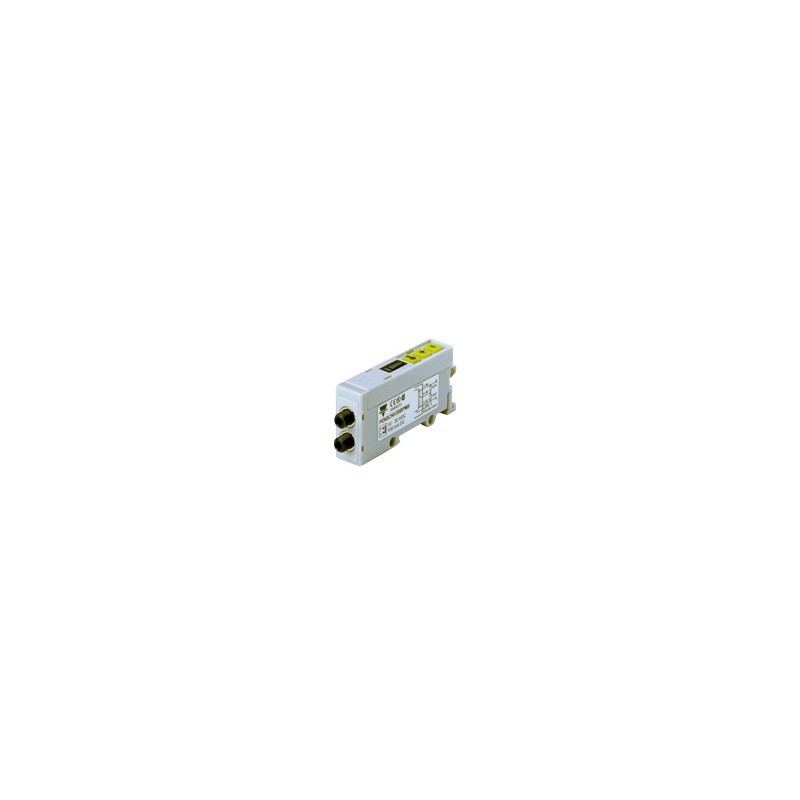

The PD60CNV20BP.. is a fibre optic amplifier made specific for glass fibres up to 250° C. The sensor is microprocessor based and has a manual dis- tance set-up by keyboard. NO or NC (light or dark mode) output are selectable by wiring. The sensor output is build as a Push-pull output that performs both a NPN and PNP output which are fully protected against short-cir-
cuit, transients and wrong polarity. The sensor is build in a strong 13 x 30 x 60 mm polycarbonate housing for DIN-rail mounting.
The sensors are suitable for applications that require little space and high accuracy such as: Small part detection, tight locations, checking parts, counting, precise part positioning, material handling and assembly and robotics
Type
Housing style Housing size Housing material Not used
Glass fibres
Sensing distance cm
Output type
Output configuration
Connection type
Type Selection
Housing Range Ordering no. Ordering no.
W x H x D Sn (Fibre dependent) NPN and PNP cable NPN and PNP plug
Make or break switching Make or break switching
13 x 30 x 60 mm 80 mm diffuse mode PD 60 CNV 20 BP PD 60 CNV 20 BP M5
200 mm through beam mode
Specifications
Rated operating distance (Sn) See optical fibre table
Diffuse mode Up to 80 mm
Through beam mode Up to 200 mm
Sensitivity
Manual distance setup Sensitivity increase or decrease by pressing + or
- keyboard
Temperature drift < 0,4%/C°
Hysteresis (H)
Differential travel ≤ 5%
Rated operational volt. (UB ) 10 to 30 VDC (ripple included)
Ripple (Urpp ) ≤ 10%
Output current
Continuous (Ie) 100 mA Short-time (I) 100 mA
No load supply current (Io) ≤ 40 mA
Voltage drop (Ud )
IL = 100 mA ≤ 2 VDC IL = 10 mA ≤ 1 VDC
Remote input
ON ≤ 1.4 VDC OFF ≥ 3.0 VDC
Protection Short-circuit, reverse pola- rity, transients
Light source GaAIAs, LED 660 nm Light type Red modulated Ambient light
Incandescent light 10’000 Lux
Sunlight 20’000 Lux
Operating frequency 1 KHz
Response time
OFF-ON (tON) ≤ 500 μs
ON-OFF (tOFF) ≤ 500 μs
Power ON delay (tv) ≤ 300 ms
Specifications are subject to change without notice (02.03.2006) 1
