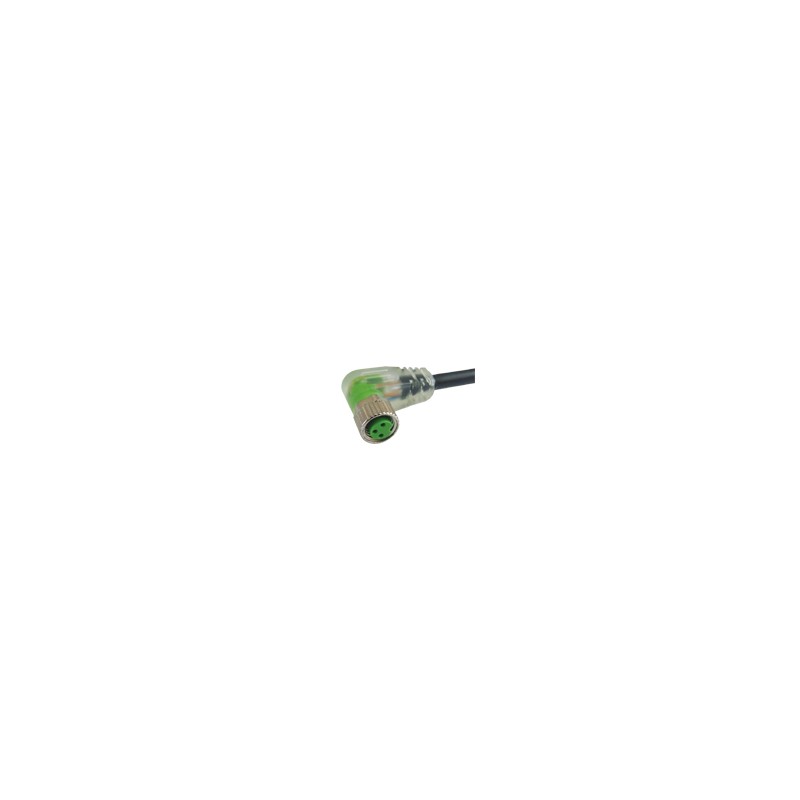

CONM53NF-APT5 CARLO GAVAZZI Paramètres sélectionnés SYSTEME Connexion du câble CONNEXION M8 CABLE 3-fils FON..

General Accessories
Connectors
Type CONM5...
• Straight or 90° connectors
• M8 version
• 3 wire
• DC version
• LED’s in transparent housing
• IP 67
• Easy stripping-off the outer jacket
• Good resistance against chemicals
CONM5x-Ax CONM5x-Sx
Product Description
Ordering Key
CONM53NF-APT2P
PVC version: Connection cable for use in normal environments. Inexpensive cable ideally suited for a static and less demanding use. Suitable for medium mechanical demands like in packaging machines, assembly- and production lines. The connectors have a
Type Selection
good resistance against chemi- cals. The cables are not resis- tant against oil and lubricants and have a limited resistance towards abrasion. The con- nectors are available in 3- and
4- wire versions as well as straight or angled versions.
CONM = Murr
5 = M8 DC
3 = 3 Wire (BN, BU, BK)
4 = 4 wire (BN, BU, BK, WH) N= Not shielded
F= Female
M= Male
A = Angled S = Straight
P = PNP N = NPN
T = Transparent housing
2 = 2 meters
5 = 5 meters
10 = 10 meters
Blank = PVC cable
P = PUR / PVC cable
Plug type Cable Ordering number Ordering number Ordering number length PVC PVC PVC
LED NPN LED PNP
3-Wire Angled 2 m CONM53NF-A2 CONM53NF-ANT2 CONM53NF-APT2
5 m CONM53NF-A5 CONM53NF-ANT5 CONM53NF-APT5
3-Wire Straight 2 m CONM53NF-S2
5 m CONM53NF-S5
Specifications
Rated operating voltage (UB)
3 or 4 wire version 60 V ac/dc
LED versions 24 VDC NOM max. 30 VDC
Output current 4 A
Contact resistance ≤ 6 mΩ
Union Locking nut Zink Die Casting Coating Nickel plated Torque 0,6 Nm
Connection cable Black, PVC or PUR/PVC
Wire cross section
Contact material CuZn
Coating 0,2Ni + 0,5 Au
Pin diameter 1,02 mm
Contact bearer material PUR green
Pin and key code position IEC 61076-2-101
Temperature -25° to +85°C
Degree of protection IP 67
O-ring sealing Viton
Insulation test
3 or 4 wire version 1,5 kV
Moulded body material PUR black
3- and 4- wire version 0,25 mm2 (32x0.1mm)
Weight
2m version approx 63 g
5m version approx 145 g
10m version approx 277 g
Polution degree 3
Overvoltage category lll
Insulation group ll
LED colour
Power Pin 1 to 3 Green LED
Output Yellow LED
Pin 1 to 4 (NPN),
Pin 4 to 3 (PNP)
Specifications are subject to change without notice (28.10.05) 1
