Photoelectrics
Through-beam

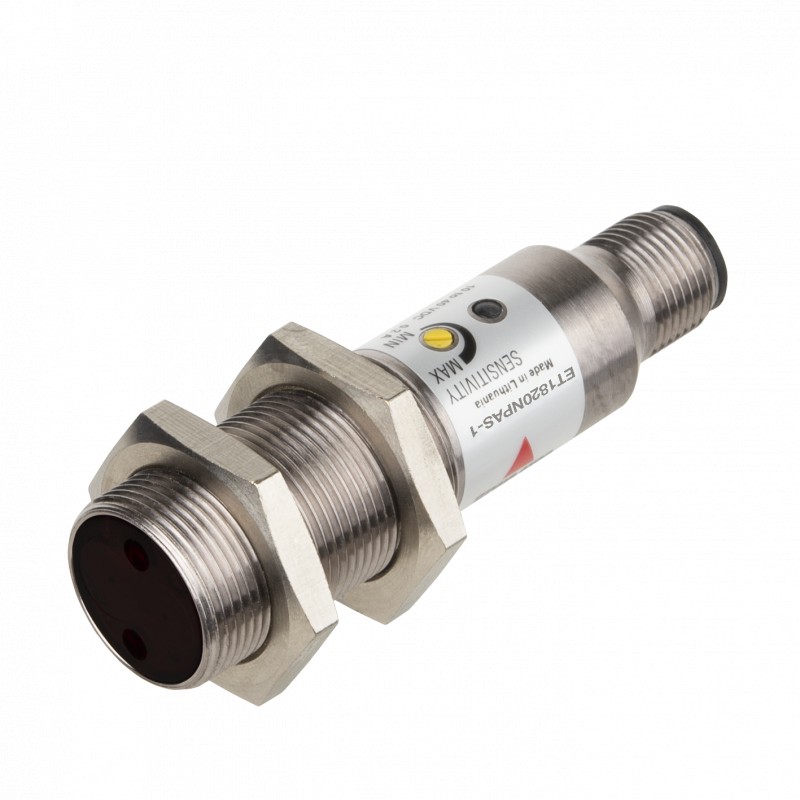

Type ET 1820 DC, Nickel-plated Brass Housing
• Range: 20 m
• Adjustable sensitivity
• Modulated infrared light
• Make and break switching functions, NPN, PNP (200 mA)
• LED-indication for power supply ON (emitter) and target detected (receiver)
• Supply voltage: 10 to 40 VDC
• Heavy duty M18 metal housing, IP 67
• Cable and plug versions
Product Description
Ordering Key
ET 18 20 NPA S-1
The ET1820 is a family of gen- eral purpose through-beam sensors in an industrial stan- dard M18 nickel-plated brass housing for heavy duty appli- cations. They are useful for simple applications where a basic sensor provide adequate
sensing performance. The sen- sors are easy to adjust with a
270° single turn potentiometer. The output is a 4-wire comple- mentary (NO and NC) circuit with NPN (current sinking) or PNP (current sourcing) open collector transistor output.
Type
Housing diameter
Range Output type Housing material Connection type
Type Selection
Housing Rated Connection Ordering no. Ordering no. Ordering no. diameter operating Receiver/NPN Receiver/PNP Emitter
dist. (Sn) Make & break switching Make & break switching
M18 20 m Cable ET 1820 NPAS ET 1820 PPAS ET 1820
M18 20 m Plug ET 1820 NPAS-1 ET 1820 PPAS-1 ET 1820-1
Note: Please order emitter and receiver separately.
Specifications Emitter
Rated operational volt. (UB) 10 to 40 VDC (ripple included)
Ripple (Urpp) ≤ 10% Supply current (Io) ≤ 20 mA Protection Reverse polarity,
short-circuits, transients
Light source GaAIAs LED, 880 nm
Light type Infrared, modulated
Optical angle ± 2°
Indication
Supply ON LED, green
Specifications Receiver
Rated operating dist. (Sn) Up to 10 m
Sensitivity 270° single turn pot. meter
Temperature drift 0.6%/°C
Hysteresis (H) (Differential travel) 3 to 20%
Rated operational volt. (UB) 10 to 40 VDC (ripple included)
Ripple (Urpp) Max. 10%
No-load supply current (Io) Max. 12 mA (typ. 8 mA)
Min. operational current (Ie) 0.5 mA
OFF-state current (Ir) Max. 100 µA (typ. 0)
Output current
Continuous (Ie) Max. 200 mA Short-time (I) 200 mA
Max. load capacity 100 nF
Voltage drop (Ud) Max. 2.5 VDC
Protection Reverse polarity,
short-circuit, transients
Optical angle ± 2°
Ambient light Max. 5,000 lux Operating frequency (f) Typ. 170 Hz Response time
OFF-ON (tON) Typ. 1.6 ms
ON-OFF (tOFF) Typ. 4.2 ms
Specifications are subject to change without notice (14.03.2006) 1
