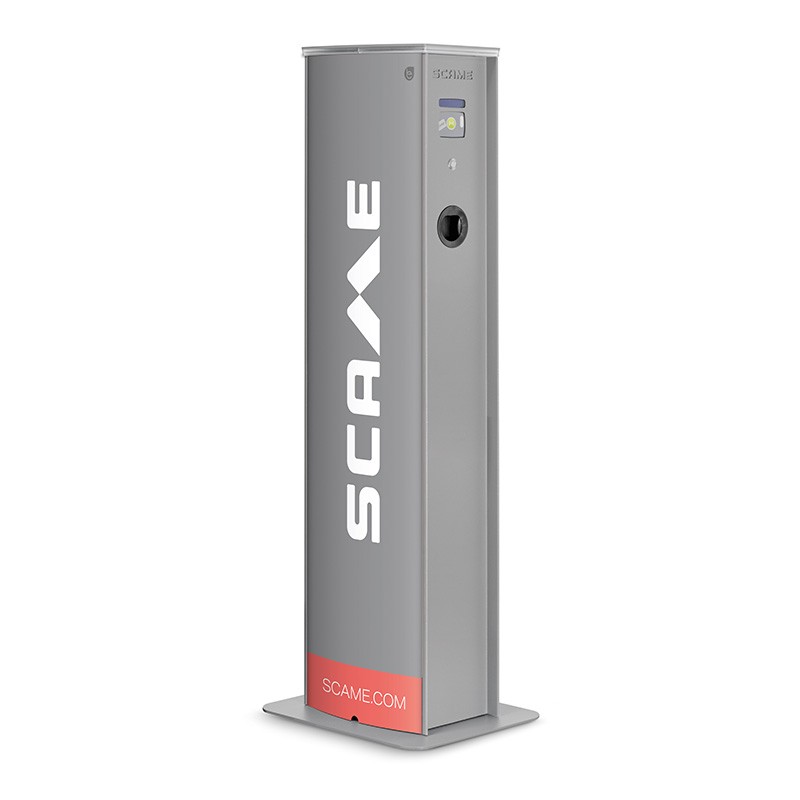

SCAME 204.CA41B-002A 204.CA41B-002A - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

204.CA41B-002A SCAME COLUMNA CA 4 TOMAS CON BLOQUEO

Referencia: 204.CA41B-002A

Fabricante: SCAME

Descripción:

COLUMNA CA 4 TOMAS CON BLOQUEO Type 3A 1P+N+T 16A 230V~ 3,7kW - Type 2 1P+N+T 32A 230V~ 7,4kW 32A 400V 3P+N+T IP54 IK10
COLUMNA CA 4 TOMAS CON BLOQUEO
Type 2 1P+N+E 32A 230V~ 7,4kW Type 3A 1P+N+E 16A 230V~ 3,7kW 32A 400V 3P+N+E IP54 IK10 OCPP 1.6 JSON

Categorías:

  • SCAME

Producto nuevo en su embalaje original con todas las garantías y certificaciones de SCAME

  • Más Información
  • PDF
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 6.146,42 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 20 días.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Serie comercial
Serie CA
Descripción
COLUMNA CA 4 BASES CON BLOQUEO
Material
METAL BARNIZADO
Intensidad nominal
32A
Tensión nominal
400V
Frecuencia nominal
50/60Hz
Polos
3P+N+T
Grado de protección IP
IP54
Temperatura de ejercicio
-30°C/+55°C with derating
Grado de protección IK
IK10
Color
GRIS
Solución salina
Resistente
UV protection
UV resistant
Tipo de instalación
TORRETA
Dimensiones
385x1510x263mm

Versión
PRO
EV standard
Type 2 1P+N+T 32A 230V~ 7,4kW
Type 3A 1P+N+T 16A 230V~ 3,7kW
IHM (Interface Hombre-Máquina)
LCD 2x20 char
Autenticacion de usuario
Autenticación RFID
Connectivity
Ethernet
Protocolo de comunicación
OCPP 1.6 JSON
EV funciones
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
identification of connected cord-set size
charge managing in case of power outage
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
load Balancing function
EV equipo
1 base with separation chamber
1 fuse holder 1P+N gG 4A
1 backup battery
1 local server wired with OCPP 1.6J protocol
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 main switch 4P 40A
2 circuit breakers 1P+N D20 30mA ist. A
2 circuit breakers 1P+N C40 30mA ist. A
1 power supply 24Vdc 60W
4 digital energy meters 1P+N 40A
2 modular contactors 2P 40A 24Vdc
4 DC Leakage detectors
4 control cards
4 lcd display 2x20 rows backlight
4 readers RFID 13,56MHz
4 stop charge push-buttons (mode free)
2 modular contactors 2P 20A 24Vdc

DATASHEET - PDF
