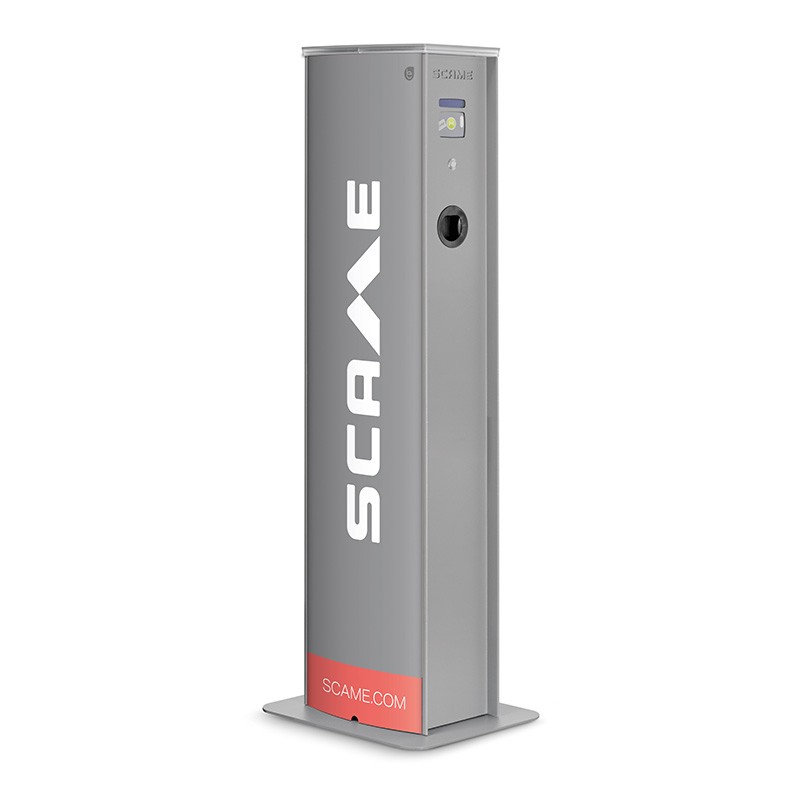

SCAME 204.CA21B-T2T2MA 204.CA21B-T2T2MA - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

204.CA21B-T2T2MA SCAME COLUMNA CA 2 TOMAS CON BLOQUEO

Referencia: 204.CA21B-T2T2MA

Fabricante: SCAME

Descripción:

COLUMNA CA 2 TOMAS CON BLOQUEO Type 2 1P+N+T 32A 230V~ 7,4kW 32A 400V 3P+N+T IP54 IK10
COLUMNA CA 2 TOMAS CON BLOQUEO
Type 2 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10 OCPP 1.6 JSON

Categorías:

  • SCAME

Producto nuevo en su embalaje original con todas las garantías y certificaciones de SCAME

  • Más Información
  • PDF
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 4.288,67 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 20 días.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Serie comercial
Serie CA
Descripción
COLUMNA CA 2 BASES CON BLOQUEO
Material
METAL BARNIZADO
Intensidad nominal
32A
Tensión nominal
400V
Frecuencia nominal
50/60Hz
Polos
3P+N+T
Grado de protección IP
IP54
Temperatura de ejercicio
-30°C/+55°C with derating
Grado de protección IK
IK10
Color
GRIS
Solución salina
Resistente
UV protection
UV resistant
Tipo de instalación
TORRETA
Dimensiones
385x1510x263mm

Versión
PRO
EV standard
Type 2 1P+N+T 32A 230V~ 7,4kW
IHM (Interface Hombre-Máquina)
LCD 2x20 char
Autenticacion de usuario
Autenticación RFID
Connectivity
Ethernet
Protocolo de comunicación
OCPP 1.6 JSON
EV funciones
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
load Balancing function
EV equipo
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 local server wired with OCPP 1.6J protocol
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 main switch 4P 40A
2 circuit breakers 1P+N C40 30mA ist. A
2 digital energy meters MID 1P+N 40A
2 modular contactors 2P 40A 24Vdc
