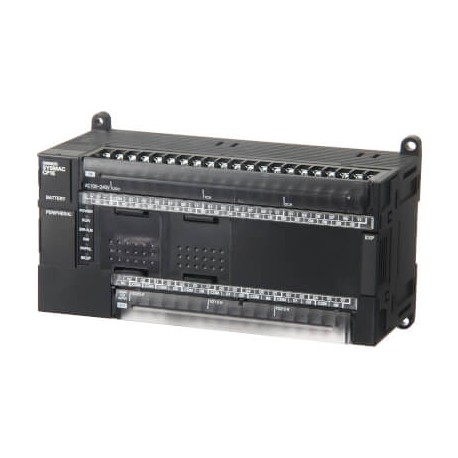

CP1E-N60DR-A
333293
CP1EN60DRA
OMRON
1
Disponible Envío el hoy
CPU 36/24 E/S AC Salidas Relé 8K Programa 8K Datos
Controladores industriales (PLC) > Unidad base de PLC
Sistemas de Control > CPM2C
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Supply voltage type | AC |
Number of digital inputs | 36 |
Input type | PNP/NPN |
Number of digital outputs | 24 |
Output type | Relay |
Program capacity | 8 K steps |
Data memory capacity | 8 K words |
Logic execution time | 1.19 µs |
Communication port(s) | Serial RS-232C, USB |
Number of Ethernet ports | 0 |
Number of USB ports | 1 |
Number of RS-232 ports | 1 |
Number of RS-485 ports | 0 |
Communication option(s) | CompoBus/S Slave, Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485 |
Max. encoder input frequency | 100 kHz |
Max. number of PTP axes | 0 |
Max. pulse output frequency | 0 kHz |
Function Block programming | |
Battery-free memory backup | |
Real-time clock | |
Analog option boards | |
Max. number of analog I/O channels | 28 |
Max. number of local I/O points | 180 |
Max. number of expansion units | 3 |
Built-in auxiliary 24 VDC output | 300 mA |
Operating temperature range | 0-55 °C |
Height | 90 mm |
Width | 195 mm |
Depth | 85 mm |
Weight | 850 g |
CP1W-BAT01 | Batería para el PLC CP1 | |
CP1W-CIF01 | Interface RS-232C para CP1 | |
CP1W-CIF11 | Interface RS-422/485 para CP1 | |
CP1W-CIF12-V1 | Tarjeta opcional de comunicación en serie CP1 RS422/485 (aislado de máx. 500 m) | |
CP1W-CIF41 | Interface Ethernet para CP1 | |
CP1W-CN221 | Cable Programación USB A-B 1,8m | |
CP1W-CN811 | Cable Expansión de E/S para CP1 | |
CXONE-LT01-EV4 | Software CX-One Lite v4 - 1 Licencia para nuevo usuario |
Título: | Tamaño: | Tipo: |
---|---|---|
CP1E-N60DR-A CP1EN60DRA 333293 RU_CP1E-NA20DT1-D.pdf | 8 Mbytes | |
CP1E-N60DR-A CP1EN60DRA 333293 cp1e_brochure_en.pdf | 3 Mbytes |
