NRT-CN NRT 9012D NRTCN OMRON Thumb wheel switch
NRT-CN
NRT 9012D
NRTCN
OMRON
Thumb wheel switch
Sensores > Interruptor de posición individual
Final de Carrera Industrial / Pulsadores > Otros Final Carrera Industrial
Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON
Más vendidos
▲Más Información

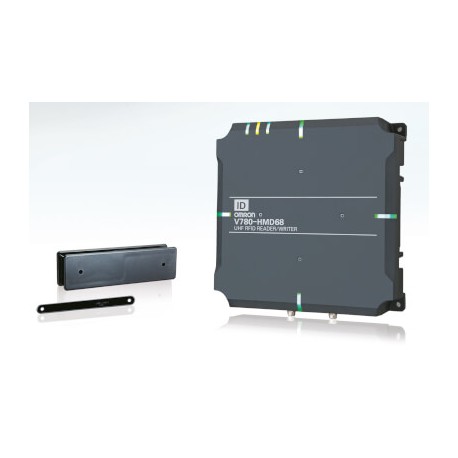

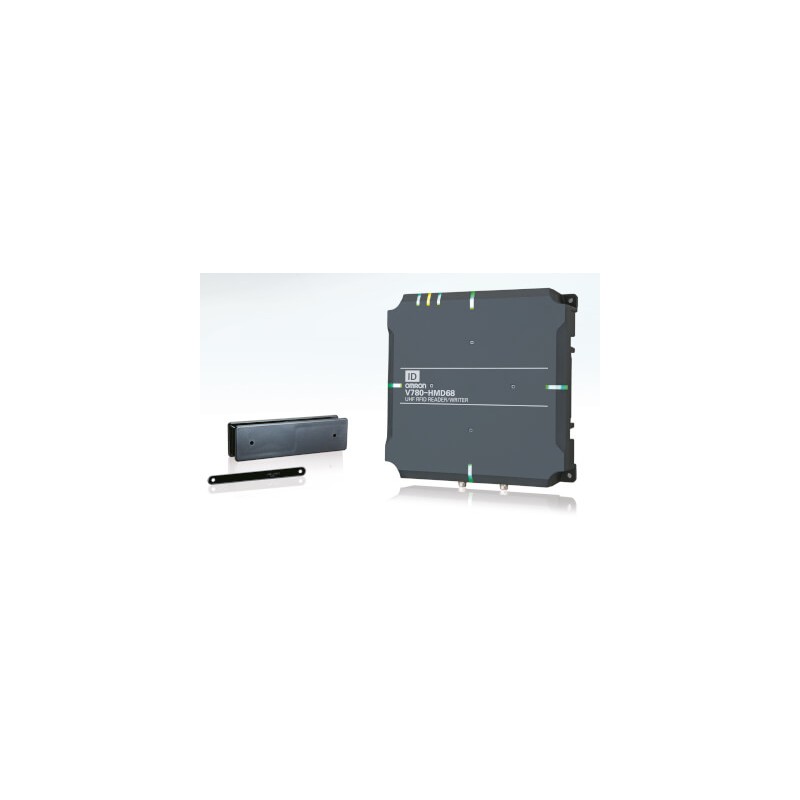

▲Sistema RFID UHF
Sistema RFID UHF 3 en 1: antena, amplificador y controlador
- Cumple con las normas ISO/IEC 18000-63: 2013
- Comunicaciones estables y de largo alcance
- Lectura/escritura con antena integrada
- El estado de las comunicaciones se muestra con indicadores LED
- Ethernet (Modbus/TCP)
- Simple y fácil de utilizar
Ordering information
Reader/Writer
| Appearance | Size (mm) | Network | Applicable countries 2 Contact your Omronrepresentative for details on products for other countries. | Order code |
|---|---|---|---|---|
| 250 × 250 × 70 | Modbus/TCP base (TCP/IP) | Japan | V780-HMD68-ETN-JP | |
| Korea | V780-HMD68-ETN-KR | |||
| China | V780-HMD68-ETN-CN | |||
| Taiwan | V780-HMD68-ETN-TW | |||
| India | V780-HMD68-ETN-IN | |||
| Indonesia | V780-HMD68-ETN-ID | |||
| Malaysia | V780-HMD68-ETN-MY | |||
| Singapore and Thailand | V780-HMD68-ETN-SG | |||
| Under RE direct. | V780-HMD68-ETN-EU | |||
| Russia | V780-HMD68-ETN-RU | |||
| United States and Canada | V780-HMD68-ETN-US | |||
| Mexico | V780-HMD68-ETN-MX | |||
| EtherNet/IP | Japan | V780-HMD68-EIP-JP | ||
| Korea | V780-HMD68-EIP-KR | |||
| China | V780-HMD68-EIP-CN | |||
| Taiwan | V780-HMD68-EIP-TW | |||
| India | V780-HMD68-EIP-IN | |||
| Indonesia | V780-HMD68-EIP-ID | |||
| Malaysia | V780-HMD68-EIP-MY | |||
| Under RE direct. | V780-HMD68-EIP-EU | |||
| Russia | V780-HMD68-EIP-RU | |||
| United States and Canada | V780-HMD68-EIP-US | |||
| Mexico | V780-HMD68-EIP-MX |
RF Tag
| Appearance | Memory capacity | Size (mm) | Order code |
|---|---|---|---|
| 1 KB | 150 × 14 × 6 | V780-A-JIME-Z3BLI-10 2 Contains10 RF Tags per package. |
RF Tag Attachment
| Appearance | Material | Size (mm) | Order code |
|---|---|---|---|
| Polycarbonate plastic | 180 × 50 × 30 | V780-A-TA-133-10 2 Contains10 RF Tag Attachments per package. |
- Use the RF Tag Attachmentwhen mounting on metal surface. Refer to the User's Manual for howto mount.
- Toppan Forms Co., Ltd. manufactures RF Tags and Attachments. For more information, visit the following website:
http://www.toppan-f.co.jp/english/
Cables
RecommendedEthernet Cables (Connection between Host Device and Reader/Writer)
UseSTP (shielded twisted-pair) cable of category 5 or higher.
| Appearance | Specifications | Cable length (m) 2 3- and 15-m cables arealso available. | Order code | |
|---|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45) | 0.5 | XS5W-T421-BME-K | |
| 1 | XS5W-T421-CME-K | |||
| 2 | XS5W-T421-DME-K | |||
| 5 | XS5W-T421-GME-K | |||
| 10 | XS5W-T421-JME-K | |||
For details, refer to the Industrial EthernetConnectors Catalog (Cat. No. G019).
Other cable lengths, robotcables, and extension cables are available. Contact your Omron representativefor details.
Recommended PowerCables (Connection between Power Supply and Reader/Writer) XS5F-D42⬜-⬜80-F
| Specifications | Cable length (m) | Cable outer diameter (mm) | Order code | |
|---|---|---|---|---|
| Straight Connectors | Angled Connectors | |||
| Fire-retardant, Robot Cable | 1 | 6 | XS5F-D421-C80-F | XS5F-D422-C80-F |
| 2 | XS5F-D421-D80-F | XS5F-D422-D80-F | ||
| 3 | XS5F-D421-E80-F | XS5F-D422-E80-F | ||
| 5 | XS5F-D421-G80-F | XS5F-D422-G80-F | ||
| 10 | XS5F-D421-J80-F | XS5F-D422-J80-F | ||
For details, refer to the XS5 datasheet(http://www.ia.omron.com/).
Other cable lengths and extensioncables are available. Contact your Omron representative for details.
RecommendedIndustrial Switching Hubs
| Appearance | Specifications | Order code | ||
|---|---|---|---|---|
| Functions | No. of ports | Failure detection | ||
| Quality of Service (QoS): EtherNet/IP control data priorityFailure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | W4S1-03B | |
| 5 | No | W4S1-05B | ||
| 5 | Yes | W4S1-05C | ||
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATIZACION ES.pdf | 30 Mbytes |
|
| PDF CATALOGO OMRON ES.pdf | 49 Mbytes |
|
| NRT-CN NRTCN NRT 9012D q256_v780_datasheet_en.pdf | 7 Mbytes |
|
