K3HB-XVD 100-240VAC 168442 OMRON Indicadores de Panel, Analógico Entrada tensión Vcc 48x96 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

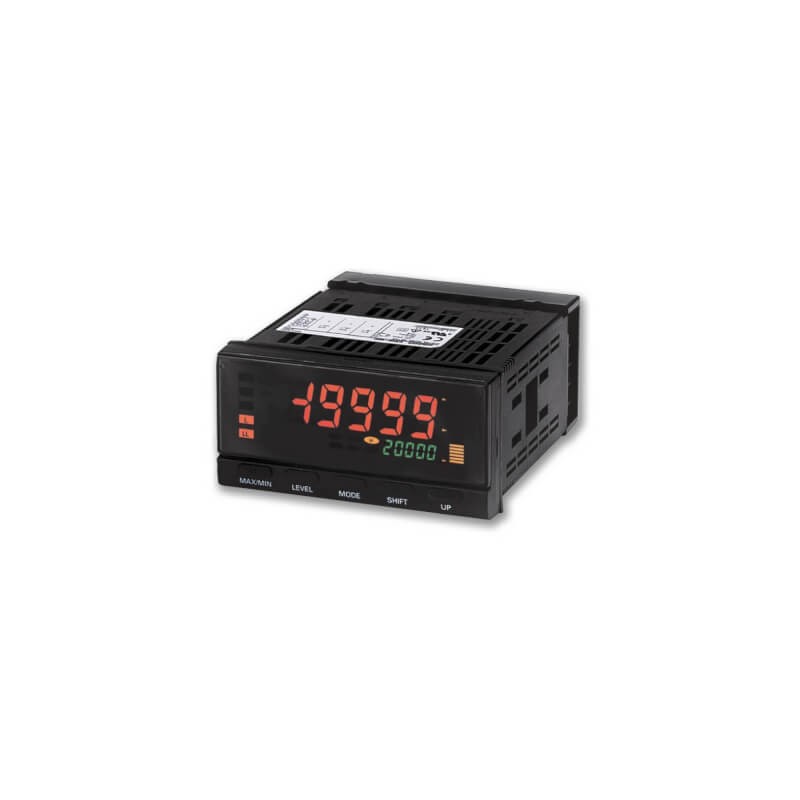

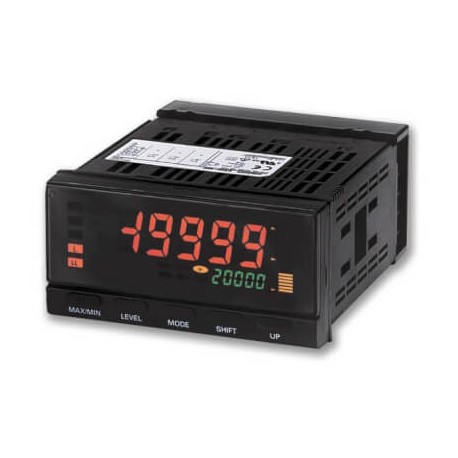

K3HB-XVD 100-240VAC 168442 OMRON Indicadores de Panel, Analógico Entrada tensión Vcc 48x96

K3HB-XVD 100-240VAC




Envío el hoy

Indicadores de Panel, Analógico Entrada tensión Vcc 48x96

Más detalles

Interfaz Hombre Maquina Pantallas Control Hmi


* Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON

1+350,01 €
2+342,48 €
3+340,87 €
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Productos relacionados

Más Información

K3HB-X, -H, -V, -S 1/8 DIN advanced indicators
Process, temperature, weighing and linear sensor indicators
These indicators with analog input feature a clear and easy-to-use color change dis- play. All models are equipped with an IP66 housing. K3HB series is high speed, with a sample rate of 50 Hz, and even 2,000 Hz for K3HB-S
• Position meter indication for easy monitoring
• Optional DeviceNet, RS-232C, RS-485
• Double display, with 5 digits, in two colors
• 1/8 DIN size housing
Ordering information
Type of indicator Input sensor type and range Supply voltage Order code
Process indicator
Temperature indicator
AC current input, from 0.000 to 10.000 A, 0.0000 to 19.999 mA 100 to 240 VAC K3HB-XAA 100-240VAC
24 VAC/VDC K3HB-XAA 24VAC/VDC DC current input, from ±199.99 mA, to 4.000 to 20.000 mA 100 to 240 VAC K3HB-XAD 100-240VAC
24 VAC/VDC K3HB-XAD 24VAC/VDC AC voltage input, from 0.0 to 400.0 V to 0.0000 to 1.999 V 100 to 240 VAC K3HB-XVA 100-240VAC
24 VAC/VDC K3HB-XVA 24VAC/VDC DC voltage input, from ±199.99 V to 1.0000 to 5.0000 V 100 to 240 VAC K3HB-XVD 100-240VAC
24 VAC/VDC K3HB-XVD 24VAC/VDC Temperature input Pt100, thermocouple K, J, T, E, L, U, N, R, S, B, W 100 to 240 VAC K3HB-HTA 100-240VAC
Weighing indicator
Load cell input (DC low voltage input), 0.00 to 199.99 mV, 0.000 to 19.999 mV,
100.00 mV, 199.999 mV
100 to 240 VAC K3HB-VLC 100-240 VAC
Linear sensor indicator
DC process input, 0 to 5 V, 1 to 5 V, –5 to 5 V, –10 to 10 V, 0 to 20 mA, 4 to 20 mA 24 VAC/VDC K3HB-SSD AC/DC24
100 to 240 VAC K3HB-SSD AC100-240
Option boards
Sensor power supply/output boards
Slot Output Sensor power supply Communications Applicable indicator types Order code
B Relay PASS: SPDT 12 VDC ±10%, 80 mA – K3HB-X, -H, -S K33-CPA *1
Linear current DC0(4) - 20 mA – K3HB-X, -H, -S K33-L1 A *2
Linear voltage DC0(1) - 5 V, 0 to 10 V – K3HB-X, -H, -S K33-L2A *2
– – – K3HB-X, -H, -S K33-A *2
– – RS-232C K3HB-X, -H, -S K33-FLK1 A *2
– – RS-485 K3HB-X, -H, -S K33-FLK3A *2
Relay PASS: SPDT 10 VDC ±5%, 100 mA – K3HB-V K33-CPB *1
Linear current DC0(4) - 20 mA – K3HB-V K33-L1B *2
Linear voltage DC0(1) - 5 V, 0 to 10 V – K3HB-V K33-L2B *2
– – – K3HB-V K33-B *2
– – RS-232C K3HB-V K33-FLK1B *2
– – RS-485 K3HB-V K33-FLK3B *2
Relay/transistor output boards
Slot Output Communications Order code
C Relay H/L: SPDT each – K34-C1
HH/H/LL/L: SPST-NO each – K34-C2
Transistor NPN open collector: HH/H/PASS/L/LL – K34-T1
PNP open collector: HH/H/PASS/L/LL – K34-T2
– – DeviceNet K34-DRT *2
Event input boards
Slot Input type Number of points Communications Order code
D NPN open collector 5 M3 terminal blocks K35-1
8 10-pin MIL connector K35-2
PNP open collector 5 M3 terminal blocks K35-3
8 10-pin MIL connector K35-4
*1 CPA/CPB can be combined with relay outputs only.
*2 Only one of the following can be used by each digital indicator: RS-232C/RS-485 communications, a linear output, or DeviceNet communications.
K3HB has got three slots for option boards: Slot B, slot C and slot D.
Type Order code
Special cable (for event inputs with 8-pin connector) K32-DICN
K3HB-X, -H, -V, -S 1/8 DIN advanced indicators
Power supply voltage 100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC
Allowable power supply voltage range 85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
Power consumption 100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load)
Display method Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2 mm (green/red) SV: 4.9 mm (green))
Ambient operating temperature –10 to 55°C (with no icing or condensation)
Display range –19,999 to 99,999
Weight Approx. 300 g (base unit only)
Degree of protection Front-panel Conforms to NEMA 4X for indoor use (equivalent to IP66)
Rear case IP20
Terminals IP00 + finger protection (VDE0106/100)
Memory protection EEPROM (non-volatile memory), number of rewrites: 100,000
Event input ratings Contact ON: 1 k max., OFF: 100 k min.
No-contact ON residual voltage: 2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max.
Output ratings Transistor output Maximum load voltage 24 VDC Maximum load current 50 mA Leakage current 100 μA max.
Contact output
(resistive load)
Rated load 5 A at 250 VAC, 5 A at 30 VDC
Rated through current 5 A
Mechanical life expectancy 5,000,000 operations
Electrical life expectancy 100,000 operations
Linear output Allowable load impedance 500  max. (mA) 5 k min. (V)
Resolution Approx. 10,000
Output error ±0.5% FS
Size in mm (H×W×D) 48×96×100
