OMRONSistemas de VisiónFQFQ-WD002 337808 FQ 3201G OMRON Cable de E/S FQ 2m
OMRON FQ-WD002 337808 FQ 3201G - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

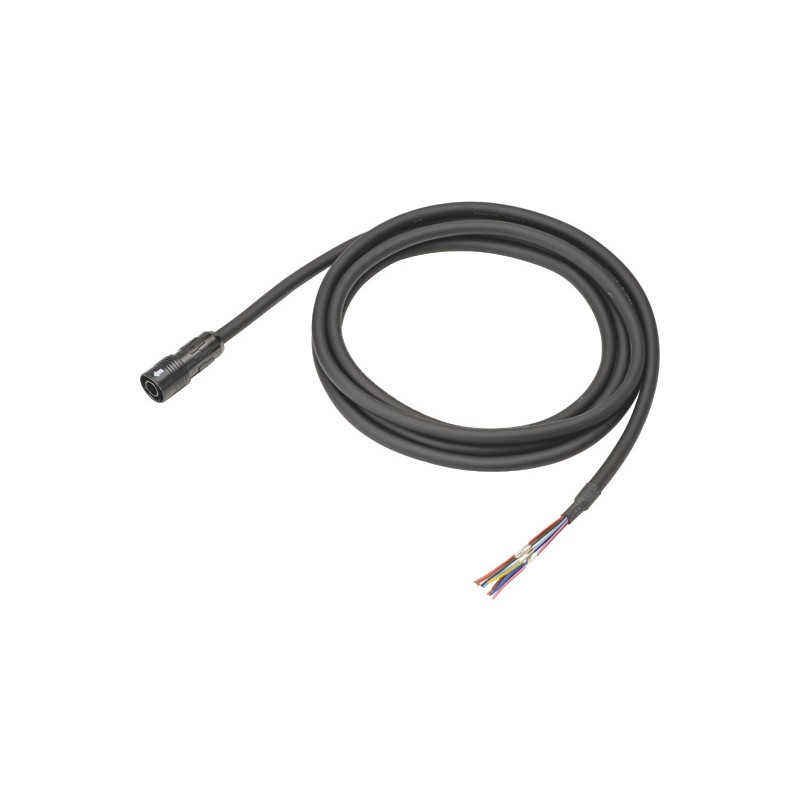

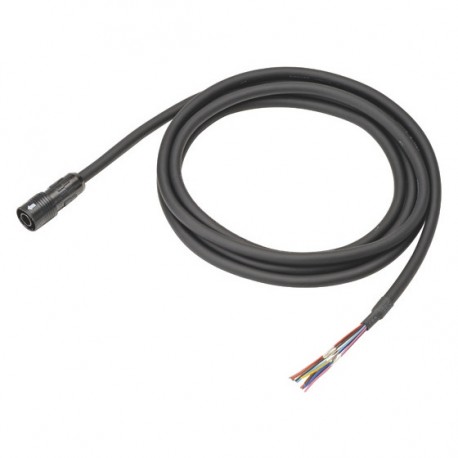

FQ-WD002 337808 FQ 3201G OMRON Cable de E/S FQ 2m

Referencia: FQ-WD002

Código: 337808

Número de catálogo: FQ 3201G

Fabricante: OMRON

Descripción:

Cable de E/S FQ 2m

Categorías:

  • Sensores > Accesorios para tecnología de sensores
  • OMRON > Sistemas de Visión > FQ

Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON

  • Más Información
  • PDF
  • Opiniones
Garantía, reparación y devolución.

* Este artículo podría estar obsoleto. Si está interesado solicite presupuesto y le indicaremos si quedan unidades disponibles. En caso de que no queden uno de nuestros técnicos buscará una alternativa sumunistrable de características similares.

Solicite presupuesto y le indicaremos si quedan unidades disponibles. En caso de que no queden uno de nuestros técnicos buscará una alternativa suministrable de características similares.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

  • Gama de productos versátil con potentes funciones
  • Imágenes con la máxima nitidez
  • Carcasa todo en uno
  • Detecciones sencillas con la función Shape Search II
  • Marcado en la propia pieza (DPM)
  • Tecnología OCR exclusiva
  • Verificación de códigos
  • Inspección avanzada

Especificaciones y modelos disponibles

System Configuration



Ordering Information

Sensor

Inspection model

FQ2-S1 Series [Single-function Type]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Number of pixels

350,000 pixels

Color

NPN

FQ2-S10010F

FQ2-S10050F

FQ2-S10100F

FQ2-S10100N

PNP

FQ2-S15010F

FQ2-S15050F

FQ2-S15100F

FQ2-S15100N

Field of vision/Installation distance

Refer to Figure 1

Refer to Figure 2

Refer to Figure 3

Refer to Figure 4

FQ2-S2 Series [Standard Type]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Number of pixels

350,000 pixels

Color

NPN

FQ2-S20010F

FQ2-S20050F

FQ2-S20100F

FQ2-S20100N

PNP

FQ2-S25010F

FQ2-S25050F

FQ2-S25100F

FQ2-S25100N

Field of vision/Installation distance

Refer to Figure 1

Refer to Figure 2

Refer to Figure 3

Refer to Figure 4

FQ2-S3 Series [High-resolution Type]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

C-mount

Number of pixels

760,000 pixels

1.3 million pixels

Color

NPN

FQ2-S30010F-08

FQ2-S30050F-08

FQ2-S30100F-08

FQ2-S30100N-08

FQ2-S30-13

PNP

FQ2-S35010F-08

FQ2-S35050F-08

FQ2-S35100F-08

FQ2-S35100N-08

FQ2-S35-13

Monochrome

NPN

FQ2-S30010F-08M

FQ2-S30050F-08M

FQ2-S30100F-08M

FQ2-S30100N-08M

FQ2-S30-13M

PNP

FQ2-S35010F-08M

FQ2-S35050F-08M

FQ2-S35100F-08M

FQ2-S35100N-08M

FQ2-S35-13M

Field of vision/Installation distance

Refer to Figure 5

Refer to Figure 6

Refer to Figure 7

Refer to Figure 8

Refer to Optical Chart for C-mount Camera FQ2-S3⬜-13⬜/-S4⬜-13⬜

Inspection/ID model

FQ2-S4 Series [Standard Type]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Number of pixels

350,000 pixels

Color

NPN

FQ2-S40010F

FQ2-S40050F

FQ2-S40100F

FQ2-S40100N

PNP

FQ2-S45010F

FQ2-S45050F

FQ2-S45100F

FQ2-S45100N

Monochrome

NPN

FQ2-S40010F-M

FQ2-S40050F-M

FQ2-S40100F-M

FQ2-S40100N-M

PNP

FQ2-S45010F-M

FQ2-S45050F-M

FQ2-S45100F-M

FQ2-S45100N-M

Field of vision/Installation distance

Refer to Figure 1

Refer to Figure 2

Refer to Figure 3

Refer to Figure 4

[High-resolution Type]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

C-mount

Number of pixels

760,000 pixels

1.3 million pixels

Color

NPN

FQ2-S40010F-08

FQ2-S40050F-08

FQ2-S40100F-08

FQ2-S40100N-08

FQ2-S40-13

PNP

FQ2-S45010F-08

FQ2-S45050F-08

FQ2-S45100F-08

FQ2-S45100N-08

FQ2-S45-13

Monochrome

NPN

FQ2-S40010F-08M

FQ2-S40050F-08M

FQ2-S40100F-08M

FQ2-S40100N-08M

FQ2-S40-13M

PNP

FQ2-S45010F-08M

FQ2-S45050F-08M

FQ2-S45100F-08M

FQ2-S45100N-08M

FQ2-S45-13M

Field of vision/Installation distance

Refer to Figure 5

Refer to Figure 6

Refer to Figure 7

Refer to Figure 8

Refer to Optical Chart for C-mount Camera FQ2-S3⬜-13⬜/-S4⬜-13⬜

ID Model

FQ2-CH Series [Optical Character Recognition Sensor]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Number of pixels

350,000 pixels

Monochrome

NPN

FQ2-CH10010F-M

FQ2-CH10050F-M

FQ2-CH10100F-M

FQ2-CH10100N-M

PNP

FQ2-CH15010F-M

FQ2-CH15050F-M

FQ2-CH15100F-M

FQ2-CH15100N-M

Field of vision/Installation distance

Refer to Figure 1

Refer to Figure 2

Refer to Figure 3

Refer to Figure 4

FQ-CR1 Series [Multi Code Reader]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Number of pixels

350,000 pixels

Monochrome

NPN

FQ-CR10010F-M

FQ-CR10050F-M

FQ-CR10100F-M

FQ-CR10100N-M

PNP

FQ-CR15010F-M

FQ-CR15050F-M

FQ-CR15100F-M

FQ-CR15100N-M

Field of vision/Installation distance

Refer to Figure 1

Refer to Figure 2

Refer to Figure 3

Refer to Figure 4

FQ-CR2 Series [2D Code Reader]

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Number of pixels

350,000 pixels

Monochrome

NPN

FQ-CR20010F-M

FQ-CR20050F-M

FQ-CR20100F-M

FQ-CR20100N-M

PNP

FQ-CR25010F-M

FQ-CR25050F-M

FQ-CR25100F-M

FQ-CR25100N-M

Field of vision/Installation distance

Refer to Figure 1

Refer to Figure 2

Refer to Figure 3

Refer to Figure 4

Field of vision/Installation distance (Unit: mm)

Field of vision

Narrow View

Standard View

Wide View (Long-distance)

Wide View (Short-distance)

Appearance





350,000 pixels type

Figure 1

Figure 2

Figure 3

Figure 4





760,000 pixels type

Figure 5

Figure 6

Figure 7

Figure 8





Optical Chart for C-mount Camera FQ2-S3⬜-13⬜/-S4⬜-13⬜

High-resolution, Low-distortion Lenses 3Z4S-LE SV-⬜⬜⬜⬜H


Touch Finder

Type

Appearance

Order code

DC power supply


FQ2-D30

AC/DC/battery

FQ2-D31

Cables

Type

Appearance

Cable length

Order code

FQ Ethernet Cables

(connect Sensor to Touch Finder, Sensor to PC)


2m

FQ-WN002

5m

FQ-WN005

10m

FQ-WN010

20m

FQ-WN020

I/O Cables


2m

FQ-WD002

5m

FQ-WD005

10m

FQ-WD010

20m

FQ-WD020

Sensor Data Unit (FQ2-S3/S4/CH only)

Type

Appearance

Output type

Order code

Parallel Interface


NPN

FQ-SDU10

PNP

FQ-SDU15

RS-232C Interface


NPN

FQ-SDU20

PNP

FQ-SDU25

Cables for Sensor Data Unit

Type

Appearance

Cable length

Order code

Sensor Data Unit Cable


2m

FQ-WU002

5m

FQ-WU005

10m

FQ-WU010

20m

FQ-WU020

Parallel Cable for FQ-SDU11


2m

FQ-VP1002

5m

FQ-VP1005

10m

FQ-VP1010

Parallel Cable for FQ-SDU21


2m

FQ-VP2002

5m

FQ-VP2005

10m

FQ-VP2010

RS-232C Cable for FQ-SDU21


2m

XW2Z-200S-V

5m

XW2Z-500S-V

External Lighting

Type

Model

FLV series

Refer to FLV series catalog Q198

Accessories

Application

Appearance

Name

Order code

For Sensor


Mounting Bracket2

FQ-XL


Mounting Bracket

FQ-XL2


Mounting Base for C-mount type3

FQ-XLC


Polarizing Filter Attachment1

FQ-XF1

For Touch
Finder


Panel Mounting Adapter

FQ-XPM


AC Adapter

(for AC/DC/battery model)3

FQ-A⬜


Battery

(for AC/DC/battery model)

FQ-BAT1


Touch Pen4

FQ-XT


Strap

FQ-XH


SD CARD (4 GB)

HMC-SD491

*3.AC Adapters for Touch Finder with DC/AC/Battery Power Supply.Select the model for the country in which the Touch Finder will be used.

Plug Type

Voltage

Certified standards

Order code

A

125 V max.

PSE

FQ-AC1

UL/CSA

FQ-AC2

250 V max.

CCC mark

FQ-AC3

C

250 V max.

-

FQ-AC4

BF

250 V max.

-

FQ-AC5

C

250 V max.

-

FQ-AC6

*4.Enclosed with Touch Finder.

Industrial Switching Hubs (Recommended)

Appearance

Number
of ports

Failure detection

Current consumption

Order code


3

None

0.22 A

W4S1-03B


5

None

0.22 A

W4S1-05B

Supported

W4S1-05C

Lenses for C-mount Camera.Refer to Optical Chart for C-mount Camera FQ2-S3⬜-13⬜/-S4⬜-13⬜for selection of a lens.

High-resolution, Low-distortion Lenses

Model

3Z4S-LE

SV-0614H

3Z4S-LE

SV-0814H

3Z4S-LE

SV-1214H

3Z4S-LE

SV-1614H

3Z4S-LE

SV-2514H

3Z4S-LE

SV-3514H

3Z4S-LE

SV-5014H

3Z4S-LE

SV-7525H

3Z4S-LE

SV-10028H

Appearance










Focal length

6 mm

8 mm

12 mm

16 mm

25 mm

35 mm

50 mm

75 mm

100 mm

Brightness

F1.4

F1.4

F1.4

F1.4

F1.4

F1.4

F1.4

F2.5

F2.8

Filter size

M40.5 P0.5

M35.5 P0.5

M27 P0.5

M27 P0.5

M27 P0.5

M35.5 P0.5

M40.5 P0.5

M34.0 P0.5

M37.5 P0.5

Extension Tubes

Model

3Z4S-LE SV-EXR

Contents

Set of 7 tubes

(40 mm, 20 mm,10 mm, 5 mm, 2.0 mm,1.0 mm, and 0.5 mm)

Maximum outer diameter: 30 mm dia.

Note: Do not use the 0.5-mm, 1.0-mm, and 2.0-mm Extension Tubes attached to each other. Since these Extension Tubes are placed over the threaded section of the Lens or other Extension Tube, the connection may loosen when more than one 0.5-mm, 1.0-mm or 2.0-mm Extension Tube are used together.

Note: Reinforcement is required to protect against vibration when Extension Tubes exceeding 30 mm are used.

Ratings and Performance

Sensor

Inspection Model FQ2-S1/S2/S3 Series

Item

Single-function type

Standard type

High-resolution type

Model

NPN

FQ2-S10⬜⬜⬜⬜

FQ2-S20⬜⬜⬜⬜

FQ2-S30⬜⬜⬜⬜-08

FQ2-S30⬜⬜⬜⬜-08M

FQ2-S30-13

FQ2-S30-13M

PNP

FQ2-S15⬜⬜⬜⬜

FQ2-S25⬜⬜⬜⬜

FQ2-S35⬜⬜⬜⬜-08

FQ2-S35⬜⬜⬜⬜-08M

FQ2-S35-13

FQ2-S35-13M

Field of view

Refer to Ordering Information on p.19. (Tolerance (field of vision):±10% max.)

Select a lens according to the field of vision
and installation distance.
Refer to Optical Chart for C-mount Camera FQ2-S3⬜-13⬜/-S4⬜-13⬜.

Installation distance

Main functions

Inspection items

Search, shape search II, sensitive search, area, color data, edge position, edge pitch, edge width, and labeling

Number of simultaneous measurements

1

32

Position compensation

Supported (360º Model position compensation, Edge position compensation)

Number of registered scenes

8

32

Calibration

Supported

Image input

Image processing method

Real color

Monochrome

Real color

Monochrome

Image filter

High dynamic range (HDR), image adjustment (Color Gray Filter, Weak smoothing, Strong smoothing, Dilate, Erosion, Median, Extract edges, Extract horizontal edges, Extract vertical edges, Enhance edges, Background suppression), polarizing filter (attachment), and white balance (Sensors with Color Cameras only)

Image elements

1/3-inch color CMOS

1/2-inch color CMOS

1/2-inch Monochrome CMOS

1/2-inch color CMOS

1/2-inch Monochrome CMOS

Shutter

Built-in lighting ON: 1/250 to 1/50,000 s

Built-in lighting OFF: 1/1 to 1/50,000 s

Built-in lighting ON: 1/250 to 1/60,000 s

Built-in lighting OFF: 1/1 to 1/4155 s

1/1 to 1/4155 s

Processing resolution

752×480

928×828

1,280×1,024

Partial input function

Supported horizontally only.

Supported horizontally and vertically

Lens mounts

-

C-mount

Lighting

Lighting method

Pulse

-

Lighting color

White

-

Data logging

Measurement data

In Sensor: 1,000 items (If a Touch Finder is used, results can be saved up to the capacity of an SD card.)

Images

In Sensor: 20 images (If a Touch Finder is used, images can be saved up to the capacity of an SD card.)

Auxiliary function

Math (arithmetic, calculation functions, trigonometric functions, and logic functions)

Measurement trigger

External trigger (single or continuous)

Communications trigger (Ethernet TCP no-protocol, Ethernet UDP no-protocol, Ethernet FINS/TCP no-protocol, EtherNet/IP, PLC Link, or PROFINET)

I/O specifications

Input signals

7 signals

Single measurement input (TRIG)

Control command input (IN0 to IN5)

Output signals

3 signals

Control output (BUSY)

Overall judgement output (OR)

Error output (ERROR)

The assignments of the three output signals (OUT0 to OUT2) can be changed to the individual judgements of the inspection items, the image input ready output (READY), or the external lighting timing output (STGOUT).

Ethernet specifications

100Base-TX/10Base-T

Communications

Ethernet TCP no-protocol, Ethernet UDP no-protocol, Ethernet FINS/TCP no-protocol, EtherNet/IP, PLC Link, or PROFINET

I/O expansion

-

-

Possible by connecting FQ-SDU1_ Sensor Data Unit. 11 inputs and 24 outputs

RS-232C

-

-

Possible by connecting FQ-SDU2_ Sensor Data Unit. 8 inputs and 7 outputs

Ratings

Power supply voltage

21.6 to 26.4 VDC (including ripple)

Current consumption

2.4 A max.

0.3 A max.

Environmental immunity

Ambient temperature range

Operating: 0 to 50ºC

Storage: -25 to 65ºC

(with no icing or condensation)

Operating: 0 to 40ºC

Storage: -25 to 65ºC

(with no icing or condensation)

Ambient humidity range

Operating and storage: 35% to 85% (with no condensation)

Ambient atmosphere

No corrosive gas

Vibration resistance (destruction)

10 to 150 Hz, single amplitude: 0.35 mm, X/Y/Z directions

8 min each, 10 times

Shock resistance (destruction)

150 m/s2 3 times each in 6 direction (up, down, right, left, forward, and backward)

Degree of protection

IEC 60529 IP67 (Except when Polarizing Filter Attachment is mounted

or connector cap is removed.)

IEC 60529 IP40

Materials

Sensor: PBT, PC, SUS

Mounting Bracket: PBT

Polarizing Filter Attachment: PBT, PC

Ethernet connector: Oil-resistance vinyl compound

I/O connector: Lead-free heat-resistant PVC

Cover: Zinc-plated steel,

Thickness: 0.6 mm

Case: Aluminum diecast alloy (ADC-12)

Mounting base: Polycarbonate ABS

Weight

Narrow View/Standard View:Approx.160 g

Wide View: Approx.150 g

Approx. 160 g without base,

Approx. 185 g with base

Accessories included with sensor

Mounting Bracket (FQ-XL) (1)

Polarizing Filter Attachment (FQ-XF1) (1)

Instruction Manual, Quick Startup Guide

Member Registration Sheet, Warning Label

Mounting Base (FQ-XLC) (1)

Mounting Screw (M3×8mm) (4)

Instruction Manual, Quick Startup Guide

Member Registration Sheet

LED class

Class 2(Applicable standards: IEC 60825-1:1993 +A1:1997 +A2:2001,
EN 60825-1:1994 +A1:2002 +A2:2001, and JIS C 6802:2005)

-

Applicable standards

EN standard EN 61326 and EC Directive No.2004/104/EC

EN 61326-1:2006 and IEC 61010-1

Inspection/ID Model FQ2-S4 Series

Item

Inspection/ID Model

Model

NPN

FQ2-S40⬜⬜⬜⬜

FQ2-S40⬜⬜⬜⬜-M

FQ2-S40⬜⬜⬜⬜-08

FQ2-S40⬜⬜⬜⬜-08M

FQ2-S40⬜⬜⬜⬜-13

FQ2-S40⬜⬜⬜⬜-13M

PNP

FQ2-S45⬜⬜⬜⬜

FQ2-S45⬜⬜⬜⬜-M

FQ2-S45⬜⬜⬜⬜-08

FQ2-S45⬜⬜⬜⬜-08M

FQ2-S45⬜⬜⬜⬜-13

FQ2-S45⬜⬜⬜⬜-13M

Field of view

Refer to Ordering Information on p.19. (Tolerance (field of vision):±10% max.)

Select a lens according to the field of vision
and installation distance.
Refer to Optical Chart for C-mount Camera FQ2-S3⬜-13⬜/-S4⬜-13⬜.

Installation distance

Main functions

Inspection items

Search, shape search II, sensitive search, area, color data, edge position, edge pitch, edge width, labeling, OCR4, Bar code5, 2D-code2, 2D-code (DMP)6, and Model dictionary

Number of simultaneous measurements

32

Position compensation

<

DATASHEET - PDF

Título
Tamaño
Tipo
FQ-WD002 FQ 3201G 337808 fq2_brochure_es.pdf
3 Mbytes
PDF CATALOGO OMRON ES
49 Mbytes

Últimas Opiniones de Nuestros Clientes

Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, le agradecemos ese minuto que invierte en dejarnos su opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerle un servicio de todavía mayor calidad.
