OMRONProductos de SeguridadOTROS SEGURIDADA22Z-EG2 A22 9156B A22ZEG2 OMRON Cubierta para A22E Circular

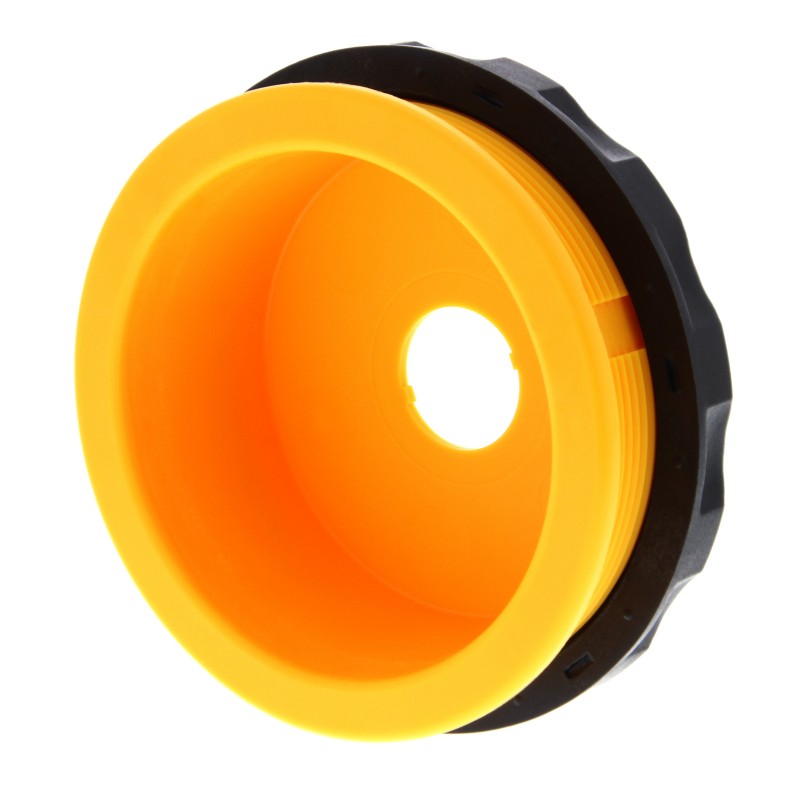

OMRON A22Z-EG2 A22 9156B A22ZEG2 - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

A22Z-EG2 A22 9156B A22ZEG2 OMRON Cubierta para A22E Circular

Referencia: A22Z-EG2

Código: A22 9156B

Número de catálogo: A22ZEG2

Fabricante: OMRON

Descripción:

Cubierta para A22E Circular

Categorías:

  • Componentes industriales de baja tensión > Etiqueta para dispositivos de mando
  • OMRON > Productos de Seguridad > Otros Seguridad

Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON

  • Más Información
  • ETIM
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 38,01 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 2-3 días.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

MÁS INFORMACIÓN

  • Mecanismo de apertura directa para abrir el circuito si el contacto se funde
  • Con mecanismo de bloqueo para evitar errores de manipulación
  • Palanca de bloqueo para montar y desmontar la unidad fácilmente
  • Utiliza anillo de 25 mm de diámetro para la instalación en panel en secciones de 25 mm de diámetro*
  • En un modelo equipado con función de contacto con la palanca de bloqueo, se puede detectar la instalación inadecuada de la unidad de interruptores. (A22NE-PD)

Accesorios

Ordering information

Commonto Screw Terminal Block types (A22E)/Push-in Plus Terminal Blocktypes (A22NE-P/A22NE-PD) (Order Separately)

ItemAppearanceClassificationRemarksOrder code
Legend Plates for
Emergency Stop		bxkeojprrp.png60-dia. black letters on yellowback-groundUsed in combination with the washer rubber when the level of
protection is to be met between panels.		A22Z-3466-1
90-dia. black letters on yellowback-groundA22Z-3476-1
60-dia. black letters on yellowbackgroundCannot be used in combination with the Control Boxes.
Used in combination with the washer rubber when the level of
protection is to be met between panels.		A22Z-3466-2
Hole Plugochojeuisb.pngRoundUsed for covering the panel cutouts for future panel expansion.
Black color.		A22Z-3530
Connectorsjcwpoegyyg.pngApplicable cable diameter7 to 9 dia.Plastic connector used to extenda cable from the Switch Box.A22Z-3500-1
9 to 11 dia.A22Z-3500-2
25-dia. Ringqasfabxcjg.png–Use when mounting to a panel with a 25-dia. hole.
Material: Rubber, Level of protection: IP65
2
Switches with an IP69K degree of protectiondo not support the 25-dia.
A22Z-R25
30-dia.
Resin Attachment		flvxdmfwne.png–Use when mounting to a panel with a 30-dia. hole.
A rubber washer (A22Z-R) is provided with the product.		A22Z-A30
Lock Ringtrlurbjwjo.png–The body is equipped with a Lock Ring.
This Lock Ring is used when a more secure lock feature is
-required.		A22Z-3360
Tightening Tool–Used for tightening the mounting ring from the back side of the
panel, and for removing the cap in lighted models.		A22Z-3905
E-stop Shroud for EMO,
Yellow		huivcwsyyr.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY OFF come as a set. Use with an A22E
Emergency Stop Switch (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG1
E-stop Shroud for EMO,
Yellow		mjzwkhjdkt.pngLegend plate for EMERGENCY OFF is not
-included.		Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMO indication.
(for -emergency off)
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG10
E-stop Shroud for EMS,
White		zhvlxygjnf.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY STOP come as a set. Use with an A22E
Emergency Stop Switch. (for emergency stop)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG1-W
E-stop Shroud for EMS,
White		ufgafvwlzr.pngLegend plate for EMERGENCY STOP is not
-included.		Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMS indication.
(for emergency stop)
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG10-W
E-stop Shroud, Yellowiimlbnxhnb.pngSpacer Unit is not included.SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI
S2-compatible Shroud. (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.

Use together with an A22E Emergency Stop Switch.		A22Z-EG2
One Spacer Unit is included.A22Z-EG21
Two Spacer Units are included.A22Z-EG22
E-stop Shroud for EMO,
Yellow		owdidyjnbl.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY OFF come as a set. Use with an A22E
Emergency Stop Switch. (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG3
Rubber Packingdiczuklmcs.png–Used together with accessories.
Contains 10 packings.		A22Z-R
Note:
  1. Accessories forA22Z-EG1: one “EMERGENCY OFF” label, two rubber packings, and onelock ring
  2. Accessories for A22Z-EG10: one rubber packing and one lock ring(without label)

ETIM for 234627 Interruptores de baja tensión (EC000624)

CaracterísticaForma (EF000051)
ValorRedondo
CaracterísticaSímbolos ISO impresos (EF006094)
ValorNinguno
CaracterísticaIdioma de la huella (EF015922)
ValorOtros
CaracterísticaImpresión literal (EF015918)
ValorNinguno
CaracterísticaColor (EF000007)
ValorAmarillo
CaracterísticaDiámetro exterior (EF000015)
Valor105 mm
