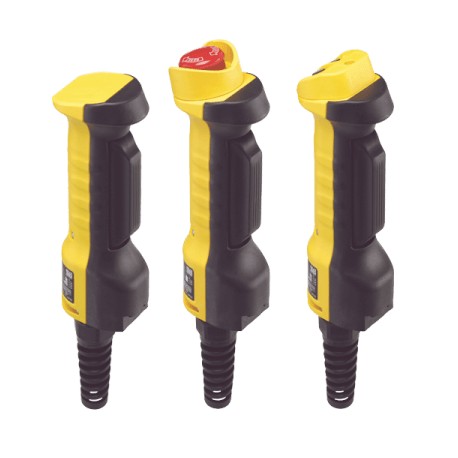

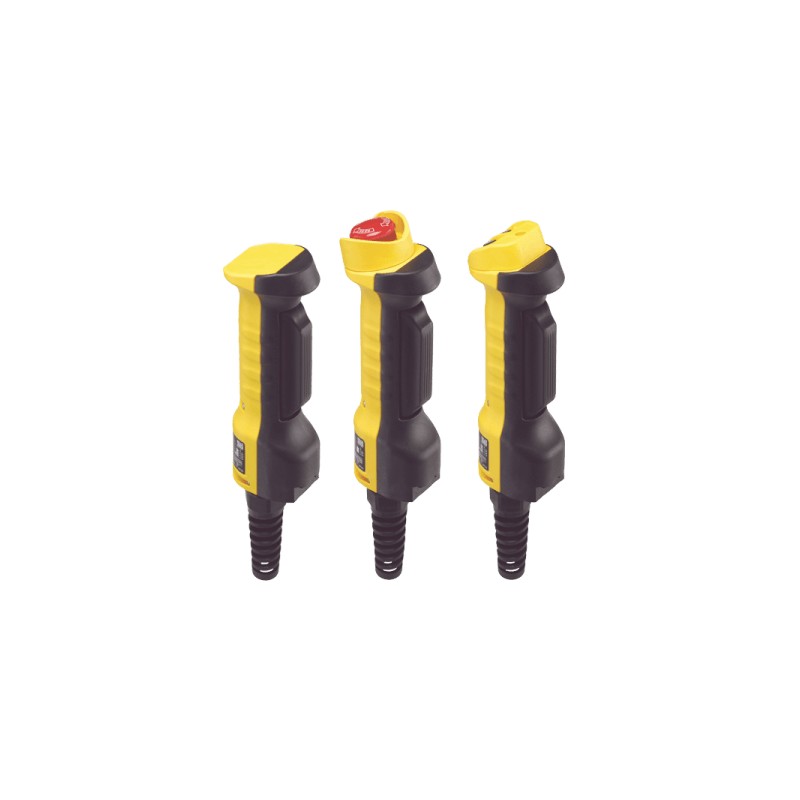

A4EG-OP1 A4EG0004C 247807 OMRON Cubierta Negra Pulsador A4EG Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

A4EG-OP1 A4EG0004C 247807 OMRON Cubierta Negra Pulsador A4EG

A4EG-OP1

A4EG0004C

A4EGOP1

OMRON

Disponible Envío el hoy

Cubierta Negra Pulsador A4EG

Más detalles


Productos de Seguridad > Otros Seguridad

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de OMRON

Precio total: $99.90
Precio unitario: $99.90

Cantidad Precio
1+$99.90
2+$99.49
3+$91.87
4+$87.56
5+$85.90
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más Información



  • Una tecla de retención opcional (que se vende por separado) proporciona un método versátil de selección de modos.
  • Equipados con conector de entradas
  • Sensación segura de funcionamiento: el mecanismo del interruptor de doble presión original permite al operario confirmar con precisión la posición de activación.
  • Circuitos de seguridad son fáciles de configurar: se pueden configurar fácilmente combinando el A4EG con la unidad de conmutación de protección de seguridad G9SX-GS.

Especificaciones y modelos disponibles

Ordering information

Enabling grip switches

Contact form

Order code

Enabling switch

Monitor switch

Pushbutton switch

Two contacts

1NC (grip output)

None

A4EG-C000041

Two contacts

None

Emergency stop switch (2NC)

A4EG-BE2R041

Two contacts

None

Momentary operation switch (2NO)

A4EG-BM2B041

Safety guard switching units

Safety outputs1

Auxiliary outputs2

Logical AND
connection input

Logical AND connection output

Max. OFF
delay time3

Rated
voltage

Terminal block type

Order code

Instantaneous

OFF-delayed4

2 (Semi-
conductors)

2 (Semi-
conductors)

6 (Semi-conductors)

1

1

15 s

24 VDC

Screw terminals

G9SX-GS226-T15-RT

Spring-cage terminals

G9SX-GS226-T15-RC

Specifications

Ratings of guard switching unit

Power input

Item

G9SX-GS226-T15-_

G9SX-EX-_

Rated supply voltage

24 VDC

Inputs

Item

G9SX-GS226-T15-_

Safety input

Operating voltage: 20.4 VDC to 26.4 VDC, internal impedance: approx. 2.8 kΩ

Feedback/reset input

Mode selector input

Outputs

Item

G9SX-G9SX-GS226-T15-_

Instantaneous safety output
OFF-delayed safety output

P channel MOS FET transistor output

Load current: 0.8 A DC max.

Auxiliary output

PNP transistor output

Load current: 100 mA max.

External indicator outputs

P channel MOS FET transistor outputs

Connectable indicators

  • Incandescent lamp: 24 VDC, 3 W to 7 W
  • LED lamp: 10 to 300 mA DC

Application example

Automatic switching mode

Worker is loading and unloading the machine manually. When loading is finished, robot cycle is started manually by the worker. When robots return to their home position, loading cycle is selected automatically.

Loading condition: Safety sensor B is not active, safety sensor A is active because the robots are not allowed to move to the loading area while the worker loads the machine. So the worker is safe because safety sensor A is active.

Robot work condition: Safety sensor B is active, safety sensor A is not active because the worker is not allowed to move to the loading area when the robots work. So the worker is safe because safety sensor B stops the machine if he moves to the loading area.


Manual switching mode

Worker has to do maintenance in this machine. While maintenance, it is necessary to move the machine in a limited way. The worker has to select automatic mode or manual mode manually by using the mode selector switch.

Operation steps:

1) Select maintenance mode by using the mode selector

2) Open the door to do the maintenance while the machine still is able to operate in a limited way (monitoring of limited movement by using the safety limit switch).

3) Close the cover after finishing maintenance

4) Select automatic mode by using the mode selector

E-Stop conditions:

a) open the door while not in maintenance mode

b) the machine actuates the limit switch (breaks the limit).

c) the Enabling grip switch A4EG is actuated to stop the machine in emergency condition.



1.P channel MOS FET transistor output

2.PNP transistor output

3.The OFF-delay time can be set in 16 steps as follows:
T15: 0, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 1, 1.5, 2, 3, 4, 5, 7, 10 or 15 s

4.The OFF-delayed output becomes an instantaneous output by setting the OFF-delay time to 0 s.
