2CLA853110A6201 8531.1 DN NIESSEN Tecla wireless emisora 1 canal DN Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

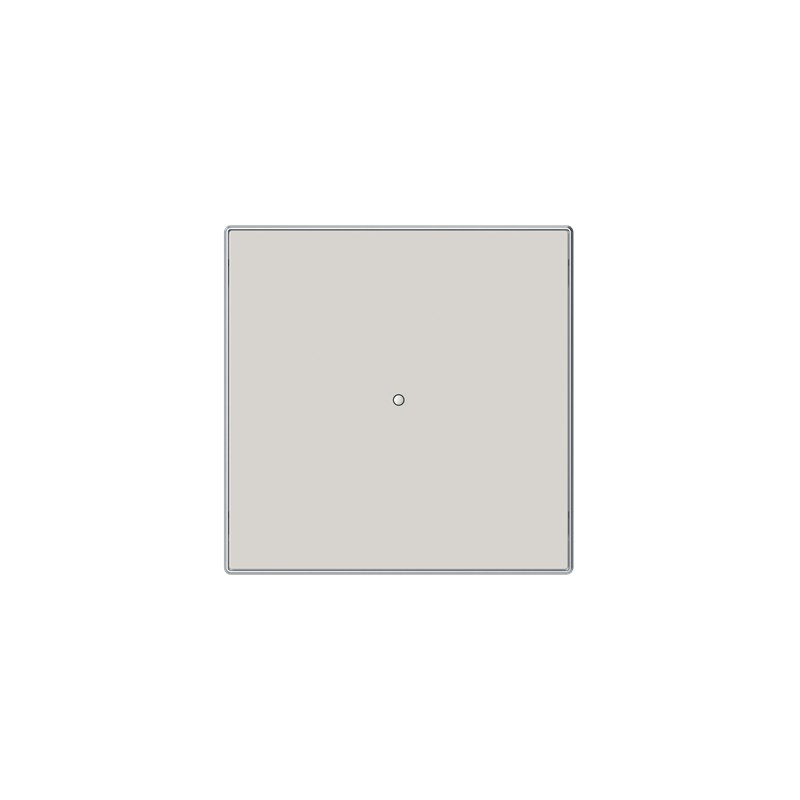

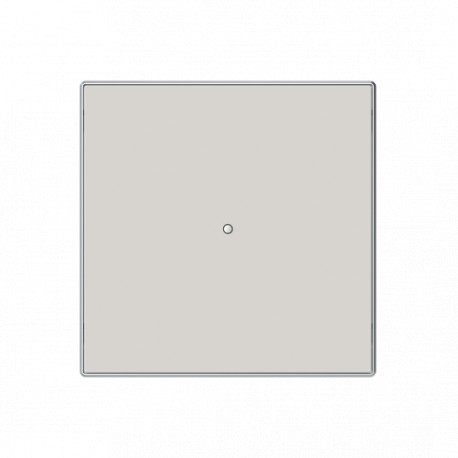

2CLA853110A6201 8531.1 DN NIESSEN Tecla wireless emisora 1 canal DN

2CLA853110A6201

8531.1 DN

NIESSEN

Tecla wireless emisora 1 canal DN

Color: Duna .1-gang wall-mounted transmitter independent of mainspower supply.For switching and dimming.For controlling blinds and light scenes.1 radio channel can be operated or up to 2 light scenes can be called up.For wireless pill type actuators: 8130.4, 8130.5, 8130.7 & 8130.6.Send frequency: 868 MHz.Free-field range: approx. 100 m.Power supply: lithium button cell battery Type CR2032.Battery service life: typically 5 years, therefore practically maintenance-free.Rated voltage: 3 Vdc.Automatic monitoring of battery life.Including fixing plate for mounting on smooth walls or on switch boxes.Control element: Switch contacts top/bottom.Display elements: LED to indicate the transmission.Temperature range (Device): -5 °C to 45 °C.Battery included in delivery.

Más detalles


Programa de instalación de interruptores / enchufes > Transmisor/control remoto para programas de interruptores de instalación

Industrial

Producto nuevo en su embalaje original con todas las garantías y certificaciones de NIESSEN

Precio total: $138.01
Precio unitario: $138.01
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

Más Información



  • Tipo de producto extendido:
    8531.1 DN
  • Código de producto:
    2CLA853110A6201
  • EAN:
    8427238236490
  • Descripción corta:
    Tecla wireless emisora 1 canal - Duna Dune - Sky Niessen
  • Descripción larga:
    Color: Duna .
    1-gang wall-mounted transmitter independent of mains
    power supply.
    For switching and dimming.
    For controlling blinds and light scenes.
    1 radio channel can be operated or up to 2 light scenes can be called up.
    For wireless pill type actuators: 8130.4, 8130.5, 8130.7 & 8130.6.
    Send frequency: 868 MHz.
    Free-field range: approx. 100 m.
    Power supply: lithium button cell battery Type CR2032.
    Battery service life: typically 5 years, therefore practically maintenance-free.
    Rated voltage: 3 Vdc.
    Automatic monitoring of battery life.
    Including fixing plate for mounting on smooth walls or on switch boxes.
    Control element: Switch contacts top/bottom.
    Display elements: LED to indicate the transmission.
    Temperature range (Device): -5 °C to 45 °C.
    Battery included in delivery.

Installation

Technical

  • Ficha técnica, información técnica:
    9AKK107046A0356
  • Design Range:
    Sky Niessen
  • Acabado de superficie:
    Decor
    Matt
  • Material:
    Plastic
    Thermoplastic
  • Color:
    Dune
  • Número de pilas:
    0
  • Función de la aplicación:
    Electrical Load and Light Control

Ambiente

  • Temperatura ambiente:
    Funcionamiento -5 ... +35 °C
    Almacenamiento -5 ... +50 °C
  • Estado de RoHS:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Información sobre RoHS:
    2CLC853110A6201
  • Declaración REACH:
    9AKK108467A7464
  • Información medioambiental:
    9AKK108466A4737
  • Plantilla de notificación de minerales de conflicto (CMRT):
    9AKK108468A3363

Dimensiones

  • Ancho del product:
    0.094m
  • Alto del producto:
    0.038m
  • Largo del product:
    0.110m

Certificados y Declaraciones (Número de Documento)

Clasificaciones

  • ETIM 8:
    EC000257 - Transmitter/Remote control for domestic switching devices
  • ETIM 9:
    EC000257 - Transmitter/Remote control for domestic switching devices
  • Categoría RAEE:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    85389099
  • UNSPSC:
    39121704

Datasheet - PDF
