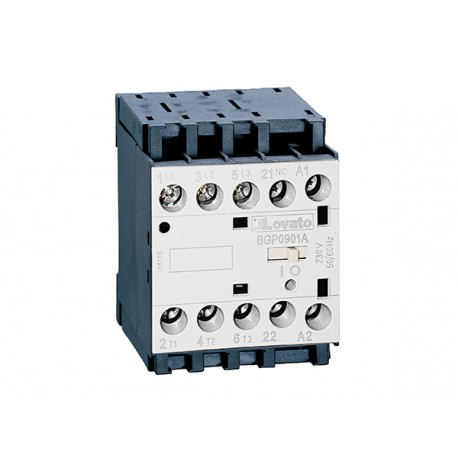

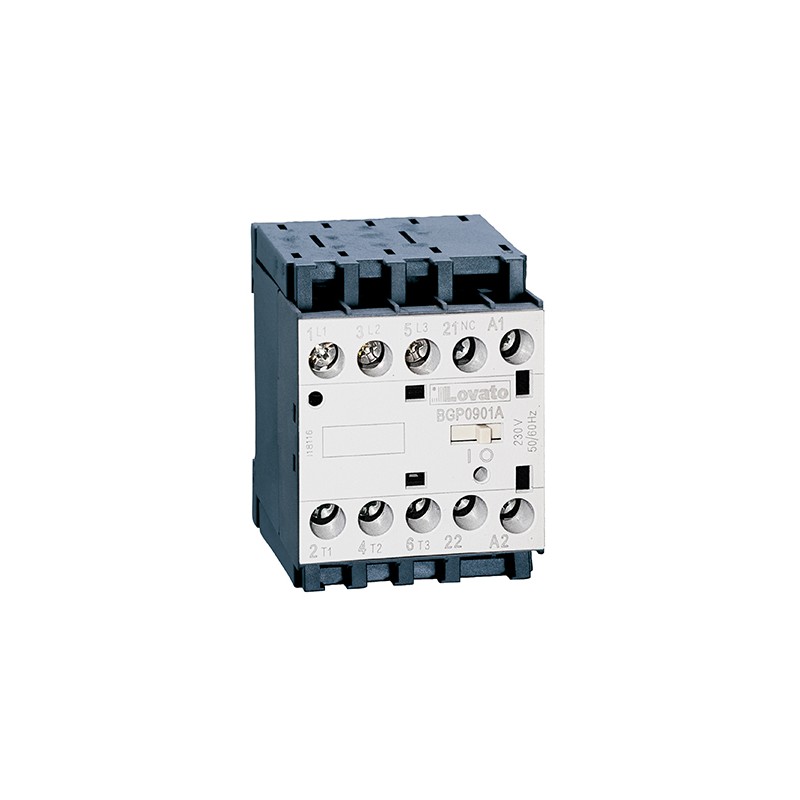

11BGP09T4D110 BGP09T4D110 LOVATO Minicontactor Tetrapolar 20A AC1 Bobina 110V DC Circuito Impreso
11BGP09T4D110
BGP09T4D110
LOVATO ELECTRIC
Minicontactor Tetrapolar 20A AC1 Bobina 110V DC Circuito Impreso
CONTACTOR DE CUATRO POLOS, BOBINA DE CC, 110VDC, PIN DE SOLDADURA DE PCB TRASERO
Contactores Industriales y accesorios - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más Información
▲| Código de pedido | 11BGP09T4D110 |
| Peso [g] | 242 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 10 |
| Dimensiones de embalaje [mm] | 060X045X070 |
| Volumen [cm³] | 189 |
| Código de barras [EAN13] | 8013975145395 |
| Código HS | 85365080 |
Dimensiones
Esquemas eléctricos
Homologaciones:
EAC
cURus
EAC
cURus
Conformidad:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BGP09 | |||
| Contact characteristics | ||||
| Number of poles | nr. | 4 | ||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 20 | ||
| Operational current Ie | ||||
| AC-1 (≤40°C) | A | 20 | ||
| AC-3 (≤440V ≤55°C) | A | 9 | ||
| AC-4 (400V) | A | 4 | ||
| Rated operational power AC-1 (T≤40°C) | ||||
| 230V | kW | 8 | ||
| 400V | kW | 14 | ||
| 500V | kW | 16 | ||
| 690V | kW | 22 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 96 | ||
| Protection fuse | ||||
| gG (IEC) | A | 20 | ||
| aM (IEC) | A | 10 | ||
| Making capacity (RMS value) | A | 92 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 72 | ||
| 500V | A | 72 | ||
| 690V | A | 72 | ||
| Resistance per pole (average value) | mΩ | 10 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 4 | ||
| AC3 | W | 0.81 | ||
| Tightening torque for terminals | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | 0.6 | ||
| max | Ibin | 0.7 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibft | 0.59 | ||
| max | Ibft | 0.74 | ||
| Max number of wires simultaneously connectable | nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 0.8 | ||
| max | mm² | 2.5 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 2.5 | ||
| Flexible with insulated spade lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 2.5 | ||
| Power terminal protection according to IEC/EN 60529 | IP00 | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 242 | ||
| Auxiliary contact characteristics | ||||
| Type of contact | 1 NA | |||
| Thermal current Ith | A | 10 | ||
| IEC/EN 60947-5-1 designation | Q600 | |||
| Operations | ||||
| Mechanical life | cycles | 20000000 | ||
| Electrical life | cycles | 500000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | cycles | 500000 | ||
| mechanical load | cycles | 20000000 | ||
| Mirror contats according to IEC/EN 609474-4-1 | yes | |||
| EMC compatibility | yes | |||
| DC coil operating | ||||
| DC rated control voltage | V | 110 | ||
| DC operating voltage | ||||
| pick-up | ||||
| min | %Us | 75 | ||
| max | %Us | 115 | ||
| drop-out | ||||
| min | %Us | 10 | ||
| max | %Us | 25 | ||
| Average coil consumption ≤20°C | ||||
| in-rush | W | 3.2 | ||
| holding | W | 3.2 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 3600 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 12 | ||
| max | ms | 21 | ||
| Opening NO | ||||
| min | ms | 9 | ||
| max | ms | 18 | ||
| Closing NC | ||||
| min | ms | 17 | ||
| max | ms | 26 | ||
| Opening NC | ||||
| min | ms | 7 | ||
| max | ms | 17 | ||
| in DC | ||||
| Closing NO | ||||
| min | ms | 18 | ||
| max | ms | 25 | ||
| Opening NO | ||||
| min | ms | 2 | ||
| max | ms | 3 | ||
| Closing NC | ||||
| min | ms | 3 | ||
| max | ms | 5 | ||
| Opening NC | ||||
| min | ms | 11 | ||
| max | ms | 17 | ||
| UL technical data | ||||
| Full-load current (FLA) for three-phase AC motor | ||||
| at 480V | A | 7.6 | ||
| at 600V | A | 6.1 | ||
| Yielded mechanical performance | ||||
| for single-phase AC motor | ||||
| 110/120V | HP | 0.5 | ||
| 230V | HP | 1.5 | ||
| for three-phase AC motor | ||||
| 200/208V | HP | 2 | ||
| 220/230V | HP | 3 | ||
| 460/480V | HP | 5 | ||
| 575/600V | HP | 5 | ||
| General USE | ||||
| Contactor | ||||
| AC current | A | 20 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000066 - Power contactor, AC switching | |||
