GE2500ET4
LOVATO ELECTRIC
1

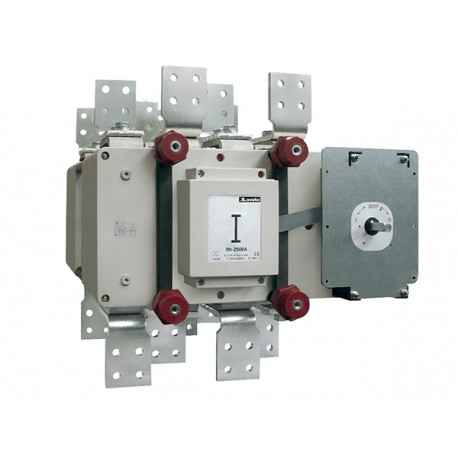

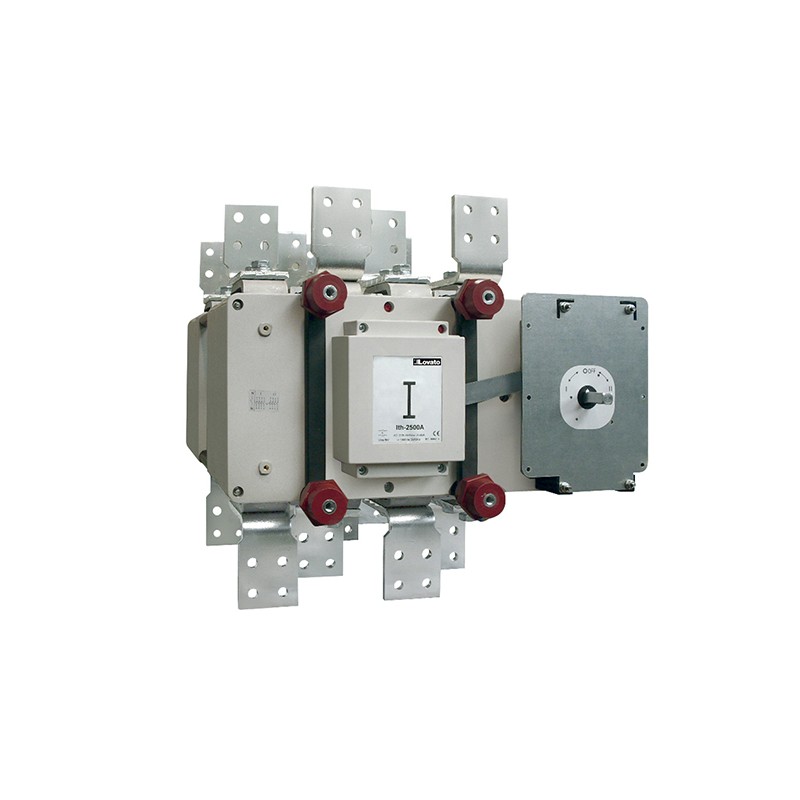

Conmutador para fondo armario tetrapolar 2500A
INTERRUPTOR DE CAMBIO DE CUATRO POLOS, 2500A
Interruptores Seccionadores - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | GE2500ET4 |
Peso [g] | 119000 |
Unidades de embalaje | 1 |
Cantidad de pedido multi-embalaje | 1 |
Dimensiones de embalaje [mm] | 700X710X900 |
Volumen [cm³] | 447300 |
Código de barras [EAN13] | 8013975245842 |
Código HS | 85365080 |
Product designation | Changeover switch | |||
Product type designation | GE | |||
Number of poles | Nr. | 4 | ||
Operating voltage type | AC | |||
Contact characteristics | ||||
IEC Conventional free air thermal current Ith | A | 2500 | ||
Rated insulation voltage Ui IEC/EN | V | 1000 | ||
Rated impulse withstand voltage Uimp | kV | 8 | ||
Operating current Ie | ||||
AC21A | ||||
400V | A | 2500 | ||
500V | A | 2500 | ||
690V | A | 2500 | ||
AC22A | ||||
400V | A | 2500 | ||
500V | A | 2000 | ||
690V | A | 1800 | ||
AC23A | ||||
400V | A | 1800 | ||
500V | A | 1250 | ||
690V | A | 1000 | ||
Power dissipation per pole max | W | 213 | ||
Rated operational power AC23A | ||||
400V | kW | 956 | ||
690V | kW | 956 | ||
Reactive power for control of capacitors at | ||||
Rated short time current (1s) Icw (rms) | kA | 50 | ||
Making capacity AC23A 400V | A | 18000 | ||
Breaking capacity AC23A 400V | A | 14400 | ||
Mechanical life | cycles | 600 | ||
Mechanical features | ||||
Operating position | ||||
normal | Vertical plan | |||
allowable | Any | |||
Fixing | Screw | |||
Terminals | ||||
type | Bar | |||
screw | M12 | |||
Tightening torque for terminals | ||||
max | Nm | 45 | ||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +55 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Max altitude | m | 3000 | ||
ETIM classification | ||||
ETIM 8.0 | EC000216 - Switch disconnector |
Título: | Tamaño: | Tipo: |
---|---|---|
PDF CATÁLOGO LOVATO ES.pdf | 164 Mbytes |
