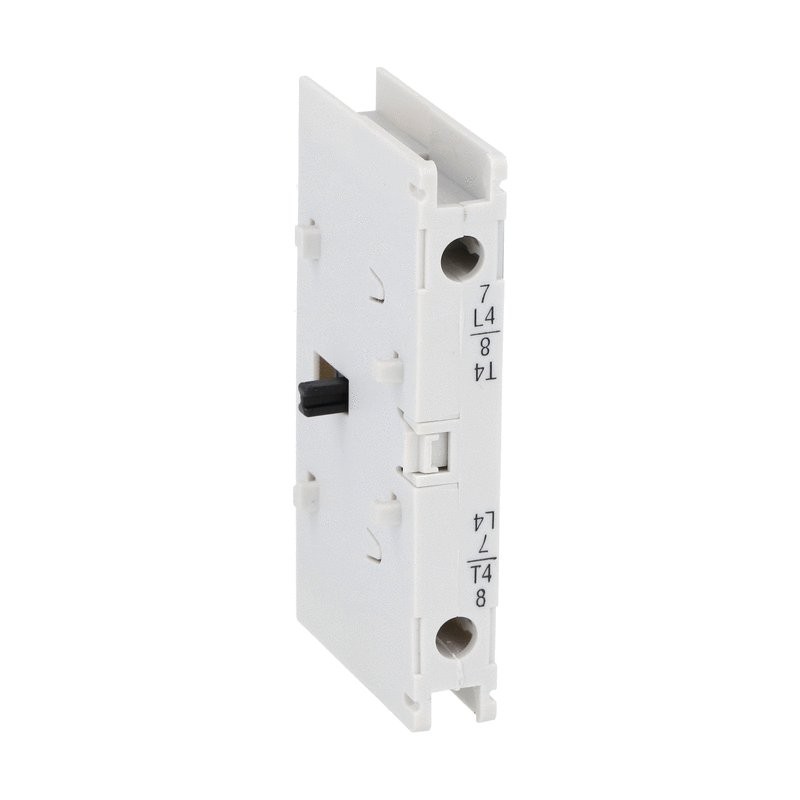

GAX42063SC
LOVATO ELECTRIC
1
Cuarto polo con apertura simultánea al Seccionador 45A Para versiones GA…C
COMPLEMENTO DE CUARTO POLO, OPERACIÓN DE CIERRE SIMULTÁNEO COMO POLOS DE INTERRUPTOR. PARA LA VERSIÓN GA063SC, 63A
Interruptores Seccionadores - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | GAX42063SC |
Peso [g] | 46 |
Unidades de embalaje | 1 |
Cantidad de pedido multi-embalaje | 1 |
Dimensiones de embalaje [mm] | 067X022X094 |
Volumen [cm³] | 139 |
Código de barras [EAN13] | 8013975297438 |
Código HS | 85365080 |
Product designation | Fourth pole add-on | |||
Product type designation | GAX42 | |||
Number of poles | Nr. | 1 | ||
Operating voltage type | AC | |||
Contact characteristics | ||||
IEC Conventional free air thermal current Ith | A | 63 | ||
Rated insulation voltage Ui IEC/EN | V | 1000 | ||
Rated impulse withstand voltage Uimp | kV | 8 | ||
Operating current Ie | ||||
AC21A | ||||
400V | A | 63 | ||
500V | A | 63 | ||
690V | A | 63 | ||
AC22A | ||||
400V | A | 63 | ||
500V | A | 45 | ||
690V | A | 45 | ||
AC23A | ||||
400V | A | 45 | ||
500V | A | 25 | ||
690V | A | 25 | ||
Making capacity AC23A 400V | A | 450 | ||
Breaking capacity AC23A 400V | A | 360 | ||
Mechanical life | cycles | 100000 | ||
Electrical life AC21A | cycles | 15000 | ||
Mechanical features | ||||
Terminals | ||||
type | Pillar | |||
width | mm | 5.6 | ||
height | mm | 6.5 | ||
screw | M4 | |||
tool | Phillips 2 | |||
Tightening torque for terminals | ||||
min | Nm | 1.8 | ||
max | Nm | 2 | ||
min | Ibin | 1.3 | ||
max | Ibin | 1.5 | ||
Conductor section | ||||
IEC min | mm² | 0.75 | ||
IEC max | mm² | 16 | ||
AWG/kcmil min | 18 | |||
AWG/kcmil max | 6 | |||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +55 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Max altitude | m | 3000 | ||
ETIM classification | ||||
ETIM 8.0 | EC002498 - Accessories/spare parts for low-voltage switch technology |
