KNE2L11
LOVATO ELECTRIC
1

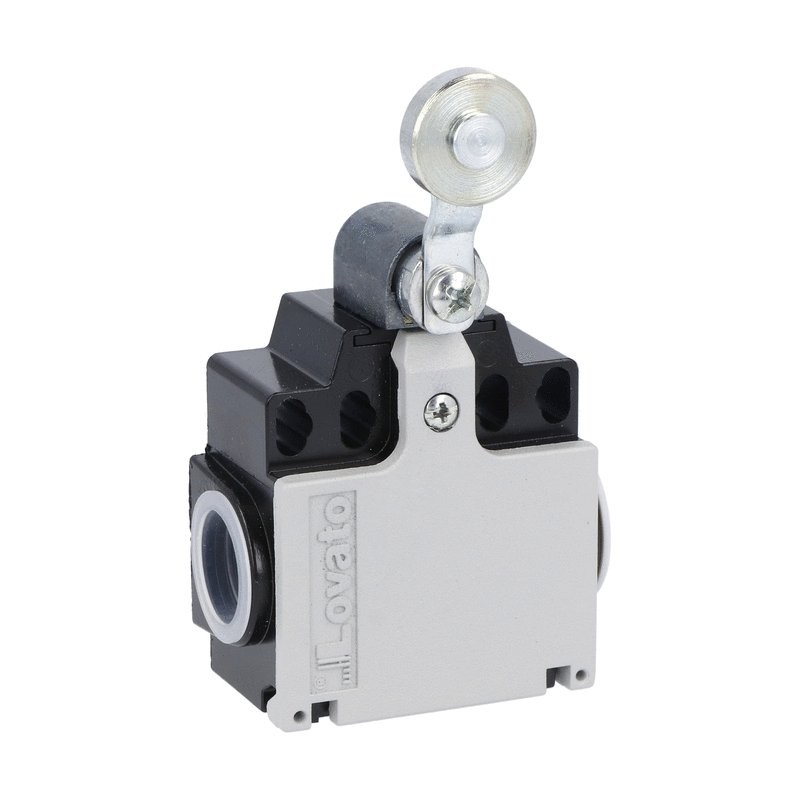

Final de carrera Metálico De palanca con roldana de Metal 19x5 Acción Lenta 1 NA 1 NC
INTERRUPTOR DE LÍMITE, SERIE K, ÉMBOLO DE PALANCA DE RODILLOS, ENTRADA DE CABLE DE 2 LADOS. DIMENSIONES COMPATIBLES CON EN 50047, CUERPO METÁLICO, CONTACTOS 1NO+1NC SLOW BREAK. RODILLO METÁLICO
Finales de Carrera Micros Pedales - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | KNE2L11 |
Peso [g] | 248 |
Unidades de embalaje | 1 |
Cantidad de pedido multi-embalaje | 5 |
Dimensiones de embalaje [mm] | 120X045X060 |
Volumen [cm³] | 324 |
Código de barras [EAN13] | 8013975128381 |
Código HS | 85365080 |
Product designation | Roller lever plunger | |||
Product type designation | KNE | |||
General characteristics | ||||
Material | ||||
Housing | Aluminium-zinc alloy | |||
Roller | Metal | |||
Contact characteristics | ||||
Type of contact | 1NO+1NC Slow action | |||
Thermal current Ith | A | 10 | ||
IEC/EN 60947-5-1 designation | A300 Q300 | |||
Rated insulation voltage Ui | V | 440 | ||
Rated impulse withstand voltage Uimp | kV | 4 | ||
Short-circuit protection with fuse | Class/A | 10 gG/SC QUICK FUSE | ||
Switching speed | ||||
min | m/s | 0.5 | ||
max | m/s | 1.5 | ||
IEC Conventional free air thermal current Ith | A | 10 | ||
Resistance per pole (average value) | mΩ | <10 | ||
Mechanical features | ||||
Operating head fixing | Locking bayonet insert | |||
Operating torque | ||||
Ncm | 3 | |||
ozin | 4.25 | |||
Tightening torque (Max) | ||||
Switch fixing | ||||
Nm | 2.5 | |||
lbin | 22.1 | |||
Contact terminals | ||||
Nm | 0.8 | |||
lbin | 7 | |||
Body lid screw fixing | ||||
Nm | 0.8 | |||
lbin | 7 | |||
Conductor section | ||||
AWG/Kcmil | ||||
min | 16 | |||
max | 14 | |||
IEC | ||||
min | mm² | 1or 2 | ||
max | mm² | 2.5 | ||
Cable connection | Self-releasing screw terminal | |||
Cable entry | M20 on the sides | |||
Operations | ||||
Mechanical life | cycles | <10000000 | ||
Mechanical operation | cycles/h | 3600 | ||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -25 | ||
max | °C | +70 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Resistance & Protection | ||||
IP degree | ||||
Terminals | IP20 | |||
Body housing | IP65 | |||
Pollution degree | 3 | |||
ETIM classification | ||||
ETIM 8.0 | EC000030 - End switch |
Título: | Tamaño: | Tipo: |
---|---|---|
KNE2L11 KNE2L11 09-Finales-de-carrera-microinterruptores-e-interruptores-de-pedal-09-enero-2018_ES.pdf | 2 Mbytes |
