CN6322220
LOVATO ELECTRIC
1

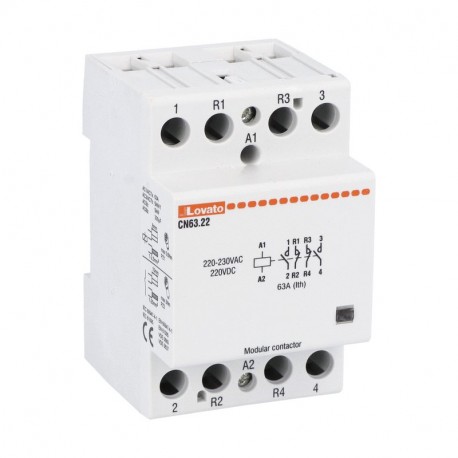

Contactor modular 2NC + 2NA 63A 220V AC/DC
Contactor modular, de tres o cuatro polos, 63A AC1, 220...230VAC (2NO+2NC)
Contactores Modulares y Accesorios - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | CN6322220 |
Peso [g] | 440 |
Unidades de embalaje | 5 |
Cantidad de pedido multi-embalaje | 5 |
Dimensiones de embalaje [mm] | 275X070X090 |
Volumen [cm³] | 355.3 |
Código de barras [EAN13] | 8013975157381 |
Código HS | 85365080 |
Product designation | MODULAR CONTACTOR | |||
Product type designation | CN | |||
Operating voltage type | AC/DC | |||
Number of poles | 4 | |||
Number of DIN modules | 3 | |||
Electrical features | ||||
IEC Conventional free air thermal current Ith | A | 63 | ||
Operational current AC1 and AC-7a ≤400V | A | 63 | ||
Operational current AC3 and AC-7b ≤400V | A | 30 | ||
Rated insulation voltage Ui IEC/EN | V | 440 | ||
Rated impulse withstand voltage Uimp | kV | 4 | ||
Minimum switching capacity | ≥17V ≥50mA | |||
Power dissipation per pole (average value) Ith | W | 8 | ||
Control circuit | ||||
Auxiliary rated supply voltage Us | 220VAC/VDC | |||
Auxiliary contacts | ||||
NO | Nr. | 2 | ||
NC | Nr. | 2 | ||
Average coil consumption ≤20°C | ||||
in-rush | W | 5 | ||
holding | W | 5 | ||
Operating voltage | ||||
pick-up | ||||
min | %Us | 85 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 75 | ||
Operating times | ||||
Average time | ||||
Closing NO | ||||
min | ms | 15 | ||
max | ms | 20 | ||
Opening NO | ||||
min | ms | 35 | ||
max | ms | 45 | ||
Operations | ||||
Mechanical life | cycles | 3000000 | ||
Electrical life AC3 | cycles | 150000 | ||
Electrical life AC1 | cycles | 100000 | ||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -15 | ||
max | °C | 55 | ||
Storage temperature | ||||
min | °C | -30 | ||
max | °C | 80 | ||
Max altitude | m | 2000 | ||
Mechanical features | ||||
Fixing | DIN rail 35mm | |||
Tightening torque for coil terminal | ||||
max | Nm | 0.6 | ||
max | lbin | 0.6 | ||
Tightening torque for terminals | ||||
max | Nm | 2 | ||
max | lbin | 1.48 | ||
Conductor section | ||||
Coil terminal | ||||
min | mm² | 1 | ||
max | mm² | 2.5 | ||
Power terminal | ||||
min | mm² | 1.5 | ||
max | mm² | 16 | ||
Terminals tool | PZ2 | |||
Weight | g | 425 | ||
Resistance & Protection | ||||
Frontal IP degree | IP20 | |||
Pollution degree | 3 |
