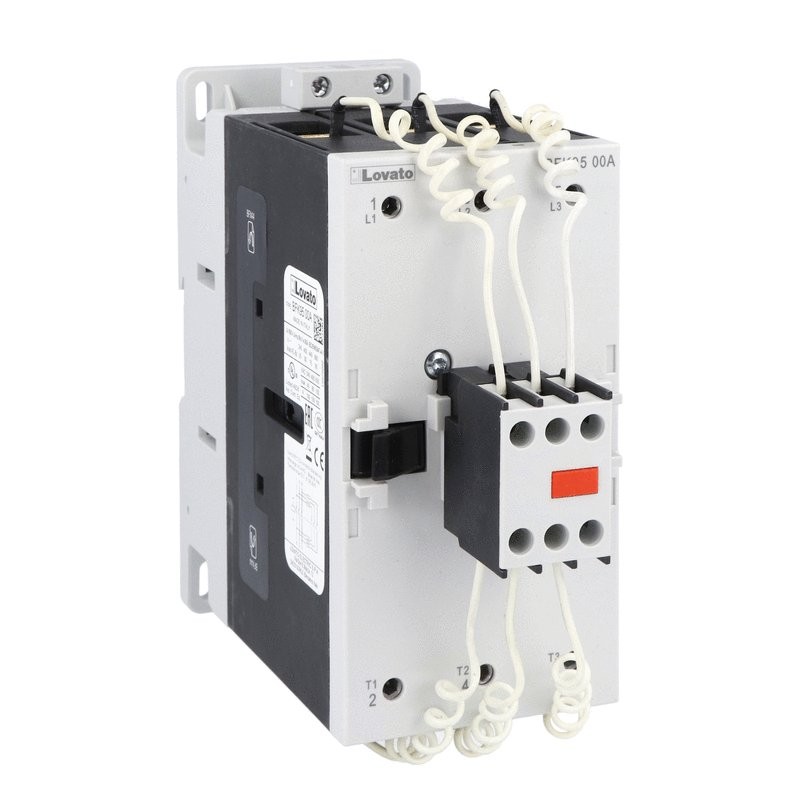

BFK9500A12060 LOVATO CONTACTOR PARA PFC 60KVAR 120VAC 60HZ
BFK9500A12060
LOVATO ELECTRIC
CONTACTOR PARA PFC 60KVAR 120VAC 60HZ
CONTACTOR PARA CORRECCIÓN DEL FACTOR DE POTENCIA CON CIRCUITO DE CONTROL DE CA, TIPO BFK (INCLUIDAS LAS RESISTENCIAS LIMITANTES), POTENCIA OPERATIVA MÁXIMA IEC 400V = 60KVAR, BOBINA 120VAC 60HZ
Contactores Industriales y accesorios - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más vendidos
▲Más Información
▲| Código de pedido | BFK9500A12060 |
| Peso [g] | 2300 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 1 |
| Dimensiones de embalaje [mm] | 238X114X188 |
| Volumen [cm³] | 5101 |
| Código de barras [EAN13] | 8013975243589 |
| Código HS | 85365080 |
CCC
cULus
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BFK95 | |||
| Contact characteristics | ||||
| Number of poles | Nr. | 3 | ||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 140 | ||
| Rated operational power AC-6b (T≤40°C) | ||||
| 230V | kvar | 34 | ||
| 400V | kvar | 60 | ||
| 440…480V | kvar | 75 | ||
| 690V | kvar | 80 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 760 | ||
| Protection fuse | ||||
| gG (IEC) | A | 125 | ||
| Making capacity (RMS value) | A | 1200 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 1100 | ||
| 500V | A | 775 | ||
| 690V | A | 745 | ||
| Resistance per pole (average value) | mΩ | 0.45 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 8.8 | ||
| Tightening torque for terminals | ||||
| min | Nm | 6 | ||
| max | Nm | 7 | ||
| min | Ibin | 4.4 | ||
| max | Ibin | 5.2 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | Prodotti finiti | ||
| max | Ibin | Prodotti finiti | ||
| Max number of wires simultaneously connectable | Nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 70 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 70 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 front | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 2095 | ||
| Operations | ||||
| Mechanical life | cycles | 15000000 | ||
| Electrical life | cycles | 400000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | cycles | 400000 | ||
| mechanical load | cycles | 15000000 | ||
| EMC compatibility | yes | |||
| Rated AC voltage at 60Hz | V | 120 | ||
| AC coil operating | ||||
| AC operating voltage | ||||
| of 60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 80 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 20 | ||
| max | %Us | 55 | ||
| Dissipation at holding ≤20°C 50Hz | W | 6.5 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 1500 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 16 | ||
| max | ms | 32 | ||
| Opening NO | ||||
| min | ms | 9 | ||
| max | ms | 24 | ||
| UL technical data | ||||
| General USE | ||||
| Contactor | ||||
| AC current | A | 140 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | 80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001079 - Capacitor contactor | |||
Datasheet - PDF
