SA2DG600M2R
LOVATO ELECTRIC
1

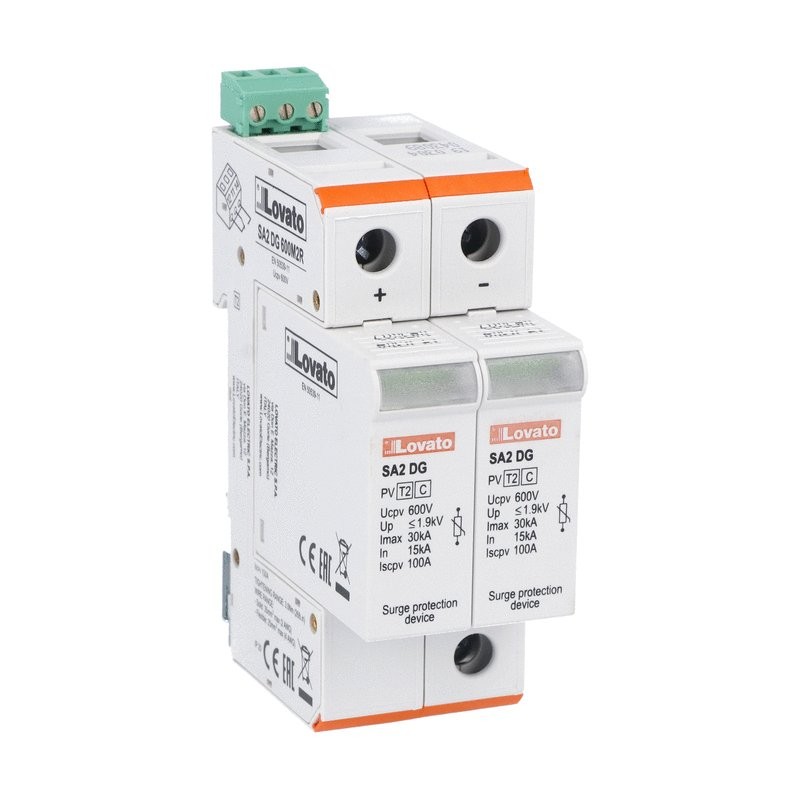

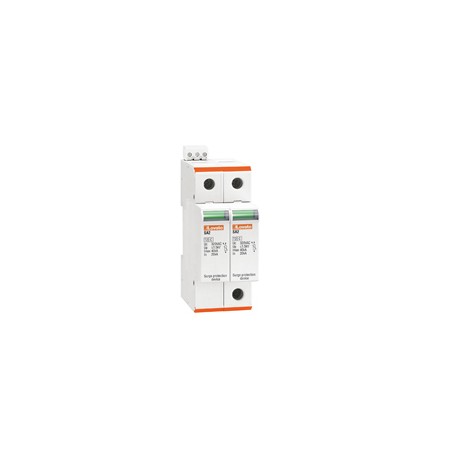

Descargador de Sobretensión con cartucho extraíbles (Tipo 2 para aplicaciones fotovoltaicas) +, -, PE 40kA por polo
DISPOSITIVO DE PROTECCIÓN CONTRA SOBRETENSIONES TIPO 2 PARA APLICACIONES FOTOVOLTAICAS CON CARTUCHO ENCHUFABLE, CLASIFICACIÓN DE CORRIENTE EN CORTOCIRCUITO ISCPV 100A, +, -, PE. CON CONTACTO REMOTO
Descargadores de Sobretensión - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | SA2DG600M2R |
Peso [g] | 288 |
Unidades de embalaje | 1 |
Cantidad de pedido multi-embalaje | 1 |
Dimensiones de embalaje [mm] | 109X039X074 |
Volumen [cm³] | 314.574 |
Código de barras [EAN13] | 8013975210314 |
Código HS | 85365080 |
Product designation | Surge Protection Device (SPD) | |||
Product type designation | SA2 | |||
Operating voltage type | DC | |||
Application | DC Power lines | |||
Number of DIN modules | 2 | |||
Relay output | Yes | |||
SPD according to EN50539-11 | Yes | |||
Electrical features | ||||
Rated operational voltage DC | VDC | 600 | ||
Maximum continuous voltage Ucpv | V | 600 | ||
IEC Maximum discharge current Imax 8/20 (L-N/N-PE) | kA | 30 | ||
IEC Voltage protection level Up (L-N/N-PE) | kV | <1.9 | ||
Tripping time ta (L-N/N-PE) | ns | <25 | ||
Thermal insulation protection | YES | |||
Backup protection fuse (IEC) with Isc >100A | Class/A | 100A gPV | ||
Maximum short circuit current Iscpv | kA | 0.1 | ||
Status indicator - operating / end of life | Frontal indication/Aux contact | |||
Ambient conditions | ||||
Operating temperature | ||||
min | °C | -40 | ||
max | °C | 80 | ||
Max altitude | m | 2000 | ||
Mechanical features | ||||
Fixing | Din rail | |||
Conductor section Flexible max (IEC) | mm² | 25 | ||
Conductor section Rigid max (IEC) | mm² | 35 | ||
Weight | g | 325 | ||
Relay output for remote status indication | ||||
Rated current at | ||||
125V AC | A | 3 | ||
12V DC | A | 0.5 | ||
125V DC | A | 0.2 | ||
250V DC | A | 0.1 | ||
ETIM classification | ||||
ETIM 8.0 | EC000941 - Surge protection device for power supply systems |
Título: | Tamaño: | Tipo: |
---|---|---|
SA2DG600M2R SA2DG600M2R 14-Descargadores-de-sobretensi_n-14-enero-2018_ES.pdf | 758 Kbytes |
