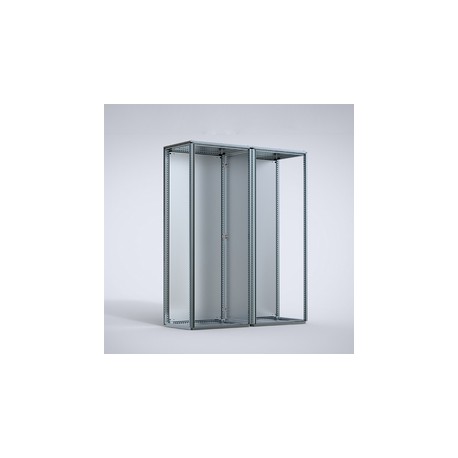

SPD2008 nVent HOFFMAN Placa separadora, 2000x800 SPD2008

Descripción:

Separa dos armarios unidos. Para separación EMC se debe montar la junta SPDEG.

Material:

Acero cincado de 1.5 mm.

Cantidad por embalaje: :

1 pieza.

Instrucciones de montaje:

Añada soportes CCJ para su montaje.

Feature:

Zinc plated steel EMC separation plate for mild steel combinable floor standing enclosures.

Advantage:

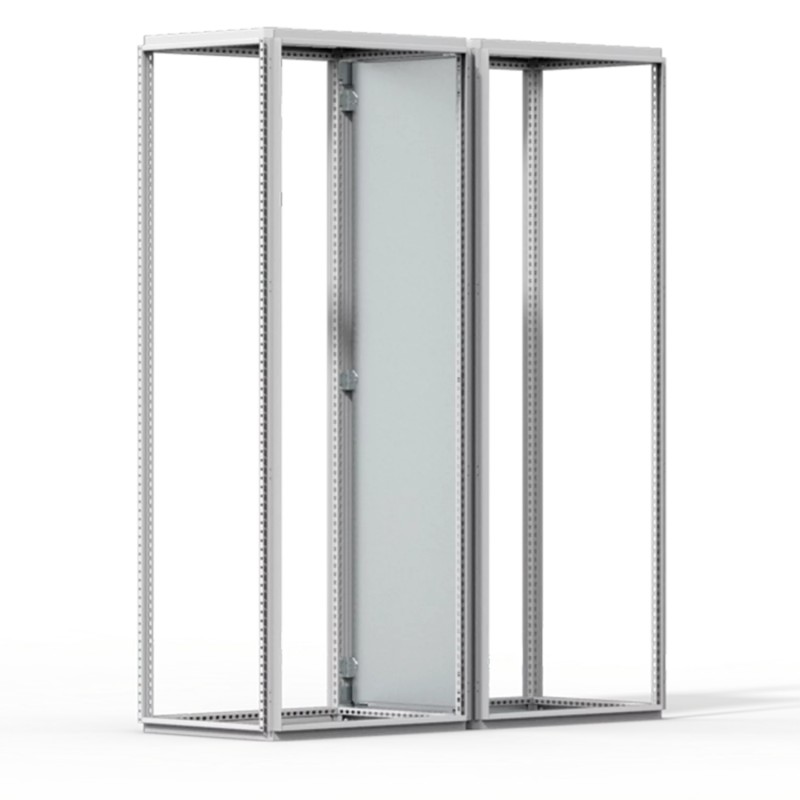

The plate can be mounted easily between two bayed enclosures providing segregation. Protection degree IP 43 and EMC tested, when mounted with the separation plate gasket, SPDEG.

Benefit:

The enclosure assembly can be easily segregated creating individual spaces for components to be mounted. These areas are commonly used to group component types, for example power in one section and control in another. These spaces can also be used when some components are more sensitive to temperature than others, allowing better control of the enclosure's thermal management.

Comment:

Separation brackets, CCJ, are required in order to mount the separation plate. If the separation plate is mounted within an enclosure assembly, the internal corner baying kit, CCM, and/or external baying brackets, CCE, should be used instead of the internal baying brackets, CCI. Mounting the EMC separation gasket, SPDEG, will increase the EMC performance on either side of the plate. The separation plate can not be mounted within stainless steel enclosures.
