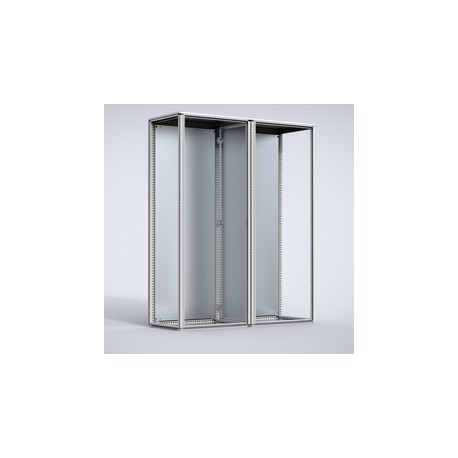

SPD2004 nVent HOFFMAN Placa separadora, 2000x400 SPD2004

Descripción:

Divide dos MCS/MCD armarios combinados.

Material:

Acero cincado de 1,5 mm.

Instrucciones de montaje:

IP 43I Tipo1 El sellado se puede obtener usando la junta de estanqueidad SPDG. Se requieren los soportes CCJ para montar la SPD dentro del armario. Para unir armarios, use el CCM y el CCI. Para protección EMI se debe usar la junta SPDEG.

Cantidad por embalaje: :

1 pieza.

Feature:

Zinc plated steel separation plate for mild steel combinable floor standing enclosures.

Advantage:

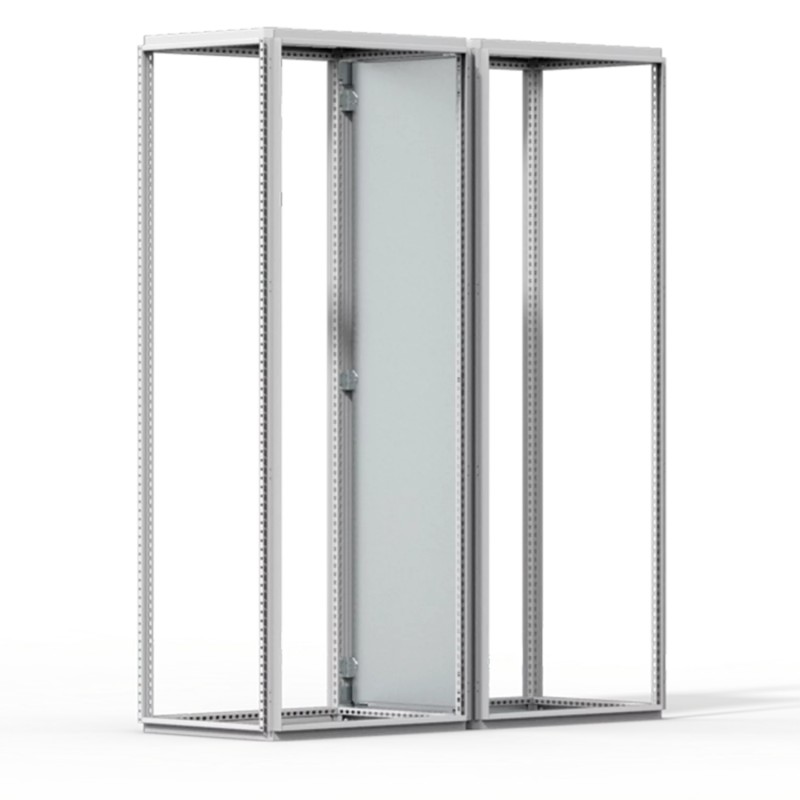

The plate can be mounted easily between two bayed enclosures providing segregation. Protection degree IP 43 tested, when mounted with the separation plate gasket, SPDG.

Benefit:

The enclosure assembly can be easily segregated creating individual spaces for components to be mounted. These areas are commonly used to group component types, for example power in one section and control in another. These spaces can also be used when some components are more sensitive to temperature than others, allowing better control of the enclosure's thermal management.

Comment:

Separation brackets, CCJ, are required in order to mount the separation plate. If the separation plate is mounted within an enclosure assembly, the internal corner baying kit, CCM, and external baying brackets, CCI, should be used. Mounting the separation gasket, SPDG, will increase the protection degree on either side of the plate to IP 43. The separation plate can not be mounted within stainless steel enclosures.
