DHP060 nVent HOFFMAN Perfiles horizontales, 600 DHP060

Descripción:

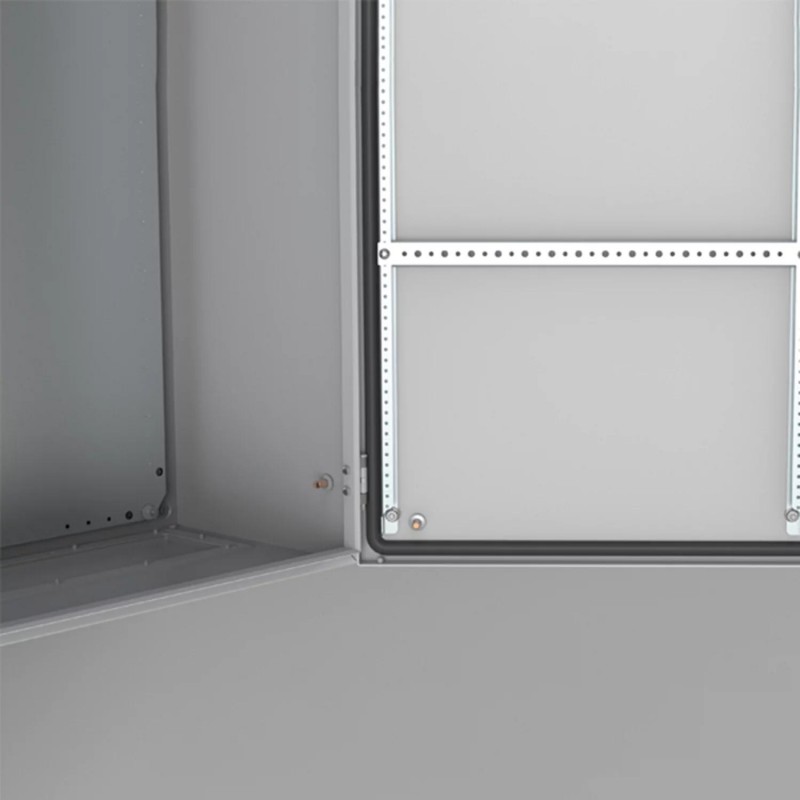

Horizontal profiles with 25 mm hole pattern of 4.5 mm and 6.5 mm of diameter for the attachment and installation of equipment. Theyfit directly onto the MMDP door mounting profiles. They can also be mounted vertically onto two horizontal profiles. For doors with espagnolette locking system, profiles must be cut where indicated.

Material:

1.5 mm galvanized steel.

Cantidad por embalaje: :

5 pieces with mounting accessories.

Feature:

Galvanised steel door horizontal mounting profiles for wall mounted enclosure doors.

Advantage:

Further mounting possibilities are created horizontally on the enclosure's door to support other enclosure accessories and electrical components.

Benefit:

Customers can install accessories, electrical components and cables exactly where they desire.

Comment:

The door profiles MMDP, are required before the horizontal profiles can be mounted which are supplied as standard with mild steel wall mounted enclosures over 500mm in height. The profiles have to be ordered as an accessory for stainless steel wall mounted enclosures. The horizontal profiles can be used to reinforce the enclosure's door when exposed to heavy loads.
