CLPF1000
ELDON
4
Disponible Envío el hoy

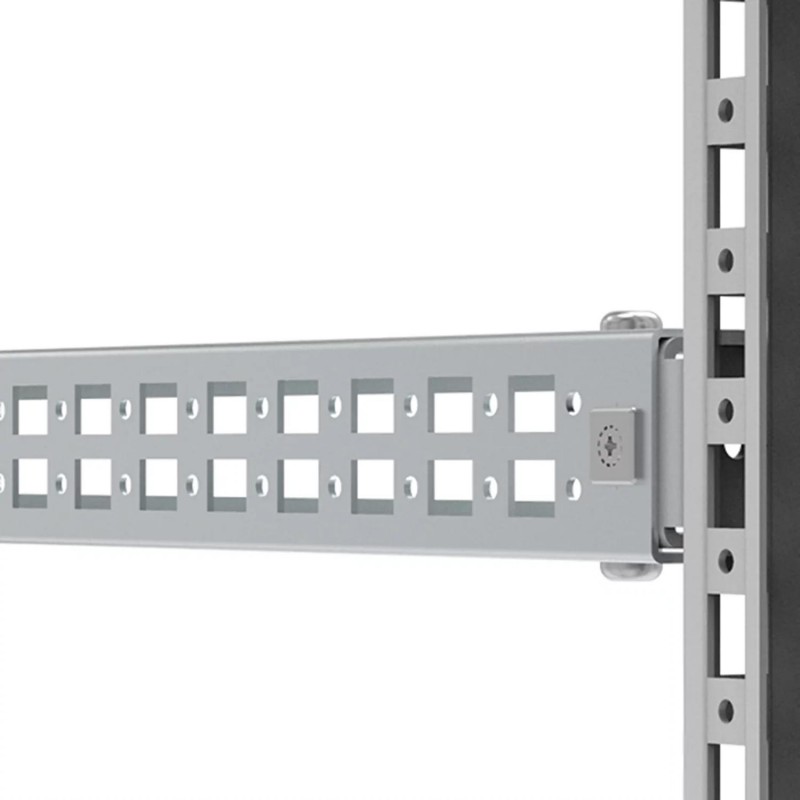

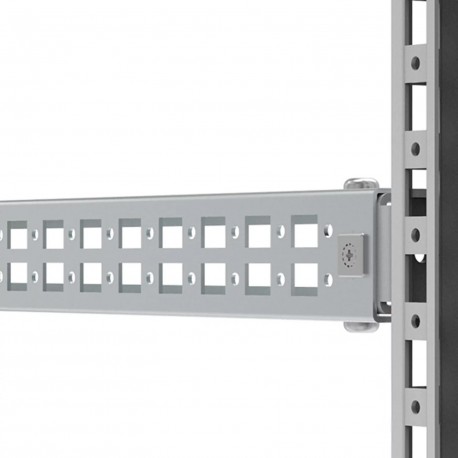

Perfil de montaje , 1000 CLPF1000
Perfil fijación rápida, 1000, galvanizado. 4 unidades
The mounting profiles can be fixed in all directions, providing full flexibility for the mounting of accessories, components, and other equipment.
Sistemas de armarios eléctricos > Perfil (armario de control)
Armarios Autoportantes de acero
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | The CLPF profile system is a 40 mm wide and 25 mm high profile, which can be mounted in all directions on the enclosure's frame. It can also be used in combination with the CLPK and the VB profiles. By turning the profile it can be used as a standard CP20/40 profile in combination with GLM 40/6 sliding nut, to mount installation material which needs adjusting in depth. The profiles, when mounted onto the enclosure's frame are flush with the enclosure's profiles. Two rows of hole patterns for cage nut fixing and self tapping screws are provided. For 90 mm wide profiles two profiles can be mounted next to each other. |
Material: | Zinc plated steel. |
Cantidad por embalaje: : | 4 profiles including snap-line for fixing. |
Feature: | Mounting profiles can be installed using the interior hole pattern of a floor standing enclosure |
Advantage: | Mounting profiles can be fixed in all directions extending the enclosures interior profiles to support enclosure accessories and electrical components. |
Benefit: | Customers can install accessories and electrical components exactly where they desire, creating the best enclosure solution possible. |
Título: | Tamaño: | Tipo: |
---|---|---|
CLPF1000 CLPF1000 ES_CLPF1000.pdf | 112 Kbytes | |
Descargar catálogo general |
