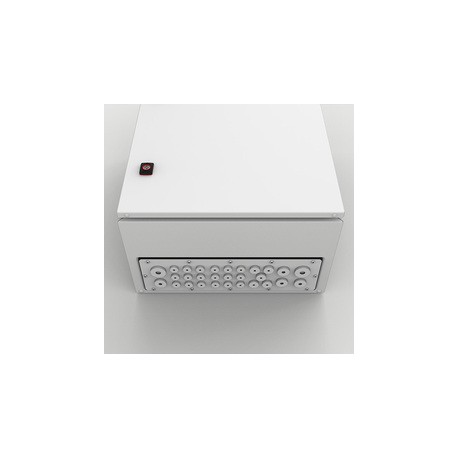

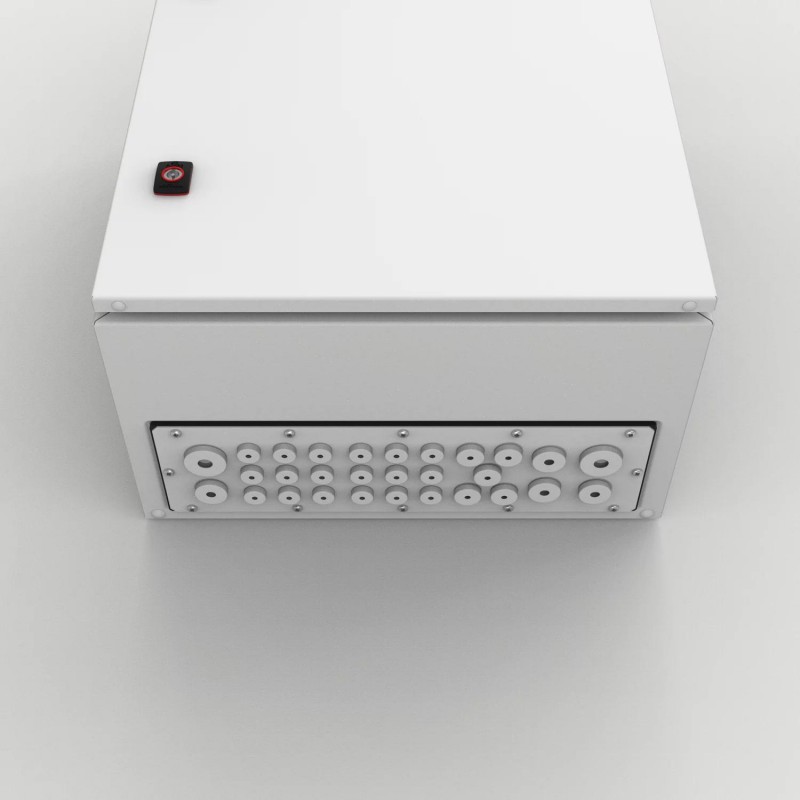

CED25 nVent HOFFMAN Pasacables con doble prot. M25 CED25

Descripción:

El pasamuros de goma es muy fácil de usar. El montaje no necesita herramientas, lo que implica menor coste de mano de obra. La membrana a presión proporciona un sellado permanente hasta que se introduce un cable o tubo. Adecuado para taladros en materiales de 0,5 a 4 mm de espesor.

Material:

EDPM, libre de halógenos.

Resistencia a la temperatura:

-40ºC a +110ºC.

Acabado:

RAL 7035.

Protección:

IP 67.

Feature:

Thermoplastic elastomer cable gland with a double layer sock surrounding the cable.

Advantage:

The protection degree is based on an exterior and interior layer that work independently.

Benefit:

The protection degree is maintained if the outside layer fails due to damage or external circumstances.

Comment:

The double layer sock is the optimal solution if the outside layer is exposed to external circumstances such as high pressure water. A potential disadvantage of the double layer however is that cables only pass through straight. A single layer sock is available (CES) to allow cable passing through with an angle but the protection degree might be at risk if this single layer fails.
