MSMSM1006 nVent HOFFMAN Marco modular, 1000x600, para murales

Descripción:

Dos perfiles verticales sencillos, que se pueden utilizar para las cubiertas frontales y para el montaje de componentes. Una solución rentable para los fabricantes de cuadros, ya que reduce el tiempo de montaje y, además, permite realizar el montaje fuera del armario. La altura útil de las tapas frontales es, Altura - 100 mm.

Material:

Acero de 1.5 mm.

Acabado:

RAL 7035.

Cantidad por embalaje: :

1 kit.

Instrucciones de montaje:

Para montar en armarios MAS y ASR.

Feature:

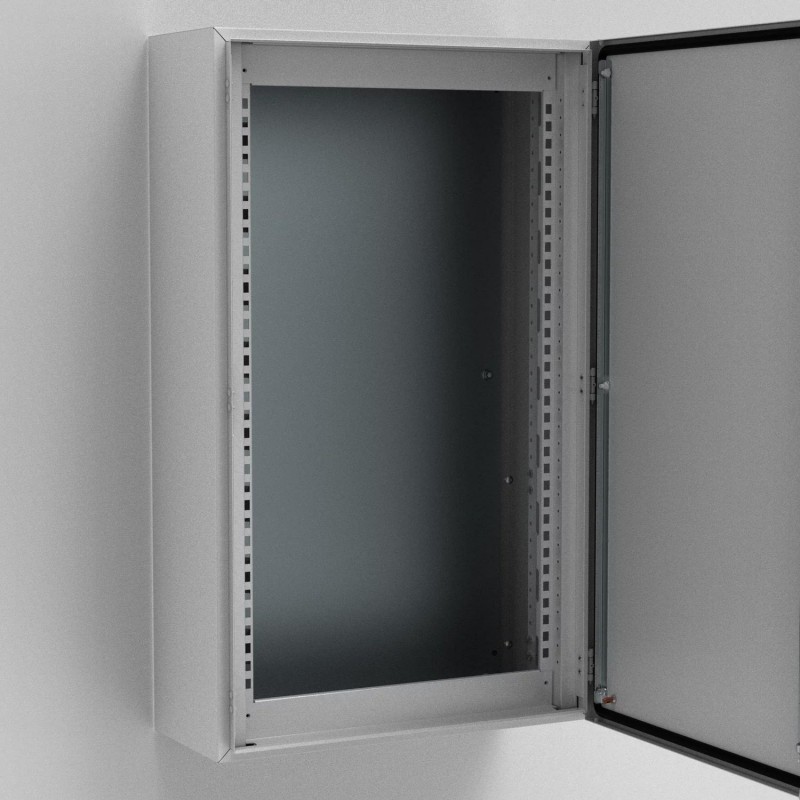

Mild steel modular system frame for wall mounted enclosures, with two mounting levels, the first for mounting front panels and the second for installing equipment .

Advantage:

A flexible solution that allows customers to design a customized power distribution enclosure solution made up of DIN rails and adjustable mounting plates, to meet customer specific requirements.

Benefit:

The frame provides customers with a cost effective solution for small sized power distribution panels. The frame ensures that both modular and non-modular components can be installed into the same enclosure. Customer's can assembly the frame outside of the enclosure, if required, which saves installation time as well as labour cost.
