MSFCP2006R5
ELDON
1
Disponible Envío el hoy
Perfiles tapas front, 2000x600, 2 perf. horizontales + 2 perf. verticales

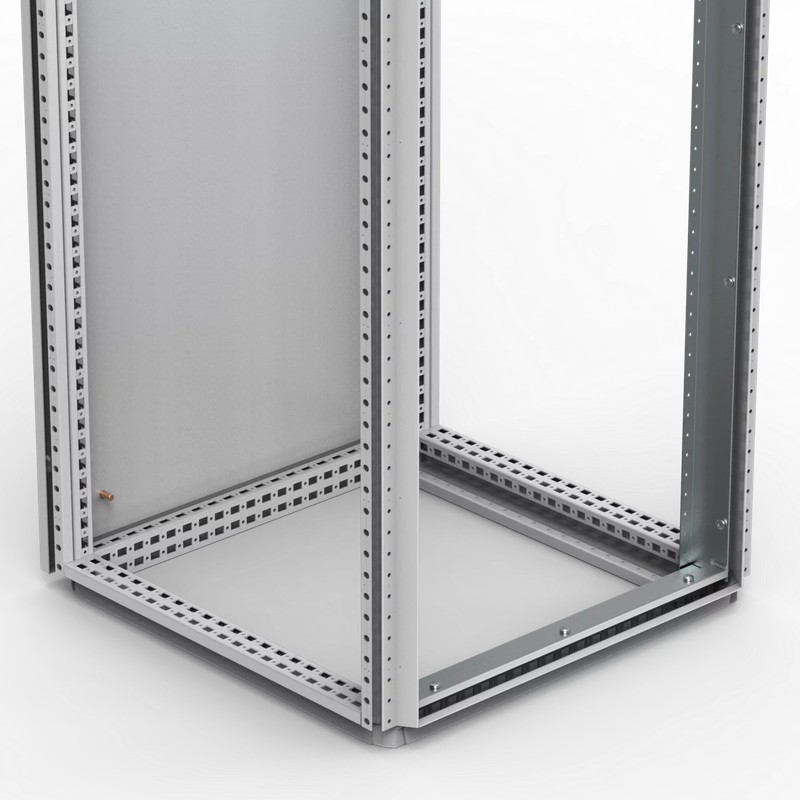

The mild steel frame for front panels, MSFCP, is a flexible solution that allows for the creation of a customized power distribution enclosure with plain and/or slotted front panels. The frame enhances both the aesthetics of the enclosure as well as operator safety.
Sistemas de armarios eléctricos > Panel frontal (armario de control)
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Front frame built up by two vertical and two horizontal profiles. To be covered by front panels MSMBP or MSMCP. |
Material: | 1.5 mm galvanized steel. |
Acabado: | RAL 7035 structured powder coating. |
Suministro: | 2 vertical profiles, top and bottom profiles, and mounting material. |
Feature: | Mild steel frame for front panels in floor standing enclosures. |
Advantage: | A flexible solution that allows customers to create customized power distribution enclosure solutions made up of plain and/or slotted front panels to meet customer specific requirements. |
Benefit: | The frame provides customers with a flexible solution, as it can be adapted especially for their components using both plain and slotted cover plates. The plates ensure that both modular and non-modular components can be installed into the same enclosure. The frame improves the aesthetics of the enclosure while providing a safe solution for operators, even when the external door is open. |
Comment: | Plain (MSMBP) and/or slotted (MSMCP) front panels must be mounted, in order to completely cover the front of the frame. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSFCP2006R5 MSFCP2006R5 ES_MSFCP1806R5.pdf | 162 Kbytes | |
Descargar catálogo general |
