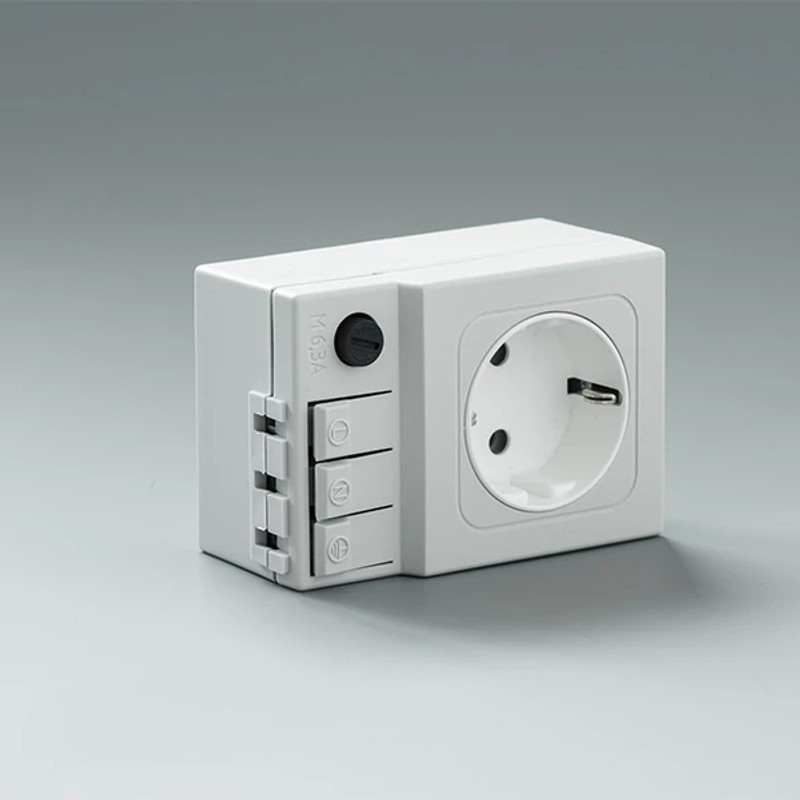

LPS10 nVent HOFFMAN Enchufe con fusible LPS10

Descripción:

Toma de corriente para montaje sobre carril DIN. Conexión por terminales de presión para cableado fácil y rápido.

Dimensiones:

92 mm x 62 mm x 48 mm.

Conexión:

3 terminales de presión para cable rígido o flexilble de 0.5 - 2.5 mm². Fusible integrado de 6.3 A 5x20 mm.

Acabado:

Gris claro.

Material:

Plástico UL94V0.

Cantidad por embalaje: :

1 pieza.

Feature:

Power socket with integrated fuse and pressure clamp connections, available in a range of socket types.

Advantage:

Off the shelf enclosure socket, can be installed into enclosures that are located within different countries, socket type depending. The socket can be easily mounted into enclosures as it is mounted onto DIN rails.

Benefit:

The socket allows the end user to perform both operation and maintenance procedures easily by providing power points if external equipment requires to be plugged in.
