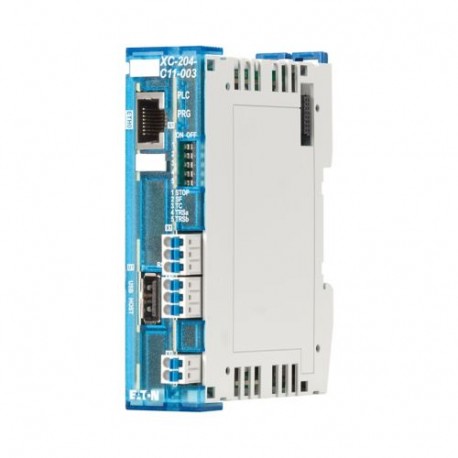

EATON - MOELLER series XC-204-C11-003 199974 Y7-199974 - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

XC-204-C11-003 199974 Y7-199974 EATON ELECTRIC PLC modular XC204, Micro PLC, programable CODESYS 3, USB, Eth..

Referencia: XC-204-C11-003

Código: 199974

Número de catálogo: Y7-199974

Fabricante: EATON - MOELLER series

Descripción:

PLC modular XC204, Micro PLC, programable CODESYS 3, USB, Ethernet, CAN,
Eaton Modular PLC XC204, Micro PLC, programmable CODESYS 3, USB, Ethernet, CAN, RS485, XN300 IO expandable
PLC modular XC204, Grado de protección: IP20, 1 interfaz USB, Protocolo de soporte para: CAN, EtherNet/IP, MODBUS, Otros sistemas de bus, TCP/IP, XN300 IO ampliable

Categorías:

  • Controladores industriales (PLC) > Unidad base de PLC
  • EATON - MOELLER series > Módulos E/S Remotas XN300

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER SERIES

  • Más Información
  • ETIM
  • PDF
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 372,36 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 5 días.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Especificaciones generales

Product Name
Eaton XC200 modular PLC
Catalog Number
199974
EAN
4015081997626
Product Length/Depth
104.2 mm
Product Height
29.3 mm
Product Width
80.3 mm
Product Weight
0.11 kg
Certifications
UL listed
EN 61131
EAC
UL File No.: E205091
CE
cULus Listed
Model Code
XC-204-C11-003

Product specifications

Type
Modular PLC XC204
Air discharge
8 kV/6 kV, Air/contact discharge, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
XSOFT-CODESYS 3
Pollution degree
2
Burst impulse
1 kV, Signal cable
2 kV, Supply cable
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Air pressure
795 - 1080 hPa (operation)
Explosion safety category for dust
None
Environmental conditions
Condensation: prevent with appropriate measures
Explosion safety category for gas
None
Mounting method
Rail mounting possible
Voltage type
DC
Mounting position
Vertical (on horizontal top-hat rail)
Memory capacity
512,000 kByte
Number of channels
0
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-20 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-25 °C
Number of HW-interfaces (industrial ethernet)
1
Number of HW-interfaces (other)
2
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (USB)
1
Number of HW-interfaces (wireless)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
0
Overvoltage category
II
Surge rating
0.5/0.5 kV, Supply cable, balanced/unbalanced), EMC
1 kV, Signal cable, unbalanced, EMC
Emitted interference
40 dB (at 30 - 230 MHz, Class A, radiated, high frequency)
47 dB (at 230 - 1000 MHz, Class A, radiated, high frequency)
Terminal capacity (AWG)
24 - 16
Electromagnetic fields
10 V/m at 0.08 - 1.0 GHz (according to IEC EN 61000-4-3)
1 V/m at 2 - 2.7 GHz (according to IEC EN 61000-4-3)
3 V/m at 1.4 - 2 GHz (according to IEC EN 61000-4-3)
Load current
Max. 6 A per 1.5 mm² (cross-sectional area)
Number of inputs (analog)
0
Connection type
Push-in spring-cage terminal, Connection design in TOP direction
Radiated RFI
10 V
Memory type
RAM
Number of outputs (digital)
0
CPU module type
CORTEX A7@800MHz
Relative humidity
< 95 % (non-condensing)
Degree of protection
IP20
Number of relay outputs
0
Rated operational current (Ie)
1.4 A (supply input)
Functions
Additional program memory possible
Gauge pin
A1 (according to IEC/EN 60947-1)
Vibration resistance
5 - 8.4 / 8.4 -150 Hz, 3,5 mm / 1 g
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Number of time switches - max
1000
Processing time
1.25 microsecond
Static heat dissipation, non-current-dependent Pvs
6.3 W
Stripping length (main cable)
10 mm
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 60 Hz - max
0 VAC
Supply voltage at AC, 60 Hz - min
0 VAC
Supply voltage at DC - max
30 VDC
Supply voltage at DC - min
19.2 VDC
Heat dissipation details
The max. heat dissipation is specified as the maximum power produced inside the device's housing.
Insulating material group
I
Terminal capacity (flexible)
0.2 - 1.5 mm², H 07V-K
Interfaces
ETH
CAN
RS485
XN300
System accessory
Yes
Model
Modular
Number of inputs (digital)
0
Voltage dips
20 ms
10 ms
Protocol
CAN
EtherNet/IP
MODBUS
Other bus systems
TCP/IP
Rated operational voltage
24 V
160 V (terminations)
Terminal capacity
0.25 - 0.75 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
Terminal capacity (flexible with ferrule)
0.25 - 1.5 mm², with ferrules without plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
0.25 - 1.5 mm², with ferrules with plastic collar according to DIN 46228-1 (ferrules crimped gas-tight)
Terminal capacity (solid)
0.2 - 1.5 mm², H07V-U

ETIM for 199974 Controladores lógicos programables PLC (EC000236)

CaracterísticaTensión de alimentación 50 Hz CA (EF007532)
Valor0 V
CaracterísticaTensión de alimentación 60 Hz CA (EF007533)
Valor0 V
CaracterísticaTensión de alimentación CC (EF007534)
Valor19.2 V
CaracterísticaTipo de tensión de alimentación (EF002991)
ValorCC
CaracterísticaNúmero máximo de salidas de relé (EF007348)
Valor0
CaracterísticaNúmero máximo de conmutadores de tiempo (EF007349)
Valor1000
CaracterísticaModelo (EF000010)
ValorModular
CaracterísticaTiempo de procesamiento (1K, instrucción binaria) (EF003004)
Valor0.00125 ms
CaracterísticaNúmero de interfaces HW Ethernet industrial (EF003020)
Valor1
CaracterísticaNúmero de interfaces PROFINET (EF006932)
Valor0
CaracterísticaNúmero de interfaces HW RS232 (EF003021)
Valor0
CaracterísticaNúmero de interfaces HW RS422 (EF003022)
Valor0
CaracterísticaNúmero de interfaces HW RS485 (EF003023)
Valor1
CaracterísticaNúmero de interfaces HW USB (EF003025)
Valor1
CaracterísticaNúmero de interfaces HW en paralelo (EF003026)
Valor0
CaracterísticaNúmero de interfaces HW sin cables (EF006933)
Valor0
CaracterísticaNúmero de interfaces HW Otras (EF003027)
Valor2
CaracterísticaNúmero de salidas analógicas (EF001995)
Valor0
CaracterísticaNúmero de entradas analógicas (EF001994)
Valor0
CaracterísticaNúmero de entradas digitales (EF001992)
Valor0
CaracterísticaNúmero de salidas digitales (EF001993)
Valor0
CaracterísticaCon interfaz óptica (EF003028)
ValorNo
CaracterísticaSoporta el protocolo TCP/IP (EF003050)
ValorSí
CaracterísticaSoporta el protocolo PROFIBUS (EF003052)
ValorNo
CaracterísticaSoporta el protocolo CAN (EF003053)
ValorSí
CaracterísticaSoporta el protocolo EtherCAT (EF017564)
ValorNo
CaracterísticaSoporta el protocolo INTERBUS (EF003054)
ValorNo
CaracterísticaSoporta el protocolo ASI (EF003051)
ValorNo
CaracterísticaSoporta protocolo KNX (EF003055)
ValorNo
CaracterísticaSoporta el protocolo Modbus (EF003057)
ValorSí
CaracterísticaSoporta el protocolo de autopista de datos (EF003058)
ValorNo
CaracterísticaSoporta el protocolo DeviceNet (EF003059)
ValorNo
CaracterísticaSoporta el protocolo SUCONET (EF003060)
ValorNo
CaracterísticaSoporta el protocolo LON (EF003017)
ValorNo
CaracterísticaSoporta el protocolo PROFINET IO (EF007525)
ValorNo
CaracterísticaSoporta el protocolo PROFINET CBA (EF007524)
ValorNo
CaracterísticaSoporta el protocolo SERCOS (EF006657)
ValorNo
CaracterísticaSoporta el protocolo Foundation Fieldbus (EF007522)
ValorNo
CaracterísticaSoporta el protocolo Ethernet/IP (EF007521)
ValorSí
CaracterísticaSoporta el protocolo AS-Interface Safety at Work (EF007519)
ValorNo
CaracterísticaSoporta el protocolo DeviceNet Safety (EF007520)
ValorNo
CaracterísticaSoporta el protocolo de seguridad INTERBUS (EF006662)
ValorNo
CaracterísticaSoporta el protocolo PROFIsafe (EF007526)
ValorNo
CaracterísticaSoporta el protocolo SafetyBUS p (EF007527)
ValorNo
CaracterísticaSoporta el protocolo para otros sistemas bus (EF003062)
ValorSí
CaracterísticaSoporta protocolo para DNP3 (EF016068)
ValorNo
CaracterísticaSoporta protocolo para IEC 60870 (EF016069)
ValorNo
CaracterísticaSoporta protocolo para IEC 61850 Ethernet (EF015389)
ValorNo
CaracterísticaEstándar inalámbrico Bluetooth (EF007178)
ValorNo
CaracterísticaEstándar de radio WLAN 802.11 (EF007179)
ValorNo
CaracterísticaEstándar de radio GPRS (EF008523)
ValorNo
CaracterísticaEstándar de radio GSM (EF008524)
ValorNo
CaracterísticaEstándar de radio UMTS (EF008525)
ValorNo
CaracterísticaLTE (EF009547)
ValorNo
CaracterísticaMaestro de enlace E/S (EF007298)
ValorNo
CaracterísticaComponente del sistema (EF004118)
ValorSí
CaracterísticaRedundancia (EF003156)
ValorNo
CaracterísticaCon pantalla (EF000458)
ValorNo
CaracterísticaTipo de memoria (EF002996)
ValorRAM
CaracterísticaTamaño de la memoria (EF002997)
Valor512000 kByte
CaracterísticaPosibilidad de memoria de programa adicional (EF003029)
ValorSí
CaracterísticaMontaje en carril posible (EF003972)
ValorSí
CaracterísticaMontaje en pared/directo posible (EF007020)
ValorNo
CaracterísticaInstalación frontal posible (EF007016)
ValorNo
CaracterísticaMontaje en rack posible (EF007018)
ValorNo
CaracterísticaApto para funciones de seguridad (EF001597)
ValorNo
CaracterísticaSIL según IEC 61508 (EF009889)
ValorNinguno
CaracterísticaNivel de rendimiento según EN ISO 13849-1 (EF007399)
ValorNinguno
CaracterísticaEquipos asociados (Ex ia) (EF004141)
ValorNo
CaracterísticaEquipos asociados (Ex ib) (EF004142)
ValorNo
CaracterísticaCategoría de protección contra explosiones para gas (EF003997)
ValorNinguno
CaracterísticaCategoría de protección contra explosiones para polvo (EF003998)
ValorNinguno
CaracterísticaCertificado para áreas peligrosas UL clase I (EF017622)
ValorNo
CaracterísticaCertificado para UL clase II (EF017625)
ValorNo
CaracterísticaCertificado para áreas peligrosas UL Clase III (EF017627)
ValorNo
CaracterísticaCertificado para áreas peligrosas UL División 1 (EF017628)
ValorNo
CaracterísticaCertificado para áreas peligrosas UL División 2 (EF017629)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo A (acetileno) (EF017632)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo B (hidrógeno) (EF017633)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo C (etileno) (EF017635)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo D (propano) (EF017636)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo E (polvos metálicos) (EF017637)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo F (polvos carbonosos) (EF017638)
ValorNo
CaracterísticaCertificado para áreas peligrosas grupo G (polvos no conductores) (EF017639)
ValorNo
CaracterísticaAnchura (EF000008)
Valor80.3 mm
CaracterísticaAltura (EF000040)
Valor29.3 mm
CaracterísticaProfundidad (EF000049)
Valor104.2 mm

Últimas Opiniones de Nuestros Clientes

Todas las valoraciones que recibimos de los artículos que ofrecemos son reales y están verificadas. Un pequeño gesto, pero de mucho valor. Por eso, le agradecemos ese minuto que invierte en dejarnos su opinión y calificación sobre los productos, porque nos ayuda a seguir mejorando y a ofrecerle un servicio de todavía mayor calidad.
