> EATON - MOELLER series>Auxiliares de mando y señalización >LT306.022.3 058863 LT306-022-3 ELECTRIC Conector Fast-on 2.8x0.8 mm Para cable 0.5-1 mm²
Anterior producto Siguiente producto

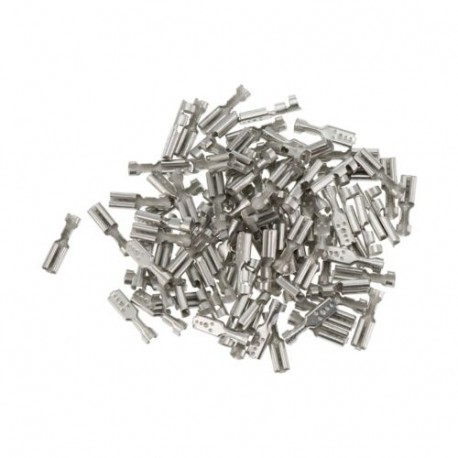

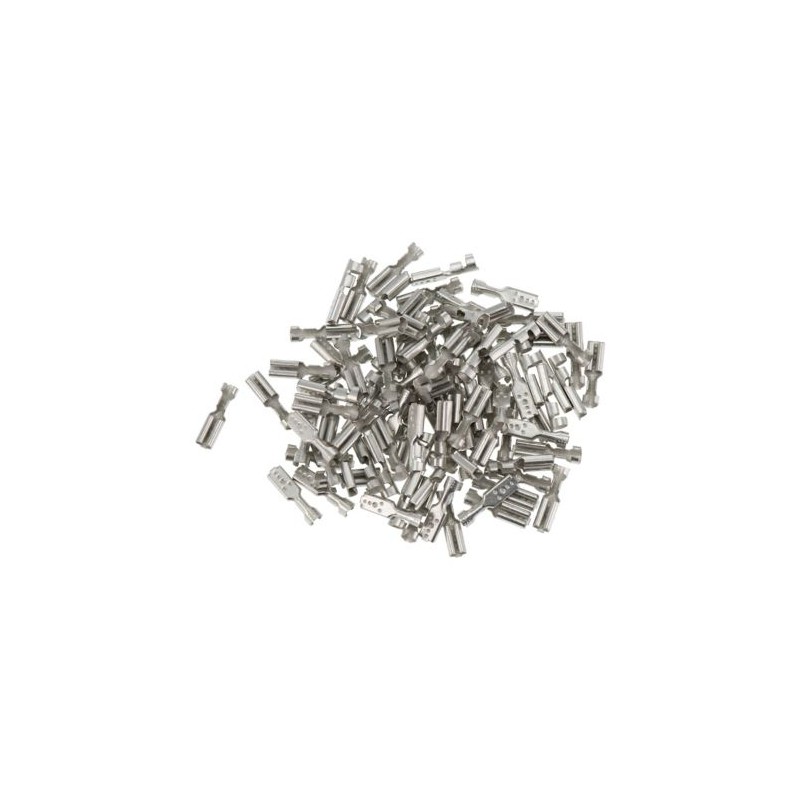

LT306.022.3 058863 LT306-022-3 EATON ELECTRIC Conector Fast-on 2.8x0.8 mm Para cable 0.5-1 mm² Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

LT306.022.3 058863 LT306-022-3 EATON ELECTRIC Conector Fast-on 2.8x0.8 mm Para cable 0.5-1 mm²

LT306.022.3

058863

Y7-58863

EATON-MOELLER

100

Conector Fast-on; 2.8x0.8 mm; Para cable 0.5-1 mm²

Eaton Moeller® series RMQ16 Fast-on connector, 2.8x0.8mm for conductor cross-section 0.5-1mm²

Más detalles


Interruptores de baja tensión > Accesorios para dispositivos de control

Auxiliares de mando y señalización

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $34.60
Precio unitario: $0.35

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series RMQ16 Accessory Fast-on connector
Catalog Number
058863
EAN
4015080588634
Product Length/Depth
14 mm
Product Height
5 mm
Product Width
3 mm
Product Weight
0.2 g
Certifications
UL/CSA certification not required
Model Code
LT306.022.3

General

Accessory/spare part type
Accessory
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
LT306.022.3 Y7-58863 058863 EN_025434.pdf 1 Mbytes LT306.022.3 Y7-58863 058863 EN_025434.pdf
