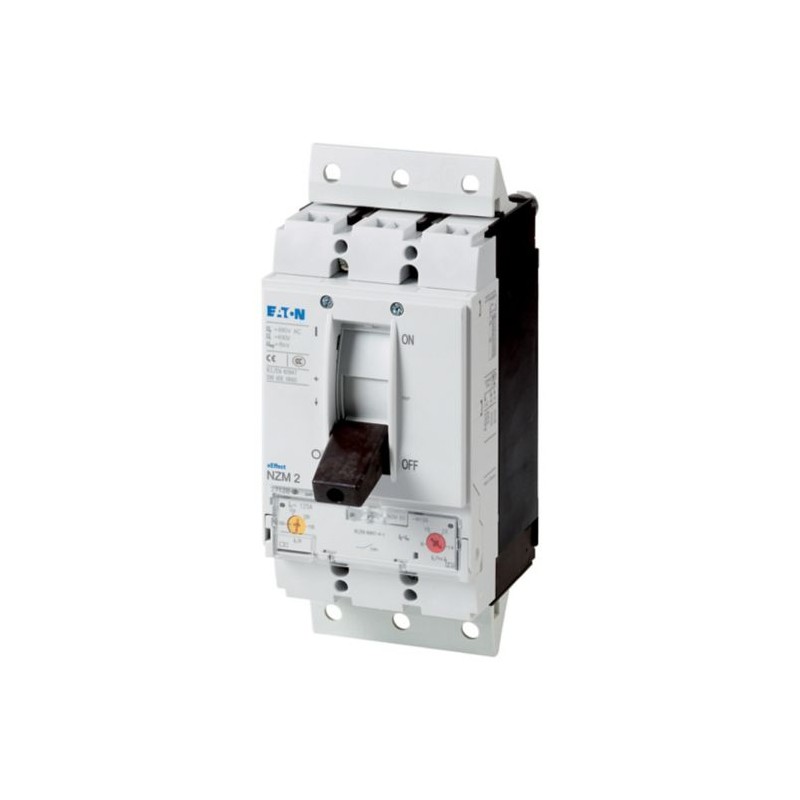

NZMH2-M200-SVE 113364 Y7-113364 EATON ELECTRIC Interruptor automático NZM, 3P, 200A, enchufable
NZMH2-M200-SVE
113364
Y7-113364
EATON-MOELLER
Int. automático NZM, 3P, 200A, enchufable
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 200A, plug-in module, H2-M200-SVE
Interruptores automáticos del NZM.. La serie M cubre todas las aplicaciones con solo cuatro tamaños compactos y es adecuada para el mercado IEC. El montaje es siempre flexible debido a los grupos de funciones modulares. Con liberación termomagnética para la protección del motor. Notas: los disyuntores de clase de disparo 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 cumplen todos los requisitos de la categoría de conmutación AC-3.
Componentes industriales de baja tensión > Disyuntor de protección del motor
Interruptores Automáticos Caja Moldeada NZM
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller series NZM molded case circuit breaker thermo-magnetic
Catalog Number
113364
EAN
4015081128990
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.78 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
IEC
Model Code
NZMH2-M200-SVE
Datos técnicos - eléctricos
Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
196 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
200 A
Instantaneous current setting (Ii) - min
1600 A
Instantaneous current setting (Ii) - max
2800 A
Overload current setting (Ir) - min
160 A
Overload current setting (Ir) - max
200 A
Short-circuit release non-delayed setting - min
1600 A
Short-circuit release non-delayed setting - max
2800 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
37.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
6500 operations at 400 V AC-3
10000 operations at 415 V AC-1
7500 operations at 690 V AC-1
5000 operations at 690 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
10000 operations at 415 V AC-1
7500 operations at 690 V AC-1
5000 operations at 690 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
Direction of incoming supply
As required
Datos técnicos - comunicación
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
196 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
200 A
Instantaneous current setting (Ii) - min
1600 A
Instantaneous current setting (Ii) - max
2800 A
Overload current setting (Ir) - min
160 A
Overload current setting (Ir) - max
200 A
Short-circuit release non-delayed setting - min
1600 A
Short-circuit release non-delayed setting - max
2800 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
37.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Rated operating power at AC-3, 230 V
55 kW
Rated operating power at AC-3, 400 V
110 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
6500 operations at 400 V AC-3
10000 operations at 415 V AC-1
7500 operations at 690 V AC-1
5000 operations at 690 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
10000 operations at 415 V AC-1
7500 operations at 690 V AC-1
5000 operations at 690 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
Direction of incoming supply
As required
Datos técnicos - mecánicos
Mounting Method
Plug-in unit
Built-in device plug-in technique
Built-in device plug-in technique
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Thermomagnetic
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Lifespan, mechanical
20000 operations
| Característica | Valor |
|---|---|
| Ajuste actual de liberación de sobrecarga (EF002336) | 160 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 1600 A |
| Con protección de sobrecarga térmica (EF006233) | Sí |
| Sensible a fallo de fase (EF007400) | No |
| Técnica de liberación (EF007007) | Termomagnético |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Potencia de funcionamiento nominal a 230 V CA-3 (EF007025) | 55 kW |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 110 kW |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Ejecución del elemento accionador (EF006976) | Palanca de balancín |
| Construcción del dispositivo (EF008240) | Técnica de conexión para dispositivo integrado |
| Con interruptor auxiliar integrado (EF001387) | No |
| Con liberación de baja tensión integrada (EF001390) | No |
| Número de polos (EF001391) | 3 |
| Corriente límite nominal de cortocircuito en la corriente de corte a 400 V CA (EF007049) | 130 kA |
| Grado de protección (IP) (EF005474) | IP20 |
| Altura (EF000040) | 245 mm |
| Anchura (EF000008) | 105 mm |
| Profundidad (EF000049) | 180 mm |
