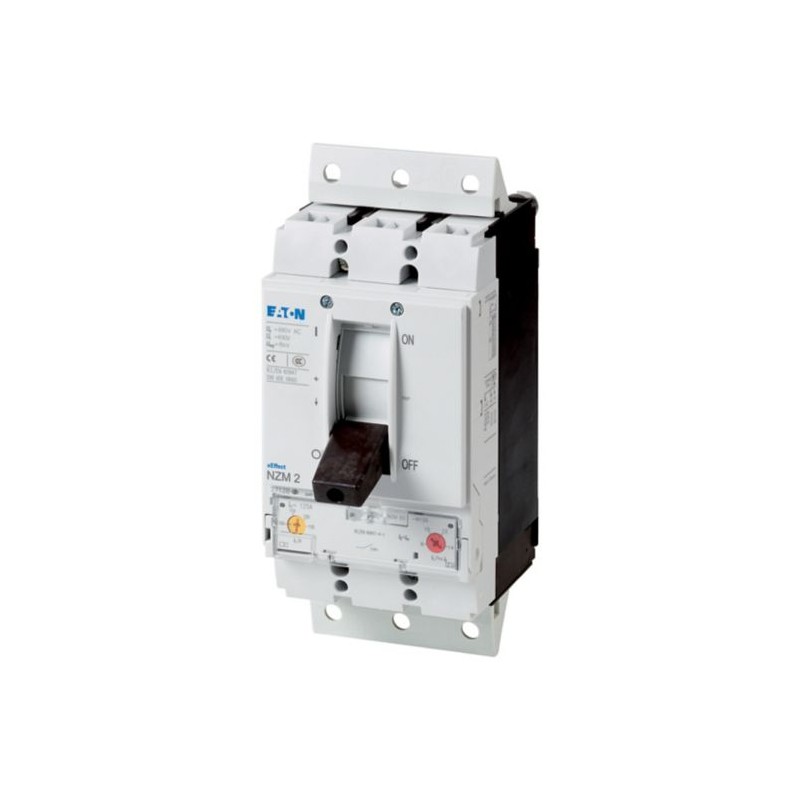

NZMH2-M160-SVE 113363 Y7-113363 EATON ELECTRIC Interruptor automático NZM, 3P, 160A, enchufable
NZMH2-M160-SVE
113363
Y7-113363
EATON-MOELLER
Int. automático NZM, 3P, 160A, enchufable
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3p, 160A, plug-in module, H2-M160-SVE
Interruptores automáticos del NZM.. La serie M cubre todas las aplicaciones con solo cuatro tamaños compactos y es adecuada para el mercado IEC. El montaje es siempre flexible debido a los grupos de funciones modulares. Con liberación termomagnética para la protección del motor. Notas: los disyuntores de clase de disparo 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 cumplen todos los requisitos de la categoría de conmutación AC-3.
Componentes industriales de baja tensión > Disyuntor de protección del motor
Interruptores Automáticos Caja Moldeada NZM
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller series NZM molded case circuit breaker thermo-magnetic
Catalog Number
113363
EAN
4015081128983
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.752 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
IEC
Model Code
NZMH2-M160-SVE
Datos técnicos - eléctricos
Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
134 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
160 A
Instantaneous current setting (Ii) - min
1280 A
Instantaneous current setting (Ii) - max
2240 A
Overload current setting (Ir) - min
125 A
Overload current setting (Ir) - max
160 A
Short-circuit release non-delayed setting - min
1280 A
Short-circuit release non-delayed setting - max
2240 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
37.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Rated operating power at AC-3, 230 V
45 kW
Rated operating power at AC-3, 400 V
75 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
10000 operations at 415 V AC-1
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
5000 operations at 690 V AC-3
Direction of incoming supply
As required
Datos técnicos - comunicación
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
134 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.9 kA
Rated short-time withstand current (t = 1 s)
1.9 kA
Amperage Rating
160 A
Instantaneous current setting (Ii) - min
1280 A
Instantaneous current setting (Ii) - max
2240 A
Overload current setting (Ir) - min
125 A
Overload current setting (Ir) - max
160 A
Short-circuit release non-delayed setting - min
1280 A
Short-circuit release non-delayed setting - max
2240 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
37.5 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
5 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Rated operating power at AC-3, 230 V
45 kW
Rated operating power at AC-3, 400 V
75 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
10000 operations at 415 V AC-1
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
5000 operations at 690 V AC-3
Direction of incoming supply
As required
Datos técnicos - mecánicos
Mounting Method
Built-in device plug-in technique
Plug-in unit
Plug-in unit
Degree of protection
IP20
IP20 (basic degree of protection, in the operating controls area)
IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
IP40 (with insulating surround)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Thermomagnetic
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical
20000 operations
| Característica | Valor |
|---|---|
| Ajuste actual de liberación de sobrecarga (EF002336) | 125 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 1280 A |
| Con protección de sobrecarga térmica (EF006233) | Sí |
| Sensible a fallo de fase (EF007400) | No |
| Técnica de liberación (EF007007) | Termomagnético |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 160 A |
| Potencia de funcionamiento nominal a 230 V CA-3 (EF007025) | 45 kW |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 75 kW |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Ejecución del elemento accionador (EF006976) | Palanca de balancín |
| Construcción del dispositivo (EF008240) | Técnica de conexión para dispositivo integrado |
| Con interruptor auxiliar integrado (EF001387) | No |
| Con liberación de baja tensión integrada (EF001390) | No |
| Número de polos (EF001391) | 3 |
| Corriente límite nominal de cortocircuito en la corriente de corte a 400 V CA (EF007049) | 130 kA |
| Grado de protección (IP) (EF005474) | IP20 |
| Altura (EF000040) | 245 mm |
| Anchura (EF000008) | 105 mm |
| Profundidad (EF000049) | 180 mm |
