Special features
IP65Protection Class IIPlastic enclosure gray (RAL 7035)
Type

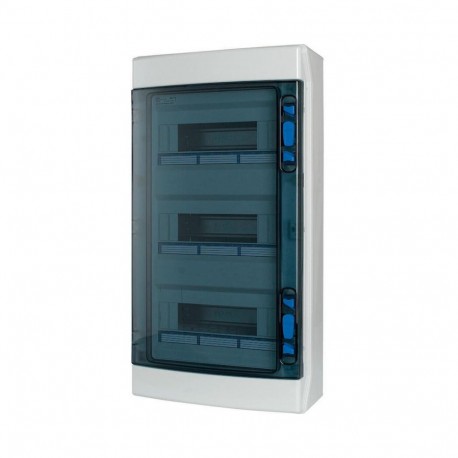

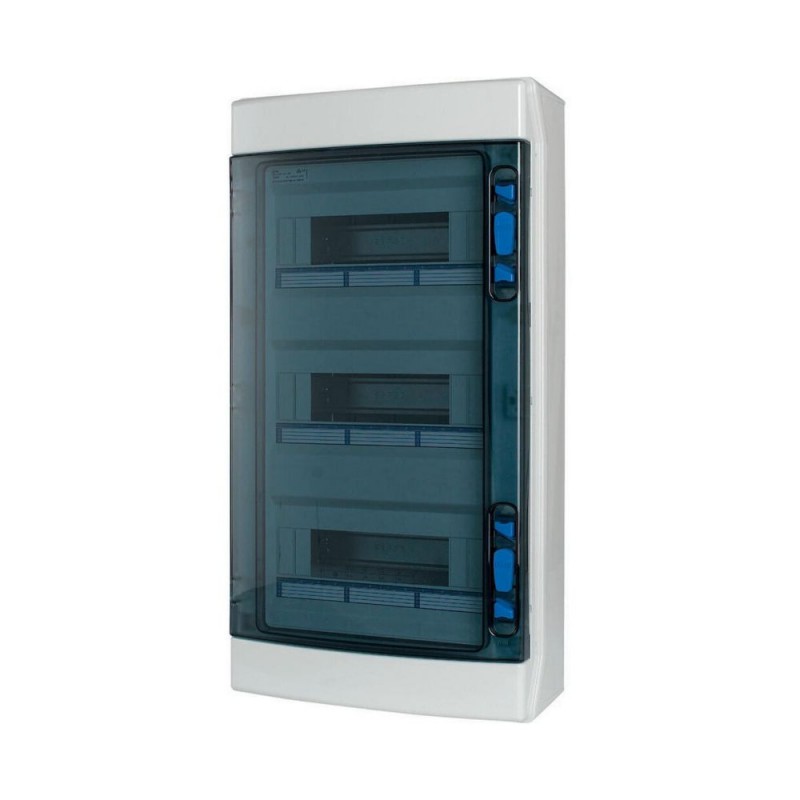

Basic deviceIKA professional distribution boardInstallation distribution board
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
650 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
10.9.3 Impulse withstand voltage
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Device support rails
Reserve section cover 6 space units
Basic device
Locking screws can be sealed
Current circuit designation
Sealing caps
Neutral-/protective conductor terminal
Used with
Basic device
Installation distribution board
IKA professional distribution board
Cable entry postion
Metric cable entries on top and bottom, side, back plate
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
Width in number of modular spacings
Ambient operating temperature details
Application
Indoor (installation site)
Color
Gray
Light gray (RAL 7035)
Frequency rating of contacts
Degree of protection
IP65
IK08 (impact resistance)
Number of module space units per row
Protective shrouding material
Functions
Basic device
Extension possible
Mounting method
Surface mounted (plaster)
Surface mounting
DIN-rail
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
PE and N terminal number and cross section
N: 12 x (2.5 mm² - 6 mm²) + 12 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
PE: 12 x (2.5 mm² - 6 mm²) + 12 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
