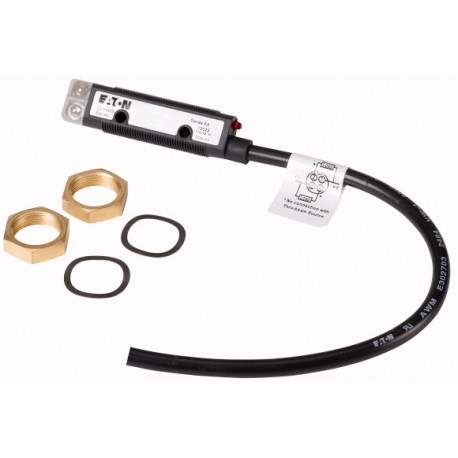

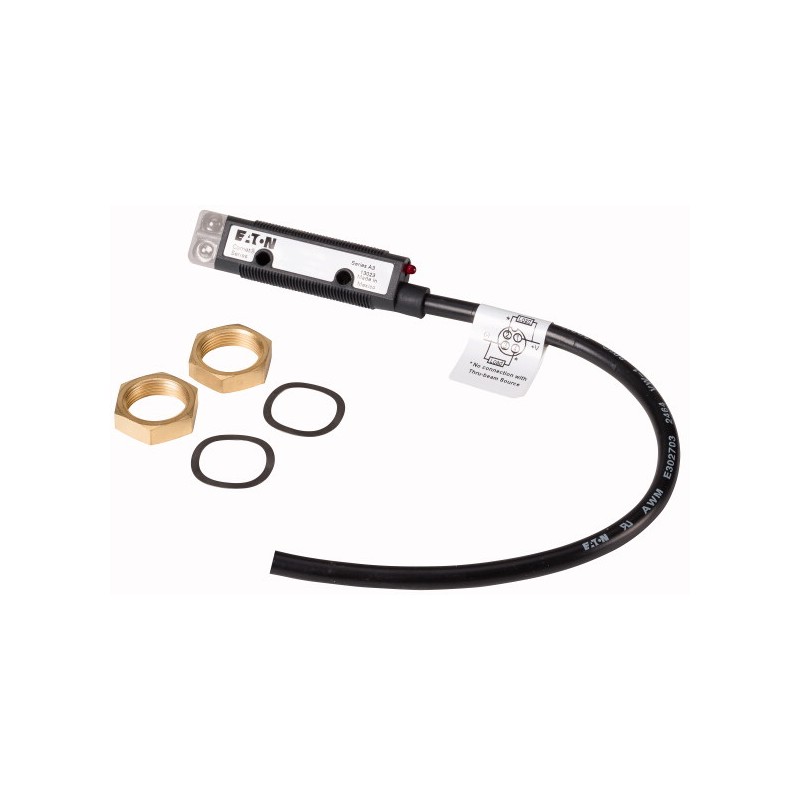

14102A6517 135655 EATON ELECTRIC Sensor óptico Serie Comet
14102A6517
135655
EATON-MOELLER
Sensor óptico Serie Comet
Detector fotoeléctrico reflexivo; Sn=7600 mm; 4 L; 10-30 V DC; NPN; PNP; M18; Material aislante; Cable 2 m
Sensores
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Delivery programme
Basic function | Optical sensors | ||
Product range | Comet Series | ||
For connection of: | 2 m connection cable | ||
Design (outer dimensions) | mm | M18 x 1 | |
Rated operational voltage | Ue | 10 - 30 V DC | |
Rated switching distance | Sn | mm | 7600 |
Description | for combination with reflector non-polarized Beam: straight | ||
Connection | 4-wire | ||
Function | Reflex photoelectric sensor | ||
Type of light | Visible red | ||
Material | Insulated material | ||
Switching type | NPN PNP | ||
Switching principle | Adjustable bright/dark switching |
Technical data
| General | |||
Standards | IEC/EN 60947-5-2 | ||
Ambient temperature | -40 - +70 | ||
Mechanical shock resistance | g | 100 Shock duration 3 ms | |
Degree of Protection | IP67 | ||
| Characteristics | |||
Rated switching distance | |||
Rated switching distance | Sn | mm | 7600 |
Range | mm | 7.6 | |
Rated operational voltage | Ue | 10 - 30 V DC | |
Operating current in the switched state at 24 V DC | Ib | mA | 30 |
Maximum load current | Ie | mA | < PNP: 100 NPN: 250 (120 > 55 °C) |
Response time | ms | 1 | |
Switching state display | LED | Red | |
Protective functions | Short-circuit protective device Protection against polarity reversal | ||
Connection | 4-wire | ||
Style | |||
Design (outer dimensions) | mm | M18 x 1 | |
For connection of: | 2 m connection cable | ||
Material | Insulated material | ||
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification | |||
Operating ambient temperature min. | °C | -40 | |
Operating ambient temperature max. | °C | 70 |
Technical data ETIM 6.0(Show features)(Hide features)
| Sensors (EG000026) / Reflection light barrier (EC002717) | |||
| Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Optoelectronic sensor / Reflection light barrier ([email protected] [AKP251010]) | |||
Pre failure notice | No | ||
With time function | No | ||
Rated switching distance | mm | 7600 | |
Max. switching distance | mm | 0 | |
Max. output current | mA | 100 | |
Reflector included | No | ||
Analogue output 0 V ... 10 V | No | ||
Analogue output 0 mA ... 20 mA | No | ||
Analogue output 4 mA ... 20 mA | No | ||
Analogue output -10 V ... +10 V | No | ||
With other analog output | No | ||
Setting procedure | Manual adjustment | ||
With communication interface analog | No | ||
With communication interface AS-Interface | No | ||
With communication interface CANOpen | No | ||
With communication interface DeviceNet | No | ||
With communication interface Ethernet | No | ||
With communication interface INTERBUS | No | ||
With communication interface PROFIBUS | No | ||
With communication interface RS-232 | No | ||
With communication interface RS-422 | No | ||
With communication interface RS-485 | No | ||
With communication interface SSD | No | ||
With communication interface SSI | No | ||
Number of semiconductor outputs with signalling function | 2 | ||
Number of contact energized outputs with signalling function | 0 | ||
Number of protected semiconductor outputs | 0 | ||
Number of protected contact energized outputs | 0 | ||
Type of interface for safety communication | - | ||
Type of electric connection | Cable | ||
Type of switching output | PNP/NPN | ||
Type of switch function | Programmable/configurable | ||
Operation agent-safety class | - | ||
Explosion safety category for gas | None | ||
Explosion safety category for dust | None | ||
Construction type housing | Cylinder, screw-thread | ||
Width sensor | mm | 0 | |
Diameter sensor | mm | 18 | |
Height of sensor | mm | 0 | |
Length of sensor | mm | 66 | |
Switch function | Light-/dark switching | ||
Material of optical surface | Plastic | ||
Material housing | Plastic | ||
Max. output current at protected output | mA | 0 | |
Min. reflector distance | mm | 0 | |
Ambient temperature | °C | -40 - 70 | |
Time of reaction | ms | 0 | |
Transmission range of the safety field | m | 0 | |
Switching frequency | Hz | 500 | |
Type of safety acc. IEC 61496-1 | - | ||
Switching voltage of OSSD at state high | V | 0 | |
Rated control supply voltage Us at AC 50HZ | V | 0 - 0 | |
Rated control supply voltage Us at AC 60HZ | V | 0 - 0 | |
Rated control supply voltage Us at DC | V | 10 - 30 | |
Voltage type | DC | ||
With monitoring function downstream switching devices | No | ||
Laser protection class | None | ||
Wavelength of the sensor | nm | 0 | |
Type of light | Polarity free red light | ||
Light dot | mm² | 0 | |
With restart blockage | No | ||
Suitable for safety functions | No | ||
Degree of protection (IP) | IP67 | ||
Approvals
| Product Standards | UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking | ||
| UL File No. | E117028 | ||
| UL Category Control No. | NRKH, NRKH7 | ||
| CSA File No. | 50513 | ||
| CSA Class No. | 3211-07 | ||
| North America Certification | UL listed, CSA certified | ||
| Max. Voltage Rating | 30 V DC | ||
| Degree of Protection | IEC: IP68, IP69K; UL/CSA Type: 1, 4, 6 |
