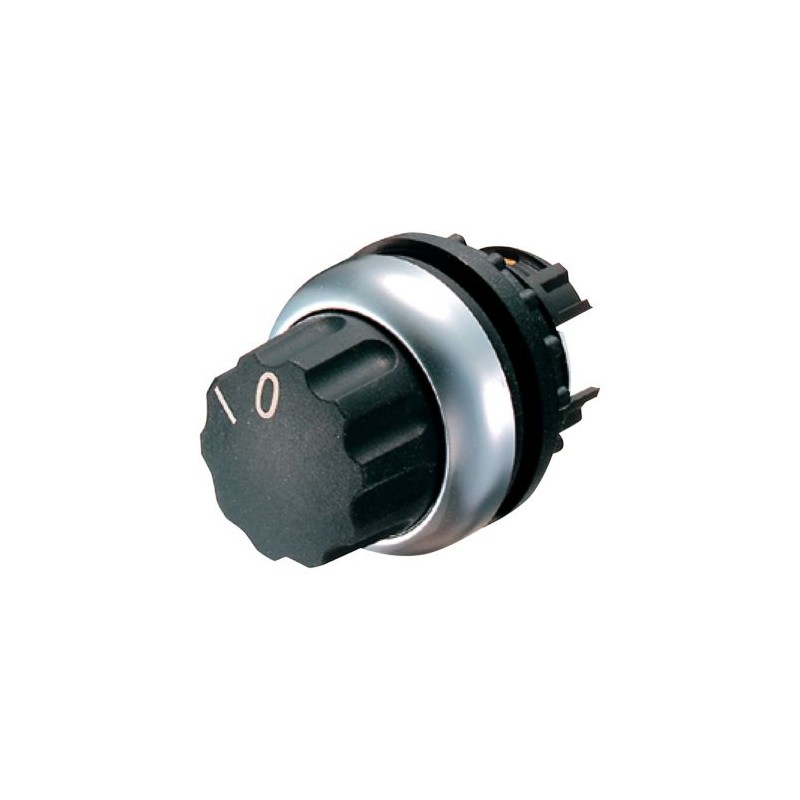

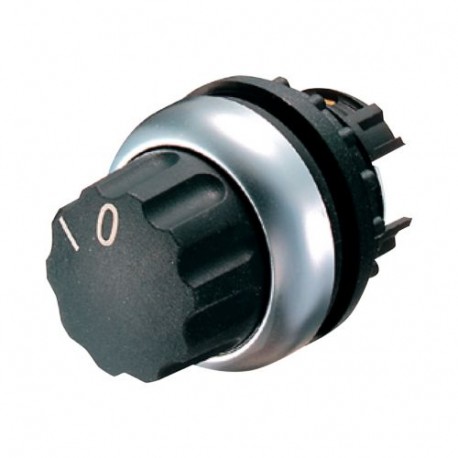

M22-WR-* 226836 Y7-226836 EATON ELECTRIC Selector Mando redondo Enclavamiento 2 posiciones Inscripción

Referencia: M22-WR-*

Código: 226836

Número de catálogo: Y7-226836

Fabricante: EATON - MOELLER series

Descripción:

Selector Mando redondo, Enclavamiento, 2 posiciones, Inscripción
Eaton Moeller® series M22 Changeover switch, RMQ-Titan, With rotary head, maintained, 2 positions, individual facility for inscription, Bezel: titanium
Interruptor de conmutación, Gama de productos: RMQ-Titan, Unidad individual, Diseño: Con cabezal giratorio, mantenido, 2 posiciones, posibilidad individual de inscripción, Grado de protección: IP66, Bisel: titanio, Conexión a SmartWire-DT: sí, con conexiones SWD-RMQ, Dimensiones frontales: 29,7, Instrucciones: Función de fijación/retorno por resorte, se puede cambiar con piezas de codificación M22-XC-Y, Notas sobre la inscripción personalizada → Hoja de datos, información adicional del producto (enlaces), Normas: IEC/EN 60947, VDE 0660, Grado de protección: IP66

Categorías:

  • Componentes industriales de baja tensión > Elemento frontal para interruptor selector
  • EATON - MOELLER series > Auxiliares de mando y señalización

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER SERIES

  • Más Información
  • ETIM
  • PDF
  • Opiniones
Garantía, reparación y devolución.

* Este articulo está restringido. Por favor, solicítenos presupuesto para que comprobemos si existen unidades disponibles o le ofrezcamos una alternativa de producto.

Solicite presupuesto y le indicaremos si quedan unidades disponibles. En caso de que no queden uno de nuestros técnicos buscará una alternativa suministrable de características similares.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Especificaciones generales

Product Name
Eaton Moeller® series M22 Selector switch
Catalog Number
226836
Product Length/Depth
43 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
UL
IEC/EN 60947-5
CSA File No.: 012528
CSA
UL 508
UL File No.: E29184
VDE 0660
CSA Class No.: 3211-03
CE
IEC/EN 60947
DNV
GL
LR
Catalog Notes
Notes on customized inscription → Data sheet, additional product information (links)
Model Code
M22-WR-*

Features & Functions

Bezel color
Titanium
Bezel material
Plastic
Design
With rotary head
Classical
Fitted with:
Front ring
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Inscription
Individual inscription possible

General

Degree of protection
NEMA 4X, 13
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
2000 Operations/h
Operating torque
0.3 Nm
Overvoltage category
III
Pollution degree
3
Product category
RMQ-Titan
Size
Front diameter: 29.7 mm
Switching angle
60 °
Type
Selector switch actuator

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Communication

Connection to SmartWire-DT
With SWD-RMQ connections
Yes

Actuator

Actuator color
Black
Actuator function
Maintained
Switching function latching
Actuator type
Turn button
Number of switch positions
2

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 226836 Interruptores de baja tensión (EC000222)

CaracterísticaNúmero de posiciones del interruptor (EF000231)
Valor2
CaracterísticaEjecución del elemento accionador (EF006976)
ValorBotón giratorio (mando)
CaracterísticaApto para iluminación (EF001142)
ValorNo
CaracterísticaColor del elemento de accionamiento (EF007167)
ValorNegro
CaracterísticaColor de la cúpula del indicador luminoso (EF007165)
ValorOtros
CaracterísticaDiseño de la lente (EF006253)
ValorRedondo
CaracterísticaDiámetro del orificio (EF000079)
Valor22.5 mm
CaracterísticaAnchura de apertura (EF004565)
Valor0 mm
CaracterísticaAltura de la abertura (EF004778)
Valor0 mm
CaracterísticaFunción de cambio de enclavamiento (EF007447)
ValorSí
CaracterísticaTáctil (EF001407)
ValorNo
CaracterísticaCon anillo central (EF006014)
ValorSí
CaracterísticaMaterial del anillo frontal (EF005972)
ValorPlástico
CaracterísticaAnillo frontal de color (EF002429)
ValorTitanio
CaracterísticaGrado de protección (IP), frontal (EF003118)
ValorIP66
CaracterísticaGrado de protección (NEMA) (EF011959)
Valor4X, 13
