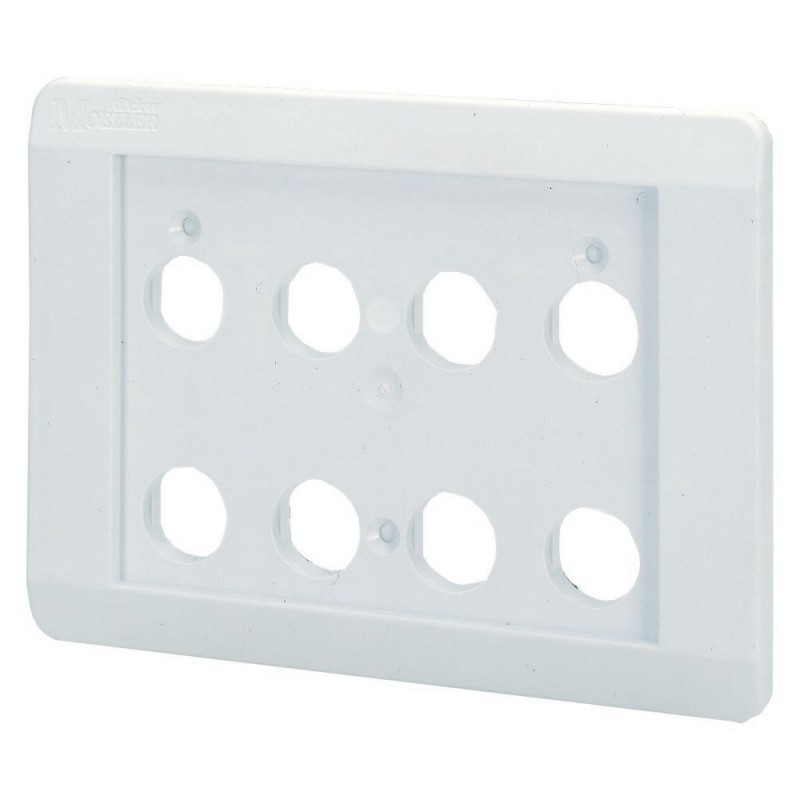

E8 054423 EATON ELECTRIC Botonera para empotrar 8 orificios Gris Para RMQ16 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

E8 054423 EATON ELECTRIC Botonera para empotrar 8 orificios Gris Para RMQ16

E8

054423

EATON-MOELLER

Botonera para empotrar; 8 orificios; Gris; Para RMQ16

Eaton Moeller® series RMQ16 Flush mounting plate, gray, 8 mounting locations

Más detalles


Interruptores de baja tensión > Tapa de montaje de dispositivos de control

Auxiliares de mando y señalización

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $27.39
Precio unitario: $27.39

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton Moeller® series RMQ16 Accessory Flush mounting plate
Catalog Number
054423
EAN
4015080544234
Product Length/Depth
20 mm
Product Height
100 mm
Product Width
136 mm
Product Weight
0.122 kg
Certifications
IEC/EN 60947-5
CSA
UL 508
CSA File No.: 46552
CSA-C22.2 No. 14-05
UL File No.: E29184
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CE
UL
Model Code
E8

Features & Functions

Color
Gray
Enclosure color
Light gray, Cover (RAL 7035)
Functions
For conventional wiring
Material
Plastic
Number of locations
8

General

Degree of protection
NEMA 1
IP65
Opening diameter
16 mm

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF
