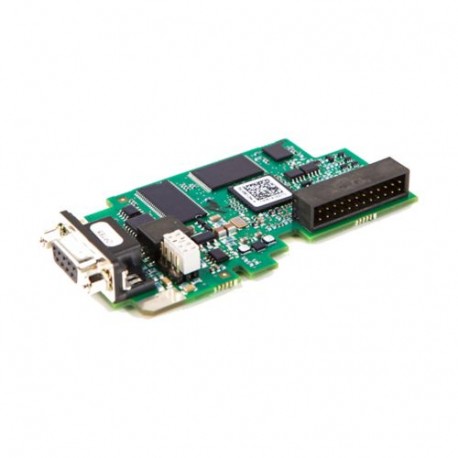

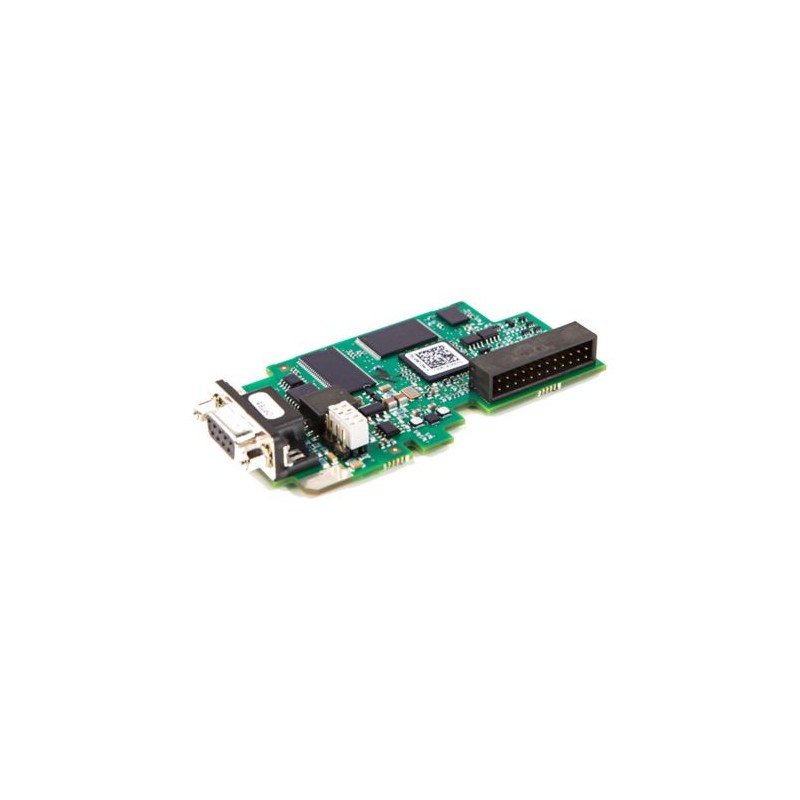

OPTE5 EP-401410 EATON ELECTRIC OPTE5 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

OPTE5 EP-401410 EATON ELECTRIC OPTE5

OPTE5

EP-401410

EP-401410

EATON-MOELLER

OPTE5

Más detalles


Convertidores de Frecuencia Power XL

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $475.70
Precio unitario: $475.70
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton SPX Accessory Fieldbus module
Catalog Number
EP-401410
EAN
4015082969073
Product Length/Depth
120 mm
Product Height
20 mm
Product Width
60 mm
Product Weight
0.1 kg
Certifications
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
CE marking
UL File No.: E134360
UL Listed
IEC/EN 61800-3
Certified by UL for use in Canada
UL report applies to both US and Canada
IEC 61800-5
UL 508C
CSA-C22.2 No. 14
Catalog Notes
The field bus module is plugged into the variable-frequency drive.
Model Code
OPTE5

General

Connection type
1 x D-SUB socket, 9-pin, Field bus
Product Category
Accessories

Communication

Protocol
PROFIBUS-DP

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
