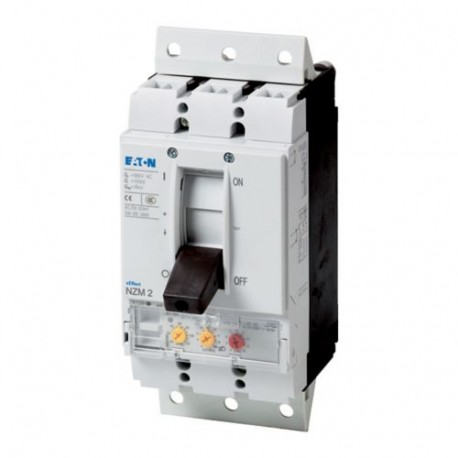

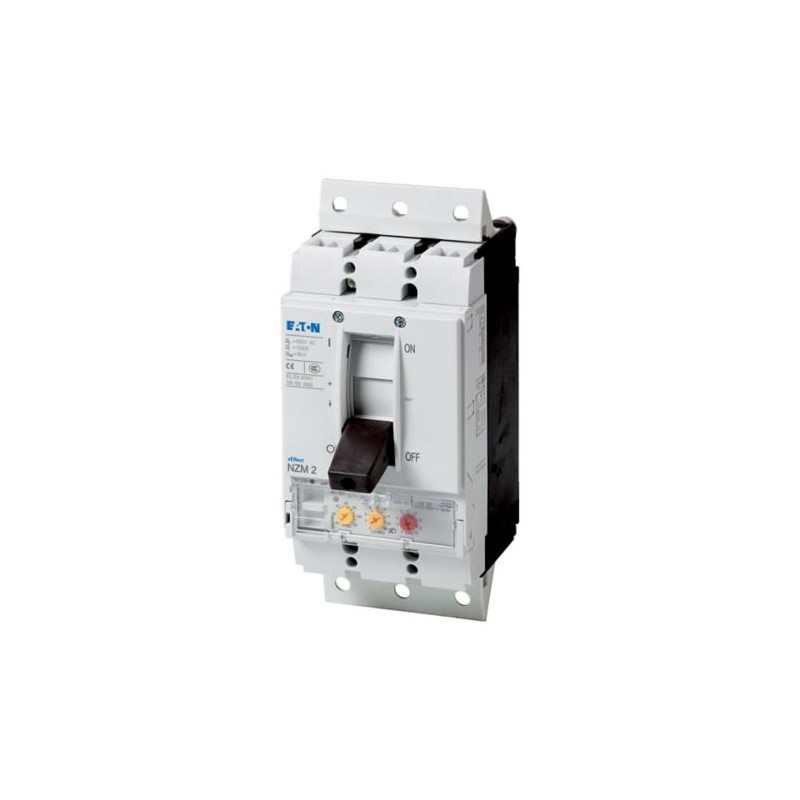

NZML2-ME90-SVE 169025 Y7-169025 EATON ELECTRIC Interruptor automático NZM, 4P, 90A, enchufable
NZML2-ME90-SVE
169025
Y7-169025
EATON-MOELLER
Int. automático NZM, 4P, 90A, enchufable
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3 p, 90A, plug-in module
Los interruptores automáticos NZM de la serie CUBREN TODOS LOS CASOS DE APLICACIÓN CON SOLO CUATRO TAMAÑOS COMPACTOS Y SON ADECUADOS PARA EL MERCADO IEC. La instalación es siempre flexible gracias al uso de grupos de funciones modulares.
Componentes industriales de baja tensión > Disyuntor de protección del motor
Interruptores Automáticos Caja Moldeada NZM
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller series NZM molded case circuit breaker electronic
Catalog Number
169025
EAN
4015081655182
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.878 kg
Compliances
RoHS conform
Certifications
IEC
IEC/EN 60947
IEC/EN 60947
Model Code
NZML2-ME90-SVE
Datos técnicos - eléctricos
Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
78 A (690 V AC-3)
81 A (400 V AC-3)
81 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.3 kA
Rated short-time withstand current (t = 1 s)
1.3 kA
Amperage Rating
90 A
Instantaneous current setting (Ii) - min
180 A
Instantaneous current setting (Ii) - max
1260 A
Overload current setting (Ir) - min
45 A
Overload current setting (Ir) - max
90 A
Short-circuit release non-delayed setting - min
180 A
Short-circuit release non-delayed setting - max
1260 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
100 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
80 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
176 kA
Rated operating power at AC-3, 230 V
22 kW
Rated operating power at AC-3, 400 V
45 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
7500 operations at 690 V AC-1
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
6500 operations at 400 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
6500 operations at 400 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
Direction of incoming supply
As required
Datos técnicos - comunicación
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
78 A (690 V AC-3)
81 A (400 V AC-3)
81 A (400 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.3 kA
Rated short-time withstand current (t = 1 s)
1.3 kA
Amperage Rating
90 A
Instantaneous current setting (Ii) - min
180 A
Instantaneous current setting (Ii) - max
1260 A
Overload current setting (Ir) - min
45 A
Overload current setting (Ir) - max
90 A
Short-circuit release non-delayed setting - min
180 A
Short-circuit release non-delayed setting - max
1260 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
100 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
80 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
176 kA
Rated operating power at AC-3, 230 V
22 kW
Rated operating power at AC-3, 400 V
45 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
500 V AC (between auxiliary contacts and main contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
7500 operations at 690 V AC-1
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
6500 operations at 400 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
6500 operations at 400 V AC-3
10000 operations at 400 V AC-1
6500 operations at 415 V AC-3
Direction of incoming supply
As required
Datos técnicos - mecánicos
Mounting Method
Built-in device plug-in technique
Withdrawable
Withdrawable
Degree of protection
IP20 (basic degree of protection, in the operating controls area)
IP20
IP20
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP10 (tunnel terminal)
IP00 (terminations, phase isolator and strip terminal)
IP00 (terminations, phase isolator and strip terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Electronic
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical
20000 operations
| Característica | Valor |
|---|---|
| Ajuste actual de liberación de sobrecarga (EF002336) | 45 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 180 A |
| Con protección de sobrecarga térmica (EF006233) | Sí |
| Sensible a fallo de fase (EF007400) | Sí |
| Técnica de liberación (EF007007) | Electrónico |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 90 A |
| Potencia de funcionamiento nominal a 230 V CA-3 (EF007025) | 22 kW |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 45 kW |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Ejecución del elemento accionador (EF006976) | Palanca de balancín |
| Construcción del dispositivo (EF008240) | Técnica de conexión para dispositivo integrado |
| Con interruptor auxiliar integrado (EF001387) | No |
| Con liberación de baja tensión integrada (EF001390) | No |
| Número de polos (EF001391) | 3 |
| Corriente límite nominal de cortocircuito en la corriente de corte a 400 V CA (EF007049) | 130 kA |
| Grado de protección (IP) (EF005474) | IP20 |
| Altura (EF000040) | 245 mm |
| Anchura (EF000008) | 105 mm |
| Profundidad (EF000049) | 180 mm |
Datasheet - PDF
▲| Título: | Tamaño: | Tipo: |
|---|---|---|
| PDF CATÁLOGO EATON DISTRIBUCIÓN ENERGIA ES.pdf | 32 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| NZML2-ME90-SVE Y7-169025 169025 ES_107610.pdf | 4 Mbytes |
|
