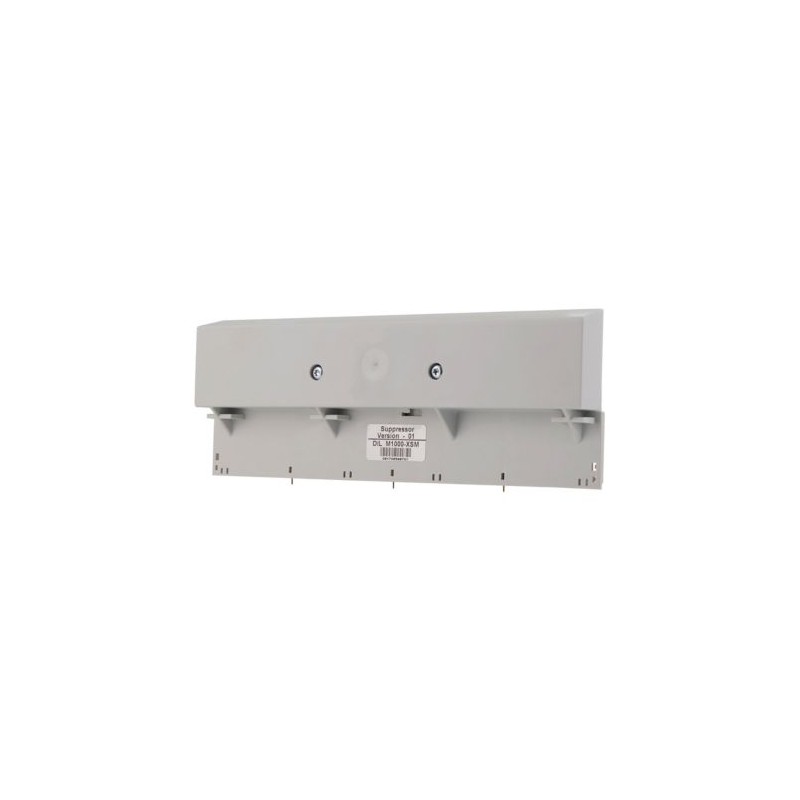

DILM1000-XSM 125947 Y7-125947 EATON ELECTRIC Módulo supresor Varistor Para DILM580-1000 H1400 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DILM1000-XSM 125947 Y7-125947 EATON ELECTRIC Módulo supresor Varistor Para DILM580-1000 H1400

DILM1000-XSM

125947

Y7-125947

EATON-MOELLER

Módulo supresor Varistor, Para DILM580-1000, H1400

Eaton Moeller® series DILM Varistor suppressor circuit, For use with: DILM580, DILM650, DILM750, DILM820, DILM1000, DILH1200, DILH1400

Circuito supresor de varistor, Accesorios: Circuitos supresores para contactores de vacío (en el lado de la carga), Descripción: Para amortiguar la sobretensión de corte al desconectar cargas inductivas., Para usar con: DILM580, DILM650, DILM750, DILM820, DILM1000, DILH1200, DILH1400

Más detalles


Componentes industriales de baja tensión > Componente para circuito de protección

Contactores más de 170 A

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $163.30
Precio unitario: $163.30
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series DILM varistor suppressor circuit
Catalog Number
125947
EAN
4015081235575
Product Length/Depth
24 mm
Product Height
85 mm
Product Width
230 mm
Product Weight
0.393 kg
Certifications
UL 508
UL Category Control No.: NLDX
CSA-C22.2 No. 14-05
UL
CSA
CSA File No.: 165628
CSA Class No.: C321104
UL File No.: E29096
CE
IEC/EN 60947-4-1
Model Code
DILM1000-XSM

Características y Funciones

Functions
For damping the cutout overvoltage when switching off inductive loads.
Varistor (voltage-sensitive resistor)

General

Product category
Accessories
Voltage type
AC

Condiciones climáticas ambientales

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Sistema magnético

Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
1000 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
1000 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 125947 Interruptores de baja tensión (EC000683)
Característica Valor
Función (EF000030) Varistor (resistencia sensible a la tensión)
Tipo de tensión de funcionamiento (EF005294) CA
Voltaje de funcionamiento a 50 Hz CA (EF008206) 1177 V
Voltaje de funcionamiento a 60 Hz CA (EF008207) 1177 V
Con indicador LED (EF005950) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM1000-XSM Y7-125947 125947 ES_125947.pdf 791 Kbytes DILM1000-XSM Y7-125947 125947 ES_125947.pdf
