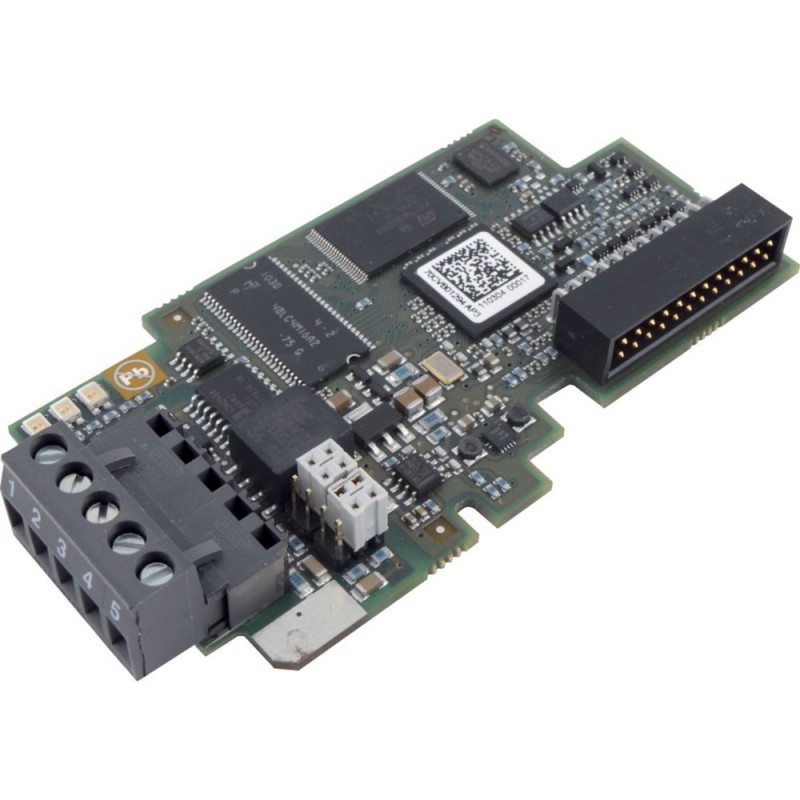

EATON - MOELLER series OPTC4 125069 Y7-125069 - Imagen 1

Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

OPTC4 125069 Y7-125069 EATON ELECTRIC Módulo de ampliación Comunicación LonWorks Conexión por terminales

Referencia: OPTC4

Código: 125069

Número de catálogo: Y7-125069

Fabricante: EATON - MOELLER series

Descripción:

Módulo de ampliación, Comunicación LonWorks , Conexión por terminales,
Eaton SPX Field bus module LonWorks with screw terminals for variable frequency drive SVX and SPX
Módulo de bus de campo, Protocolo de bus: LonWorks, Descripción: El módulo de bus de campo está conectado al variador de frecuencia., Para uso con: SVX, SPX, Técnica de conexión: Terminales de tornillo

Categorías:

  • Componentes industriales de baja tensión > Accesorios para reguladores de frecuencia
  • EATON - MOELLER series > Convertidores de Frecuencia Eaton

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER SERIES

  • Más Información
  • ETIM
  • PDF
  • Opiniones
Garantía, reparación y devolución.

Precio unitario: 319,17 €

Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Calcule su precio por cantidad

CantidadPrecio

Plazo estándar: 3 semanas.

  • Estos plazos son una estimación y podrían variar una vez tramitado el pedido del artículo.

VISTOS ANTERIORMENTE

MÁS INFORMACIÓN

Especificaciones generales

Product Name
Eaton SPX Accessory Fieldbus module
Catalog Number
125069
EAN
4015081226801
Product Length/Depth
39 mm
Product Height
6 mm
Product Width
22 mm
Product Weight
0.2 kg
Certifications
UL
CSA-C22.2 No. 14
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
Certified by UL for use in Canada
IEC/EN61800-3
CE
UL report applies to both US and Canada
UL 508C
IEC/EN61800-5
UL File No.: E134360
Catalog Notes
The field bus module is plugged into the variable-frequency drive.
Model Code
OPTC4

General

Connection type
Screw terminals
Product Category
Accessories
Suitable for
Branch circuits, (UL/CSA)

Communication

Protocol
LonWorks

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 125069 Interruptores de baja tensión (EC002025)

CaracterísticaTipo de accesorio/repuesto (EF000215)
ValorMódulo de comunicación
CaracterísticaAccesorio (EF013236)
ValorSí
CaracterísticaRecambio (EF013237)
ValorNo
