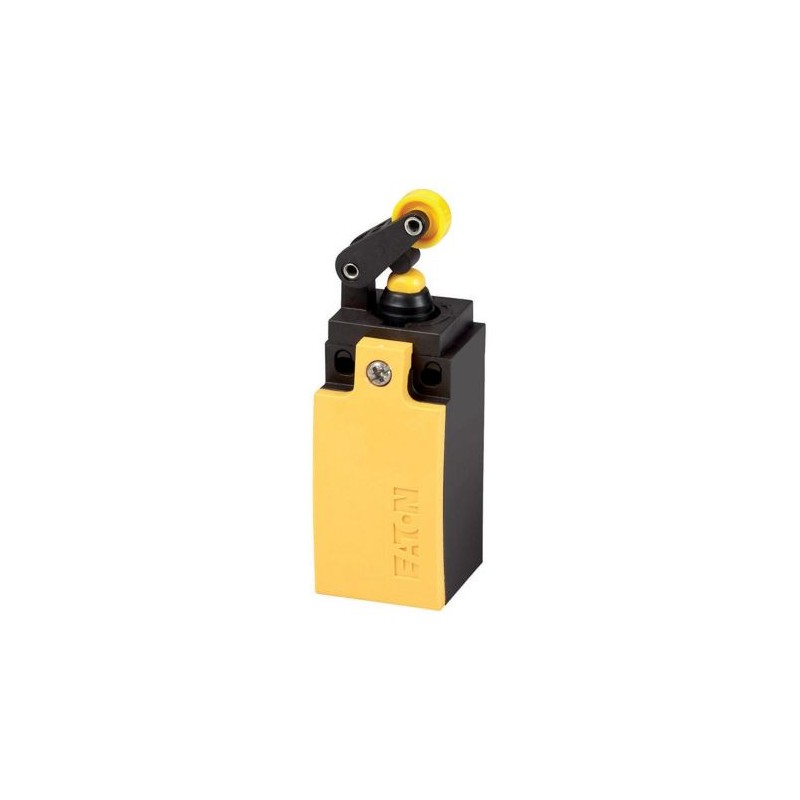

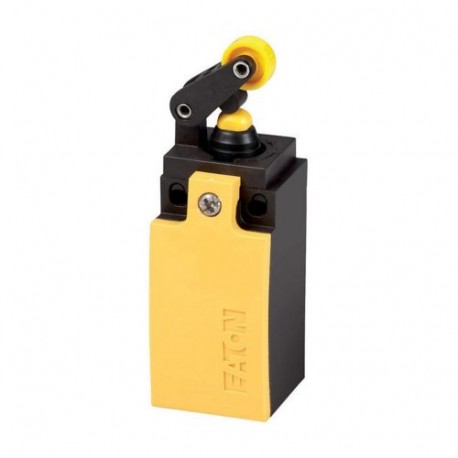

LS-S02/L 106781 Y7-106781 EATON ELECTRIC Interruptor de posición Plástico 2 NC Palanca de rodillo
LS-S02/L
106781
Y7-106781
EATON-MOELLER
2
Interruptor de posición, Plástico, 2 NC, Palanca de rodillo
Eaton Moeller® series LS Position switch, Roller lever, Complete unit, 2 NC, Screw terminal, Yellow, Insulated material, -25 - +70 °C, Long
Interruptor de posición, Función básica: Interruptores de posición, Interruptores de posición de seguridad, Referencia del grupo de piezas: LS(M)-..., Gama de productos: Palanca de rodillos, Grado de protección: IP66, IP67, Características: Unidad completa, Temperatura ambiente: -25 - +70 °C, Descripción: Largo, Contactos N/C = Normalmente cerrado: 2 NC, Notas: = función de seguridad, por apertura positiva según IEC/EN 60947-5-1, Apertura positiva (ZW): sí, Color Cubiertas de la caja: Amarillo, Carcasa: Material aislante, Tipo de conexión: Terminal de tornillo, Normas: IEC/EN 60947
Sensores > Interruptor de posición individual
Interruptores de posición
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series LS Position switch
Catalog Number
106781
EAN
4015081064984
Product Length/Depth
33.5 mm
Product Height
96 mm
Product Width
31 mm
Product Weight
0.055 kg
Certifications
CE
UL 508
CSA Class No.: 3211-03
IEC/EN 60947-5
CSA File No.: 012528
CSA-C22.2 No. 14
IEC/EN 60947
CSA
UL
UL File No.: E29184
UL Category Control No.: NKCR
UL 508
CSA Class No.: 3211-03
IEC/EN 60947-5
CSA File No.: 012528
CSA-C22.2 No. 14
IEC/EN 60947
CSA
UL
UL File No.: E29184
UL Category Control No.: NKCR
Model Code
LS-S02/L
Features & Functions
Electric connection type
Cable entry metrical
Enclosure color
Yellow Cover
Enclosure material
Insulated material
Plastic
Plastic
Features
Positive opening
Forced opening
Forced opening
Switch function type
Slow-action switch
General
Connection type
Screw terminal
Degree of protection
IP66/IP67
NEMA Other
NEMA Other
Operating frequency
6000 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
Roller lever
Rated impulse withstand voltage (Uimp)
4000 V AC
Repetition accuracy
0.15 mm (Contacts/switching capacity)
Suitable for
Safety functions
Type
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
Terminal capacity (flexible with ferrule)
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
1 x (0.5 - 2.5) mm²
Electrical rating
Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
400 V
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 24 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Rated operational current (Ie) at DC-13, 110 V
0.6 A
Rated operational current (Ie) at DC-13, 125 V
0.8 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.3 A
Rated operational current (Ie) at DC-13, 24 V
3 A
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Contacts
Supply frequency
Max. 400 Hz, Contacts
Actuator
Actuating force at beginning/end of stroke
1.0 N/8.0 N
Actuating torque of rotary drives
0.2 Nm
Actuator type
Roller lever
Operating speed
For angle of actuation α = 30°/45°
Max. 1 m/s (with DIN cam, mechanical actuation)
Max. 1 m/s (with DIN cam, mechanical actuation)
Contacts
Control circuit reliability
1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
0
Safety
Explosion safety category for gas
None
Explosion safety category for dust
None
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.17 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Anchura del sensor (EF007094) | 31 mm |
| Diámetro del sensor (EF007111) | 0 mm |
| Altura del sensor (EF007283) | 61 mm |
| Longitud del sensor (EF007334) | 33.5 mm |
| Corriente de funcionamiento nominal Ie a CA-15, 24 V (EF007084) | 6 A |
| Corriente de funcionamiento nominal Ie a CA-15, 125 V (EF007082) | 6 A |
| Corriente de funcionamiento nominal Ie a CA-15, 230 V (EF001385) | 6 A |
| Corriente de funcionamiento nominal Ie a CC-13, 24 V (EF007087) | 3 A |
| Corriente de funcionamiento nominal Ie a CC-13, 125 V (EF007085) | 0.8 A |
| Corriente de funcionamiento nominal Ie a CC-13, 230 V (EF001386) | 0.3 A |
| Función de conmutación (EF000189) | Interruptor de acción lenta |
| Función de cambio de enclavamiento (EF007447) | No |
| Salida electrónica (EF006987) | No |
| Apertura forzada (EF006694) | Sí |
| Número de contactos auxiliares relacionados con la seguridad (EF006940) | 2 |
| Número de contactos normalmente cerrados (EF008255) | 2 |
| Número de contactos normalmente abiertos (EF008256) | 0 |
| Número de contactos inversores (EF008257) | 0 |
| Tipo de interfaz (EF006977) | Ninguno |
| Ejecución de interfaz para comunicación relacionada con la seguridad (EF003956) | Ninguno |
| Forma de construcción de la carcasa (EF004008) | Cuboide |
| Material de carcasa (EF001596) | Plástico |
| Revestimiento de la carcasa (EF001601) | Otros |
| Ejecución del elemento accionador (EF006976) | Palanca de rodillo |
| Alineación del actuador (EF008793) | Otros |
| Ejecución de la conexión eléctrica (EF003961) | Entrada de cable (métrica) |
| Con indicación de estado (EF001602) | No |
| Apto para funciones de seguridad (EF001597) | Sí |
| Categoría de protección contra explosiones para gas (EF003997) | Ninguno |
| Categoría de protección contra explosiones para polvo (EF003998) | Ninguno |
| Temperatura ambiente durante el funcionamiento (EF007515) | -25 °C |
| Grado de protección (IP) (EF005474) | IP66/IP67 |
| Grado de protección (NEMA) (EF011959) | Otros |
