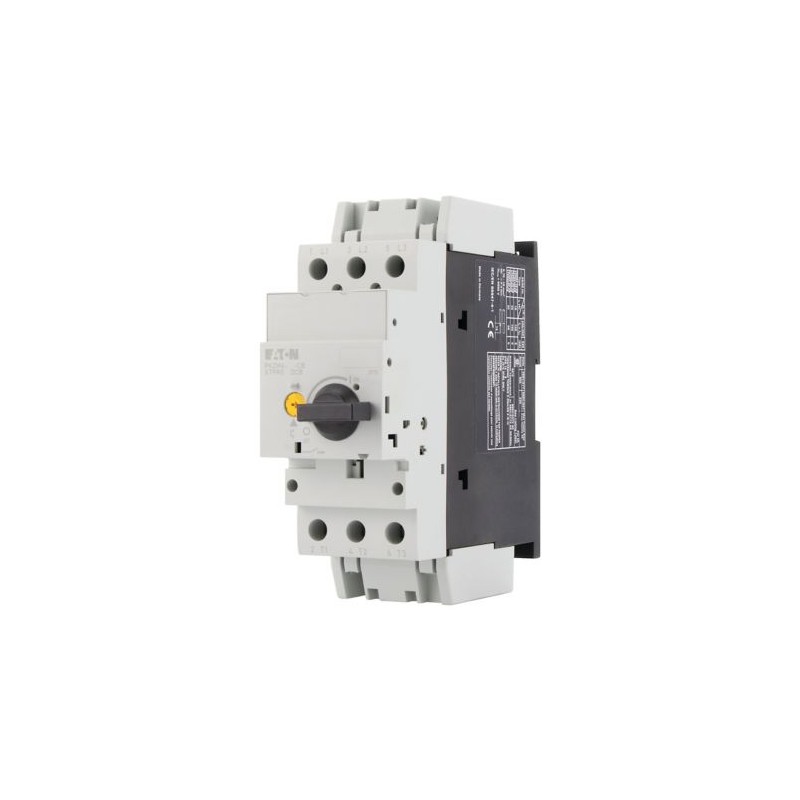

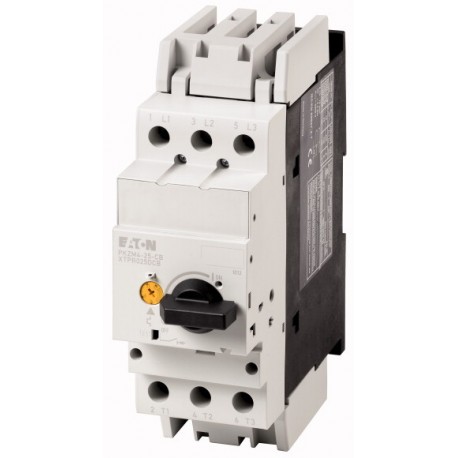

PKZM4-32-CB 132593 Y7-132593 EATON ELECTRIC Interruptor protector de línea 3 polos Ir 24-32 A Conexión a tor..
PKZM4-32-CB
132593
Y7-132593
EATON-MOELLER
Interruptor protector de línea, 3 polos, Ir=24-32 A, Conexión a tornillo,
Disyuntor, Ir= 24 - 32 A, Terminales de tornillo, Terminaciones: IP2X
Disyuntores para la protección de cables y conductores, UL489, CSA22.2 n.º 5-09, no utilizables como interruptor principal
Componentes industriales de baja tensión > Interruptor para protección de transformadores, generadores y sistemas
Interruptores Protectores de Motor
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
productos relacionados
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series PKZM4 Motor-protective circuit-breaker
Catalog Number
132593
EAN
4015081295289
Product Length/Depth
160 mm
Product Height
165 mm
Product Width
55 mm
Product Weight
1.18 kg
Certifications
CSA-C22.2 No. 5-09
CSA Class No.: 1432-01
UL
CE
CSA File No.: 165628
UL File No.: E31593
UL 489
UL Category Control No.: DIVQ
VDE 0660
CSA
IEC/EN 60947-2
CSA Class No.: 1432-01
UL
CE
CSA File No.: 165628
UL File No.: E31593
UL 489
UL Category Control No.: DIVQ
VDE 0660
CSA
IEC/EN 60947-2
Catalog Notes
Not usable as a main switch
Model Code
PKZM4-32-CB
Características y Funciones
Actuator type
Turn button
Features
Complete device with protection unit
Functions
For protection of cables and conductors
Line and cable protection
Line and cable protection
Number of poles
Three-pole
General
Connection
Screw terminals
Lifespan, electrical
30,000 operations (at 400V, AC-3)
Lifespan, mechanical
30,000 Operations (Main conducting paths)
Mounting Method
DIN rail (top hat rail) mounting optional
Operating frequency
40 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
Motor protective circuit breaker
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Suitable for
Feeder and branch circuit as BCPD, (UL/CSA)
DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
≤ 0.25 %/K, residual error for T > 40°
-25 - 55 °C, Operating range
≤ 0.25 %/K, residual error for T > 40°
-25 - 55 °C, Operating range
Condiciones climáticas ambientales
Altitude
Max. 2000 m
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Secciones de conexión
Terminal capacity (flexible with ferrule AWG)
14 - 8
Terminal capacity (solid)
1 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
Terminal capacity (solid/stranded AWG)
14 - 6
Stripping length (main cable)
14 mm
Tightening torque
3.3 Nm, Screw terminals, Main cable
Especificaciones eléctricas
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
32 A
Rated operational voltage (Ue) - min
600 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
32 A
Clasificación de cortocircuito
Short-circuit current
60 kA DC, up to 250 V DC, Main conducting paths
Short-circuit current rating (UL 489 CSA 22.2-5.09)
65 kA, 480 Y/277 V, SCCR (UL/CSA)
22 kA, 600 Y/347 V, SCCR (UL/CSA)
22 kA, 600 Y/347 V, SCCR (UL/CSA)
Short-circuit release
± 20% tolerance, Trip blocks
496 A, Irm, Setting range max.
Basic device fixed 15.5 x Iu, Trip Blocks
496 A, Irm, Setting range max.
Basic device fixed 15.5 x Iu, Trip Blocks
Rated short-circuit breaking capacity Icu at 400 V AC
65 kA
Contactos
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Bloque de disparo
Overload release current setting - min
0 A
Overload release current setting - max
32 A
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
18 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
6 W
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Intensidad nominal permanente Iu (EF001389) | 32 A |
| Tensión nominal (EF003977) | 600 V |
| Corriente nominal de cortocircuito en la corriente de corte Icu a 50 Hz 400 V (EF007048) | 65 kA |
| Ajuste actual de liberación de sobrecarga (EF002336) | 0 A |
| Rango de ajuste de liberación retardada de cortocircuito a corto plazo (EF007129) | 0 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 0 A |
| Pérdida de potencia (EF005387) | 18 W |
| Construcción del dispositivo (EF008240) | Técnica integrada fija para dispositivo integrado |
| Protección de fallo a tierra integrada (EF007296) | No |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Apto para montaje en carril DIN (EF007250) | Sí |
| Montaje en rail DIN opcional (EF008904) | Sí |
| Número de contactos auxiliares normalmente cerrados (EF001377) | 0 |
| Número de contactos auxiliares normalmente abiertos (EF001376) | 0 |
| Número de contactos auxiliares como contacto de cambio (EF003531) | 0 |
| Con alarma activada (EF007006) | No |
| Con liberación de baja tensión integrada (EF001390) | No |
| Número de polos (EF001391) | 3 |
| Posición de la conexión para el circuito principal de tensión (EF006671) | Otros |
| Ejecución del elemento accionador (EF006976) | Botón giratorio (mando) |
| Aparato completo con dispositivo de protección (EF008906) | Sí |
| Accionamiento motorizado integrado (EF006697) | No |
| Accionamiento motorizado opcional (EF007386) | No |
| Grado de protección (IP) (EF005474) | IP20 |
