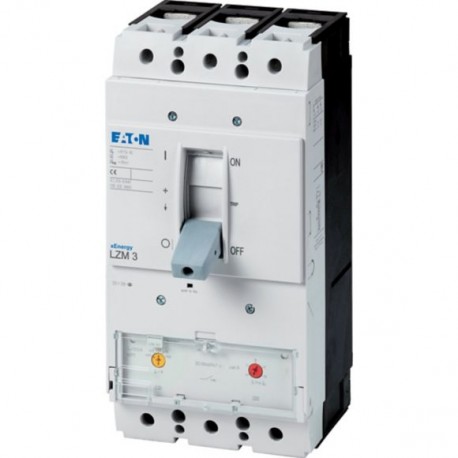

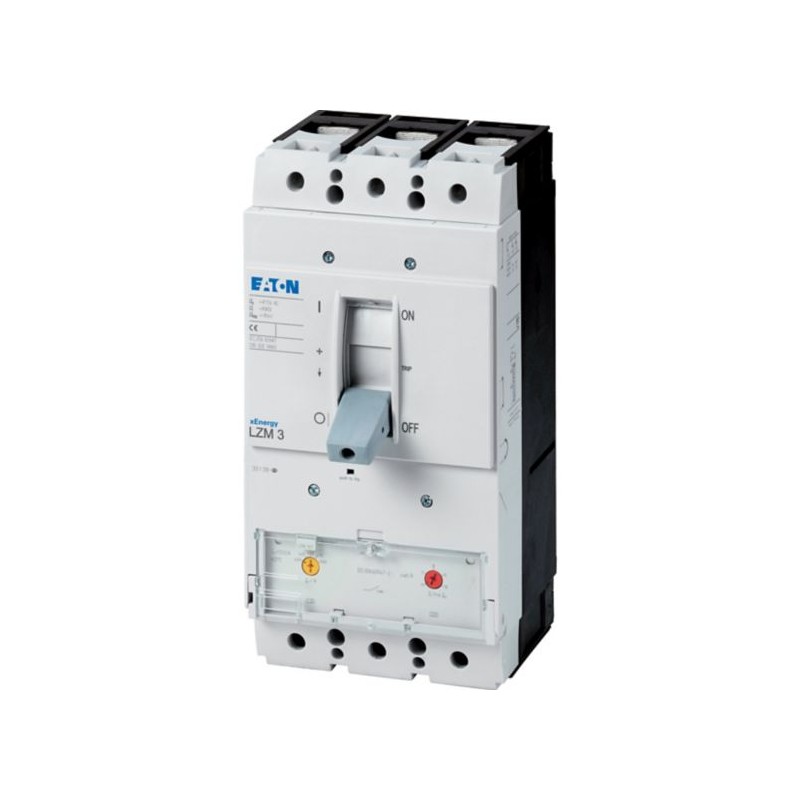

LZMN3-A400-I 111967 Y7-111967 EATON ELECTRIC Interruptor magnetotérmico LZM, 3P, 400A Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

LZMN3-A400-I 111967 Y7-111967 EATON ELECTRIC Interruptor magnetotérmico LZM, 3P, 400A

LZMN3-A400-I

111967

Y7-111967

EATON-MOELLER

Interruptor magnetotérmico LZM, 3P, 400A

Eaton Moeller series Power Defense - Molded Case Circuit Breaker. Circuit-breaker, 3 p, 400A, N, 3

Disyuntor, 3 p, 400A

Más detalles


Componentes industriales de baja tensión > Interruptor para protección de transformadores, generadores y sistemas

Interruptores Automáticos Caja Moldeada LZM

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $1,627.57
Precio unitario: $1,627.57
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number
111967
EAN
4015081115150
Product Length/Depth
166 mm
Product Height
275 mm
Product Width
140 mm
Product Weight
5.8 kg
Compliances
RoHS conform
Certifications
VDE 0660
IEC/EN 60947
IEC
Model Code
LZMN3-A400-I

Product specifications

Type
Circuit breaker
Special features
Application
Use in unearthed supply systems at 690 V
Amperage Rating
400 A
Voltage rating
690 V - 690 V
Circuit breaker frame type
LZM3
Features
Protection unit
Motor drive optional
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
3
Mounting Method
Fixed
Built-in device fixed built-in technique
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Equipment heat dissipation, current-dependent
72.48 W
Utilization category
A (IEC/EN 60947-2)
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
Degree of protection
IP20
In the area of the HMI devices: IP20 (basic protection type)
Direction of incoming supply
As required
Electrical connection type of main circuit
Screw connection
Lifespan, mechanical
15000 operations
Overvoltage category
III
Rated operational current
500 A (500 V DC-1, making and breaking capacity)
400 A (415 V AC-3, making and breaking capacity)
500 A (415 V AC-1, making and breaking capacity)
500 A (500 V DC-3, making and breaking capacity)
500 A (750 V DC-1, making and breaking capacity)
500 A (750 V DC-3, making and breaking capacity)
630 A (690 V AC-1, making and breaking capacity)
400 A (660-690 V AC-3, making and breaking capacity)
630 A (380/400 V AC-1, making and breaking capacity)
Degree of protection (IP), front side
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
Degree of protection (terminations)
IP00 (terminations, phase isolator and band terminal)
IP10 (tunnel terminal)
Number of poles
Three-pole
Lifespan, electrical
2000 operations at 690 V AC-3
2000 operations at 415 V AC-3
2000 operations at 500 V DC-3
5000 operations at 400 V AC-1
5000 operations at 500 V DC-1
5000 operations at 415 V AC-1
2000 operations at 400 V AC-3
2000 operations at 750 V DC-3
3000 operations at 690 V AC-1
5000 operations at 750 V DC-1
Functions
Photovoltaic applications
System and cable protection
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Position of connection for main current circuit
Front side
Rated operational current for specified heat dissipation (In)
400 A
Release system
Thermomagnetic release
Short-circuit total breaktime
< 10 ms
Rated short-time withstand current (t = 0.3 s)
3.3 kA
Rated short-time withstand current (t = 1 s)
3.3 kA
Short-circuit release non-delayed setting - max
4000 A
Short-circuit release non-delayed setting - min
2400 A
Terminal capacity (copper busbar)
M10 at rear-side screw connection
Terminal capacity (copper solid conductor/cable)
16 mm² - 185 mm² (1x) at tunnel terminal
Handle type
Rocker lever
Short delay current setting (Isd) - max
0 A
Short delay current setting (Isd) - min
0 A
Instantaneous current setting (Ii) - max
4000 A
Instantaneous current setting (Ii) - min
2400 A
Number of operations per hour - max
60
Overload current setting (Ir) - max
400 A
Overload current setting (Ir) - min
320 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
85 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
50 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
35 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
13 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
105 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
74 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
53 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
40 kA
Standard terminals
Screw terminal
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
187 kA
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated insulation voltage (Ui)
1000 V AC

ETIM for 111967 Interruptores de baja tensión (EC000228)
Característica Valor
Intensidad nominal permanente Iu (EF001389) 400 A
Tensión nominal (EF003977) 690 V
Corriente nominal de cortocircuito en la corriente de corte Icu a 50 Hz 400 V (EF007048) 50 kA
Ajuste actual de liberación de sobrecarga (EF002336) 320 A
Rango de ajuste de liberación retardada de cortocircuito a corto plazo (EF007129) 0 A
Rango de ajuste de liberación instantánea de cortocircuito (EF007131) 2400 A
Pérdida de potencia (EF005387) None W
Construcción del dispositivo (EF008240) Built-in device fixed built-in technique
Protección de fallo a tierra integrada (EF007296) false
Tipo de conexión del circuito de corriente principal (EF006819) Screw connection
Apto para montaje en carril DIN (EF007250) false
Montaje en rail DIN opcional (EF008904) false
Número de contactos auxiliares normalmente cerrados (EF001377) 0
Número de contactos auxiliares normalmente abiertos (EF001376) 0
Número de contactos auxiliares como contacto de cambio (EF003531) 0
Con alarma activada (EF007006) false
Con liberación de baja tensión integrada (EF001390) false
Número de polos (EF001391) 3
Posición de la conexión para el circuito principal de tensión (EF006671) Front side
Ejecución del elemento accionador (EF006976) Rocker lever
Aparato completo con dispositivo de protección (EF008906) true
Accionamiento motorizado integrado (EF006697) false
Accionamiento motorizado opcional (EF007386) true
Grado de protección (IP) (EF005474) IP20

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATÁLOGO EATON DISTRIBUCIÓN ENERGIA ES.pdf 32 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LZMN3-A400-I Y7-111967 111967 ES_111956.pdf 3 Mbytes LZMN3-A400-I Y7-111967 111967 ES_111956.pdf
